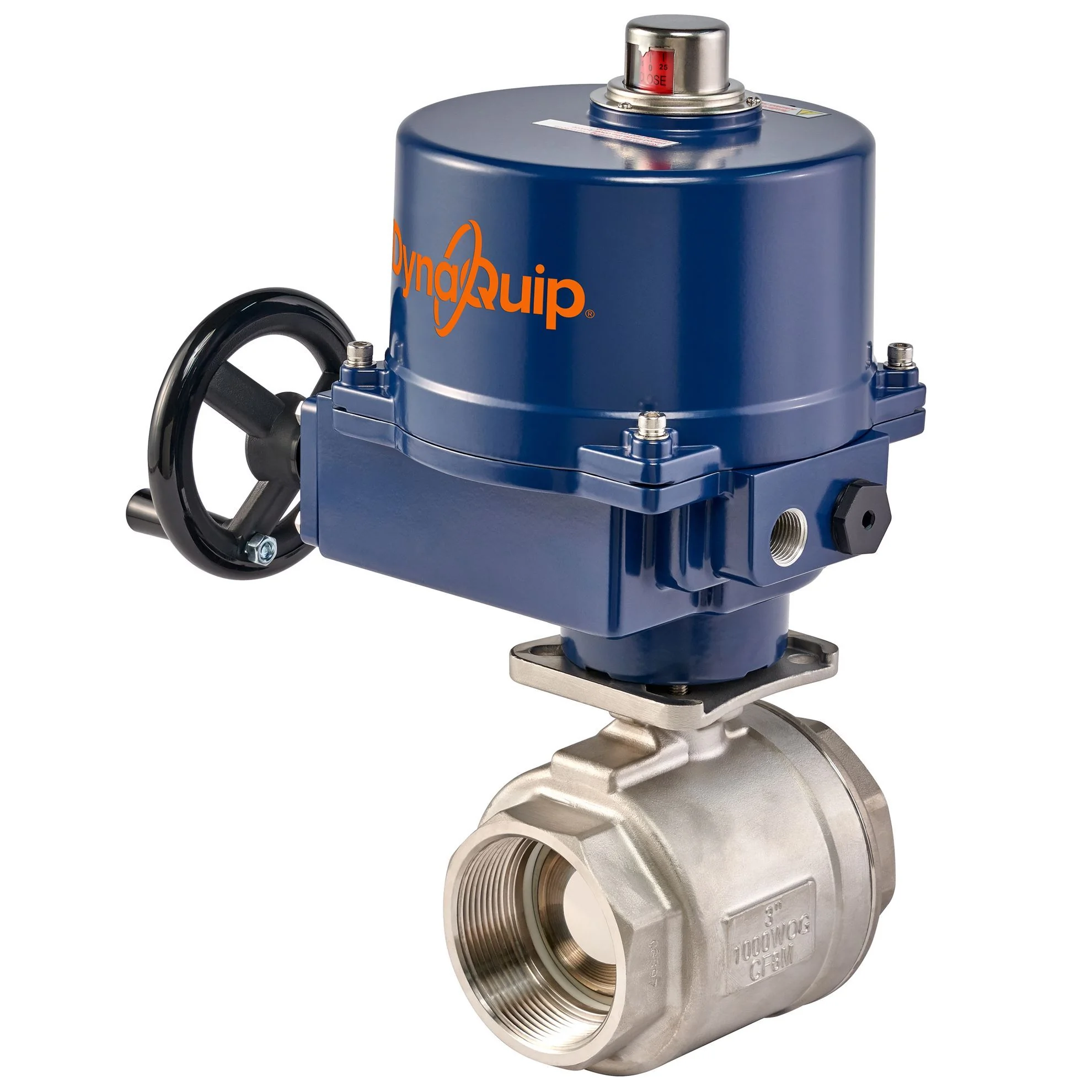

DYNAQUIP CONTROLS E2S2AAJE02 Automated Ball Valve, 3 Inch FNPT, 2 Way, Full Port, 6.44 Inch Overall Length
Get it by Thursday, Aug 20
13.00% off
€3,304.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Actuator Cycle Time-90° | 26 sec. |
| Actuator Duty Cycle | 50% |
| Actuator Features | Auxiliary Limit Switch, Manual Override, Position Indicator |
| Actuator Motor Type | Reversing |
| Actuator Operation | 90° |
| Actuator Output Shaft Material | 316 Stainless Steel |
| Actuator Series | MA13 Series |
| Ambient Temp. | -40°F to +150°F |
| Ball Material | Grade 316 |
| Ball Material Grade | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Actuated |
| Body Material | Stainless Steel |
| Coefficient Of Volume(cv) | 1150 |
| Connection | FNPT |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 3" |
| Connection Size-side 2 | 3" |
| Connection Type | FNPT x FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| Fail Safe Position | Fail Last |
| For Media | Compressed Air, Natural Gas, Oil |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Ip Rating | IP66 |
| Max. Actuator Ambient Temp. | 140°F |
| Max. Amps | 5A |
| Max. Media Temp. | 392°F |
| Max. Pressure | 1000 psi |
| Max. Pressure (cwp) | 1000 psi |
| Max. Pressure Differential | 300 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Pressure-steam | 150 psi |
| Max. Steam Pressure | 125 psi |
| Max. Water Pressure | 1000 psi |
| Media Temp. | -4°F to +392°F |
| Min. Actuator Ambient Temp. | 10°F |
| Min. Media Temp. | -4°F |
| Mount | Direct |
| Nema Enclosure Rating | NEMA 4X |
| No. Of Ports | 2 |
| Nominal Valve Size | 3" |
| Overall Length | 6.44" |
| Pipe Size | 3" |
| Port | Full |
| Rated For | 1000 psi CWP, 125 psi Steam |
| Seal Material | FKM, PTFE |
| Seals | Viton |
| Seat Material | PTFE, RPTFE |
| Stem Grade | Grade 316 |
| Stem Material | 316 Stainless Steel |
| Stem Type | Blowout Resistant |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | E2S |
| Valve Ways | 2-Way |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 22.48 |
| Ship height (cm) | 33.78 |
| Ship length (cm) | 46.48 |
| Ship width (cm) | 37.08 |
| HS code | 8481809025 |
| Country of Origin | US |
