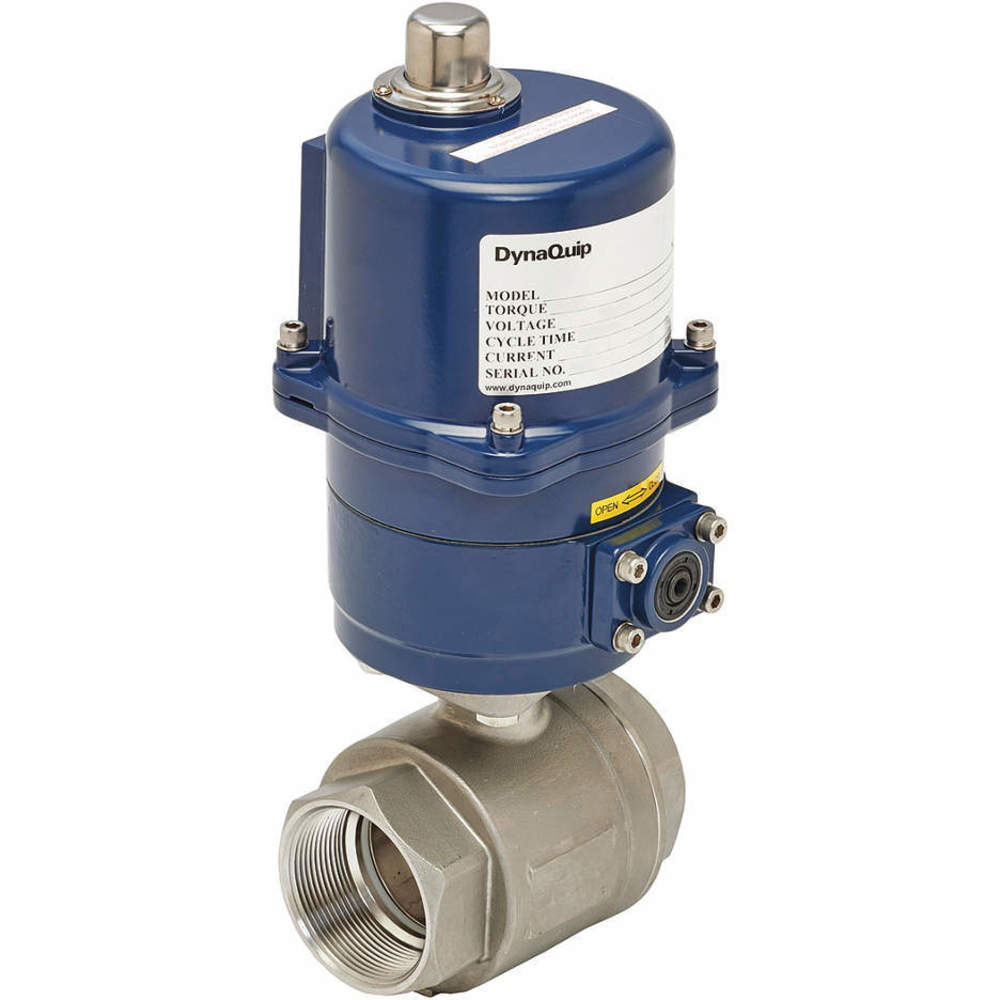

DYNAQUIP CONTROLS 191018B Electronic Ball Valve Stainless Steel 2 Inch
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€2,059.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Elect. Actuated Ball Valve |
| 3-a Compliance | Not Rated |
| Actuator Ambient Temperature - Maximum | 140°F |
| Actuator Ambient Temperature - Minimum | 10°F |
| Actuator Cycle Time - 90° | 27 sec. |
| Actuator Duty Cycle | 50% |
| Actuator Features | Auxiliary Limit Switch, Manual Override, Position Indicator |
| Actuator Motor Type | Reversing |
| Actuator Operation | 90° |
| Actuator Output Shaft Material | 316 Stainless Steel |
| Actuator Series | MA4 Series |
| Ambient Temp. Range | -40°F to +150°F |
| Ball Material | Grade 316 |
| Ball Material Grade | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Actuated |
| Body Material | Stainless Steel |
| Coefficient Of Volume | 486 |
| Connection | FNPT |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Fail Safe Position | Fail Last |
| For Media | Compressed Air, Natural Gas, Oil |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Ip Rating | IP66 |
| Manufacturer Warranty | 2 yrs. |
| Max. Media Temperature | 392°F |
| Max. Pressure | 1000 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 1000 psi |
| Max. Pressure (steam) | 150 psi |
| Max. Pressure Differential | 300 psi |
| Max. Steam Pressure | 125 psi |
| Max. Water Pressure | 1500 psi |
| Media Temperature Range | -4°F to +392°F |
| Min. Media Temperature | -4°F |
| Mount | Direct |
| Nominal Valve Size | 2" |
| Number Of Ports | 2 |
| Overall Length | 4.88" |
| Pipe Size | 2" |
| Port | Full |
| Rated For | 1500 psi CWP, 125 psi Steam |
| Rated For | 1500 psi CWP, 125 psi |
| Seal Material | FKM, PTFE |
| Seat Material | PTFE, RPTFE |
| Stem Grade | Grade 316 |
| Stem Material | 316 Stainless Steel |
| Stem Type | Blowout Resistant |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | E2S |
| Valve Ways | 2-Way |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 9.5 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 37.59 |
| Ship width (cm) | 25.15 |
| HS code | 8481809025 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Material | Ball Material | Ambient Temp. Range | Voltage | Max. Water Pressure | Rated For | Body Material | Port | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EVS27AJE01 | FKM, PTFE | Grade 316 | -22°F to +149°F | 115V AC | 1250 psi | 1250 psi, 125 psi | Stainless Steel | Full | €1,695.10 | |
 |
E3S28AJE07 | FKM, PTFE | Grade 316 | -22°F to +149°F | 115V AC | 1000 psi | - | Stainless Steel | Full | €2,397.68 | |
 |
EVS2AAJE13 | FKM, PTFE | Grade 316 | -22°F to +149°F | 115V AC | 800 psi | 800 psi CWP, 125 psi | Stainless Steel | Full | €4,913.53 | |
 |
E2S2AAJE02 | FKM, PTFE | Grade 316 | -40°F to +150°F | 115V AC | 1000 psi | - | Stainless Steel | Full | €4,192.27 | |
 |
E2S23AJE23H | FKM, PTFE | Grade 316 | -40°F to +150°F | 12V DC/24V AC/DC | 1500 psi | 1500 psi CWP, 125 psi | Stainless Steel | Full | €1,039.10 | |
|
E2S24AJE23H | FKM, PTFE | Grade 316 | -40°F to +150°F | 12V DC/24V AC/DC | 1500 psi | 1500 psi CWP, 125 psi | Stainless Steel | Full | €1,069.43 | |
|
E2S25AJE21H | FKM, PTFE | Grade 316 | -40°F to +150°F | 12V DC/24V AC/DC | 1500 psi | 1500 psi CWP, 125 psi | Stainless Steel | Full | €1,151.00 |
