Product Specifications:
| Item | Right Angle Vacuum Air Cut Off Tool |
| Air Consumption | 21 CFM |
| Air Inlet Connection Size | 3/8" |
| Air Inlet Gender | Male |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Arbor Hole Size | 3/8" |
| Average Cfm @ 15 Sec. Run Time | 5.25 CFM |
| Cut-off Wheel Orientation | Right Angle |
| Duty Rating | Heavy Duty |
| Exhaust | Rear |
| Exhaust Location | Rear |
| Exhaust Type | Extended Rear |
| Features | For Efficient Cutting With Dust And Debris Removal, Vacuum Cut Off Wheel Tool |
| Free Speed | 12000 RPM |
| Handle Material | Composite |
| Horsepower | 0.4 hp |
| Hose Inside Dia. | 3/8" |
| Housing Material | Composite |
| Hp | 2/5 hp |
| Kit Contents | (1) Bare Tool |
| Lever Type | Safety Lock |
| Max. Rpm | 12000 RPM |
| Max. Speed | 12000 RPM |
| Min. Hose | 3/8" |
| Min. Hose Size | 3/8" |
| Power Source | Air Powered |
| Reach | Standard Reach |
| Required Pressure | 90 psi |
| Sound Level | 84 dBA |
| Speed Control | Safety Lock Lever |
| Spindle Dia. | 3/8 |
| Spindle Diameter | 3/8" |
| Tool Height | 4 3/8" |
| Tool Style | Right Angle |
| Tool Weight | 2.4 lbs. |
| Vacuum Type | Vacuum |
| Variable Speed | No |
| Wheel Dia. | 3" |
Shipping Info:
| Ship weight (kg) | 1.41 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 27.31 |
| Ship width (cm) | 15.88 |
| HS code | 8467111040 |
| Country of Origin | US |
Product Details:

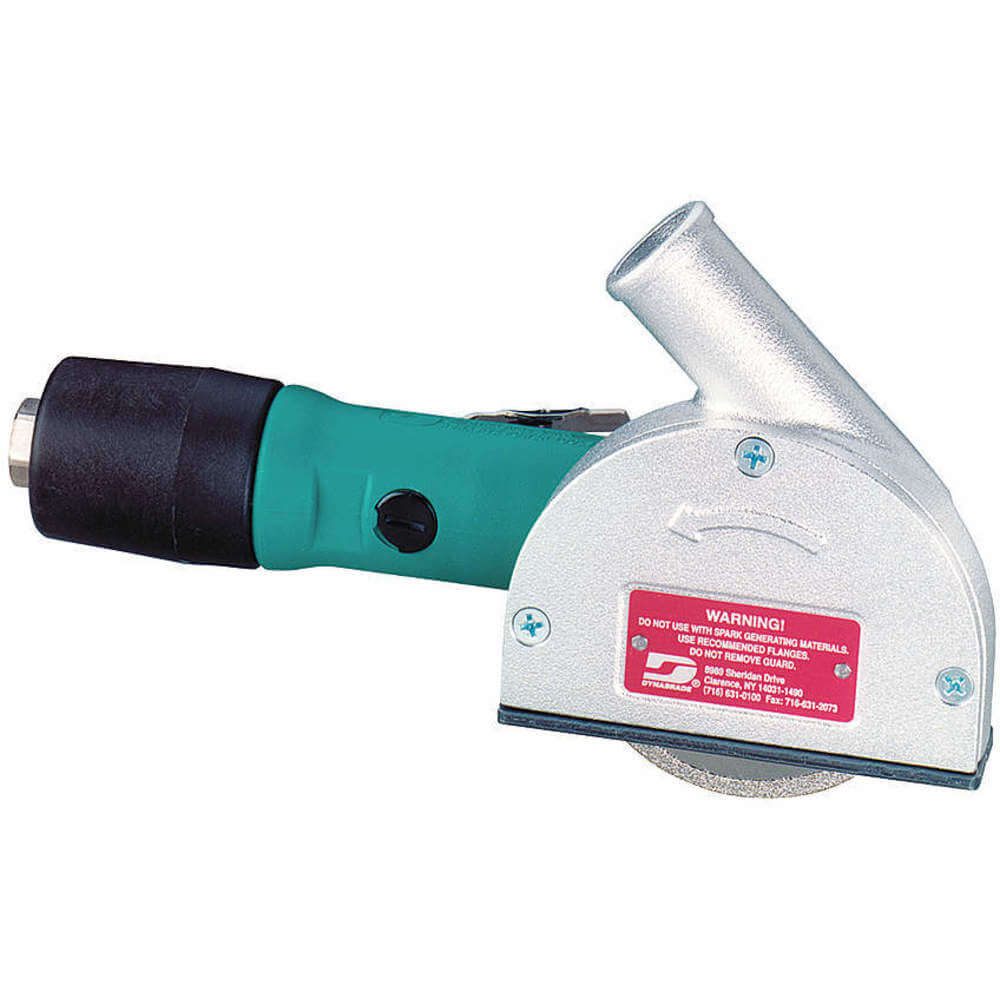

Dynabrade 52538 vacuum cut-off tool is suitable for cutting metals and other materials, such as fibreglass and composites with the help of abrasive discs or wheels.
Features:
- It features an adjustable wheel guard with a vacuum port that efficiently removes dust and debris, instantly.
- It utilises cut-off wheels on the side of the tool with the cutting edge at a right angle to accurately cut through long workpieces and larger pipes.
- It can also accommodate 3-inch diamond wheels to cut through masonry and tiles.
- This air-powered tool comes with a standard-length body design that gives it a reach of 6 to 11 inches for smooth operation in awkward spots.
- It also features a composite handle with a tight grip to control the tool with ease and comfort.
- It runs on compressed air and is lighter than corded cut-off tools to reduce operator fatigue during continuous use.
Frequently Asked Questions:
Q. What is a 'dual wick' lubrication system?
A. Dual wick lubrication system is used for saturating gears with oil for increased performance, extended service life, less friction and reduced downtime.
Q. What is the purpose of a safety lock in this right-angle cut-off tool?
A. The safety lock lever in this cut-off tool is used for preventing accidental throttle operation when not in use.
Q. What is the use of a wheel guard?
A. Dynabrade cut-off tool is equipped with a wheel guard that deflects sparks, debris and shattered wheel fragments away from the operator.
