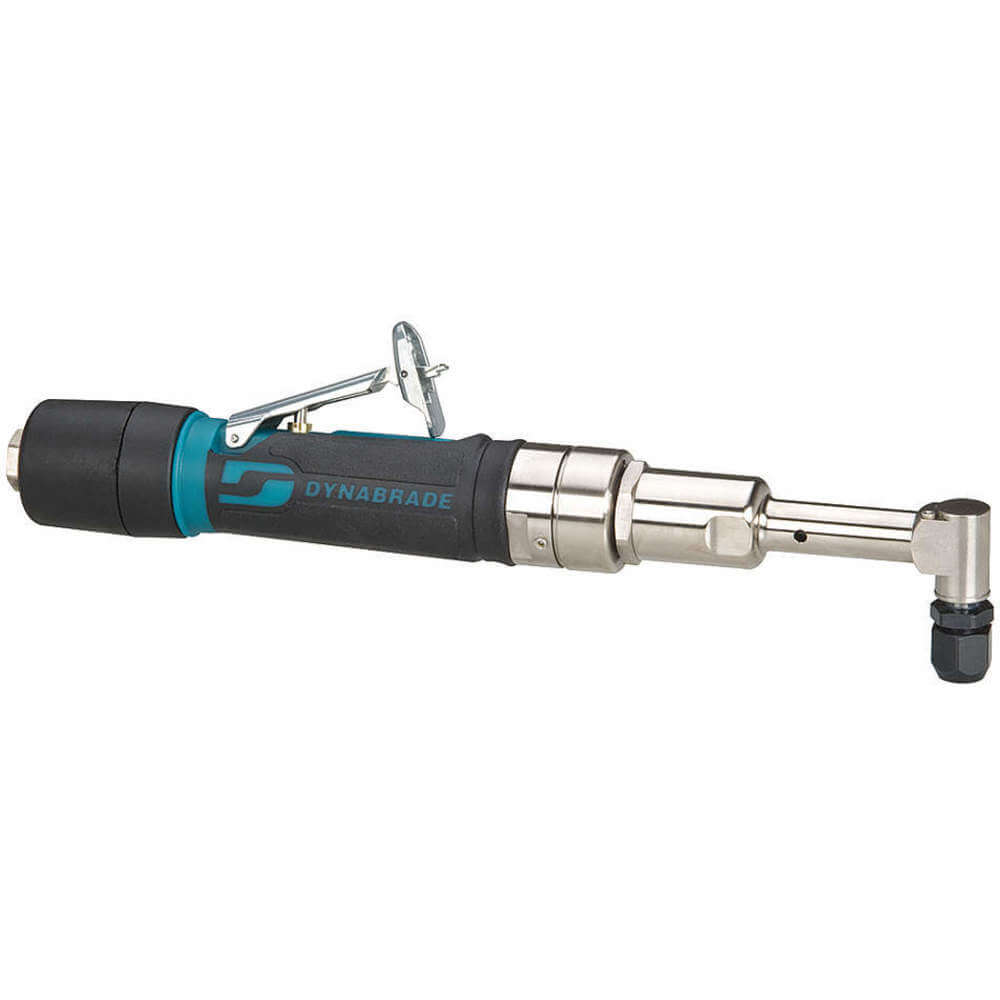

DYNABRADE 49420 Air Die Grinder Right Angle 3200rpm 0.4hp 26cfm
Item: AB8FMNModel: 49420Cross Ref: 25H855
7 In Stock
Ships within 2 days via
5.00% off
€2,309.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Die Grinder |
| Air Consumption | 26 CFM |
| Air Inlet | 1/4" NPT Female |
| Air Inlet Connection Size | 1/4" |
| Air Inlet Gender | Female |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Pressure | 90 psig |
| Anti-restart Technology | Yes |
| Anti-vibration Technology | Yes |
| Average Cfm @ 15 Sec. Run Time | 6.5 CFM |
| Cfm @ Full Load | 26 CFM |
| Collet Insert | 1/4" |
| Collet Size | 1/4" |
| Collet Type | 3 Piece |
| Duty | Heavy Duty |
| Duty Cycle | Heavy Duty |
| Exhaust Location | Front |
| Exhaust Type | Extended Rear |
| Features | Governor Controlled Motor, Lightweight Thermal-Insulated Housing |
| Free Speed | 3200 RPM |
| Grinder Orientation | Right Angle |
| Grinder Type | Right Angle |
| Handle Material | Composite |
| Horsepower | 0.4 hp |
| Hose Inside Dia. | 1/4" |
| Housing Material | Composite |
| Hp | 0.4 hp , 2/5 hp |
| Includes | Collet Assembly Mfr. No. 50055 |
| Kit Contents | (1) Bare Tool |
| Lock-off Switch | Yes |
| Max. Air Flow | 26 SCFM |
| Max. Rpm | 3200 RPM |
| Max. Speed | 25000 RPM |
| Min. Hose Size | 1/4" |
| Minimum Speed | 3200 RPM |
| Number Of Speed Settings | 1 |
| Orientation | Right Angle |
| Overall Length | 5 1/8" |
| Power Source | Air Powered |
| Required Pressure | 90 psi |
| Safety Features | Safety Lock Lever |
| Safety Stop Mechanisms | Safety-Lock Throttle Lever |
| Sound Level | 76 dBA |
| Spindle Gender | Female |
| Spindle Size | 1/4"-28 |
| Switch Type | Lever |
| Tether Style | Not Tether Capable |
| Throttle | Safety Lever |
| Tool Height | 2.1" |
| Tool Length | 12" |
| Tool Style | Angle Head , Straight |
| Tool Weight | 1.9 lbs. |
| Vacuum Type | Non Vacuum |
| Variable Speed | No |
| Wattage | 298 W |
Shipping Info:
| Ship weight (kg) | 1.4 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 13.02 |
| Ship width (cm) | 13.97 |
| HS code | 8467111040 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Max. Speed | Overall Length | Air Inlet | Collet Size | Exhaust Location | Min. Hose Size | Average Cfm @ 15 Sec. Run Time | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
54363 | 7/10 hp | 18000 RPM | 8 3/4" | 3/8" NPT Female | 1/4", 6 mm | Rear | 3/8" | 10.25 CFM | €1,822.59 |
