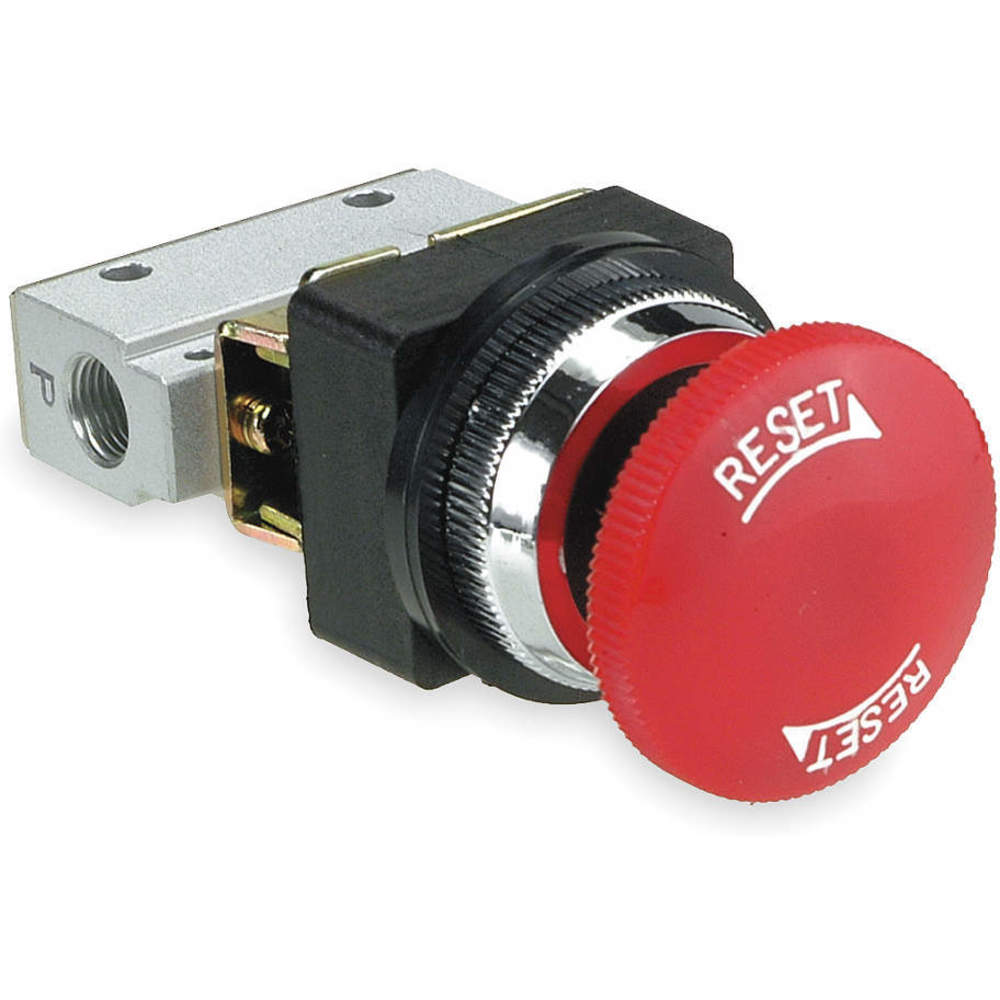

ARO M291HS-15 Manual Air Control Valve, MaxAir, Three-Way / Two-Position, Button, Red, 8 scfm Flow Rate
Item: AD2CXNModel: M291HS-15Cross Ref: 3NB10
7 In Stock
Ships within 2 days via
10.00% off
€123.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuator Color | Red |
| Actuator Type | Button |
| Actuator/return | Button/Spring With Detent |
| Body Material | Aluminum |
| Body Style | Panel Mounted |
| Cfm | 8 CFM |
| Coefficient Of Volume | 0.2 |
| Connection | NPT |
| Exhaust Port Connection Type | Unthreaded |
| Fail Position | Closed |
| Flow Rate - Maximum | 8 SCFM |
| For Media | Compressed Air |
| Max. Pressure | 150 psi |
| Normally Open/normally Closed | Normally Closed |
| Number Of Ports | 2 |
| Number Of Positions | 2 |
| Number Of Ways | 3 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 0 psi |
| Operating Temperature - Maximum | 160°F |
| Operating Temperature - Minimum | 32°F |
| Overall Height | 3 7/16" |
| Overall Length | 1 3/4" |
| Overall Width | 1 9/16" |
| Pipe Size | 1/8" |
| Product Type | Manual Air Control Valve |
| Return Action | Detent |
| Series | MAXAIR Series |
| Temp. Range | +32°F to +160°F |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Closed |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 1/8" |
| Valve Port Connection Type | NPT |
| Valve Type | Spool |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 8.73 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 3.97 |
| HS code | 8481809050 |
| Country of Origin | TW |
Product Variants
| Product | Model | Coefficient Of Volume | Overall Length | Overall Width | Body Style | Pipe Size | Overall Height | Voltage | Cfm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M252HS-10 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 7/8" | - | 26 CFM | €148.67 | |
 |
M252HS-15 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 5" | - | 26 CFM | €130.92 | |
 |
M252HS-11 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 3/8" | - | 26 CFM | €125.18 | |
 |
M252LS-10 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 15/16" | - | 26 CFM | €136.83 | |
 |
M252LS-11 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 5 1/16" | - | 26 CFM | €145.70 | |
|
M212HS-10 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 3/4" | - | 26 CFM | €127.41 | |
 |
M212HS-11 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 3/4" | - | 26 CFM | €248.90 |
