FREE delivery on orders over €150

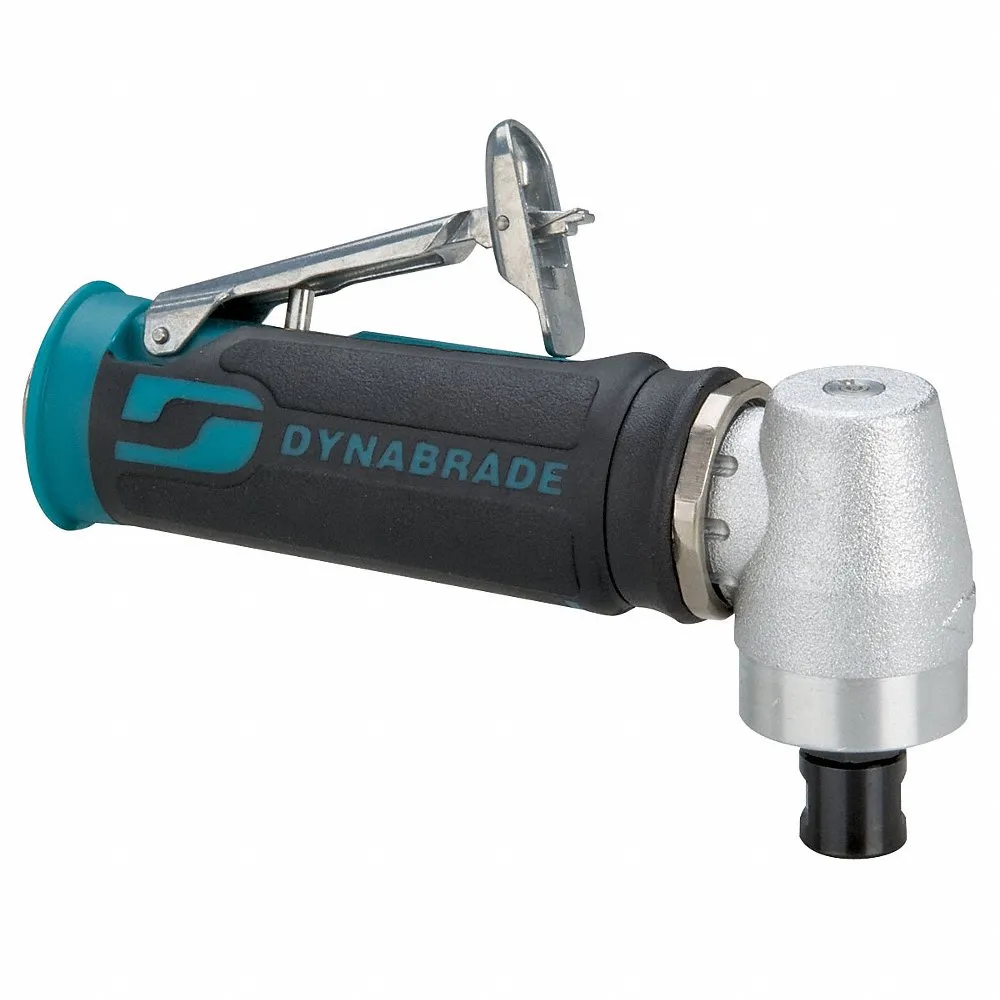

DYNABRADE 47801 Right Angle Die Grinder, 0.4 HP, 15000 RPM Max. Speed, 6 Inch Overall Lg
Item: CW4XTZModel: 47801Cross Ref: 28PW53
7 In Stock
Ships within 2 days via
5.00% off
€1,148.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Air Consumption | 25 CFM |
| Air Inlet | 1/4" NPT Female |
| Air Inlet Size | 1/4" |
| Air Inlet Thread | 1/4" |
| Air Inlet Thread Type | NPT |
| Air Inlet Type | NPT |
| Air Pressure | 90 psig |
| Anti-vibration Technology | Yes |
| Bearing Type | Needle |
| Collet Insert | 1/4", 6 mm |
| Collet Size | 1/4", 6 mm |
| Collet Type | 3 Piece |
| Exhaust Location | Front |
| Exhaust Type | Front |
| Features | Dual Wick Lubrication System, Governor-Controlled Motor, Pinion Piloted On Rotor |
| Grinder Orientation | Right Angle |
| Grinder Type | Right Angle |
| Hose Inside Dia. | 1/4" |
| Housing Material | Composite |
| Hp | 0.4 hp |
| Included | 1/4" And 6mm Collet Inserts |
| Max. Airflow | 25 SCFM |
| Max. Airflow Scfm | 25 SCFM |
| Max. Speed | 15000 RPM |
| Min. Hose Size | 1/4" |
| No. Of Speed Settings | 1 |
| Orientation | Right Angle |
| Overall Length | 6" |
| Power Source | Air Powered |
| Quantity Per Box | 1 |
| Sound Level | 84 dBA |
| Throttle Type | Safety Lever |
| Tool Height | 2.9" |
| Tool Length | 6" |
| Tool Style | Right Angle |
| Tool Weight | 1 lbs. |
| Vacuum Type | Non Vacuum |
| Watts | 298 W |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Power Source | Air Inlet | Air Pressure | Tool Length | Max. Airflow | Exhaust Location | Tool Weight | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

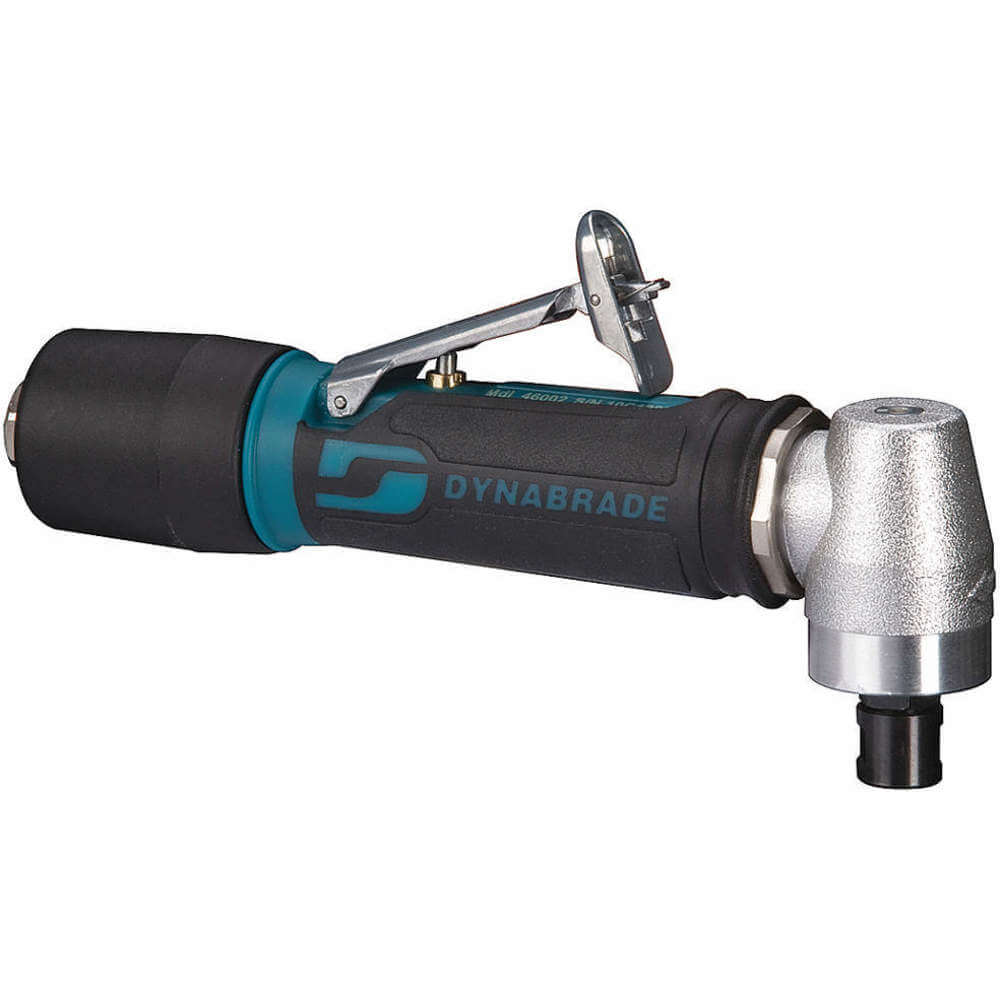

46000 | 2/5 hp | Air Powered | 3/8" NPT Female | 90 psig | 8" | 28 SCFM | Rear | 1.2 lbs. | €1,289.31 | |
|
46001 | 2/5 hp | Air Powered | 1/4" NPT Female | 90 psig | 8" | 26 SCFM | Rear | 1.2 lbs. | €1,448.02 | |
|
46002 | 2/5 hp | Air Powered | 1/4" NPT Female | 90 psig | 8" | 26 SCFM | Rear | 1.2 lbs. | €1,349.16 | |
 |
48316 | 2/5 hp | Air Powered | 1/4" NPT Female | 90 psig | 6.5" | 26 SCFM | Front | 1 lbs. | €1,221.35 | |
 |

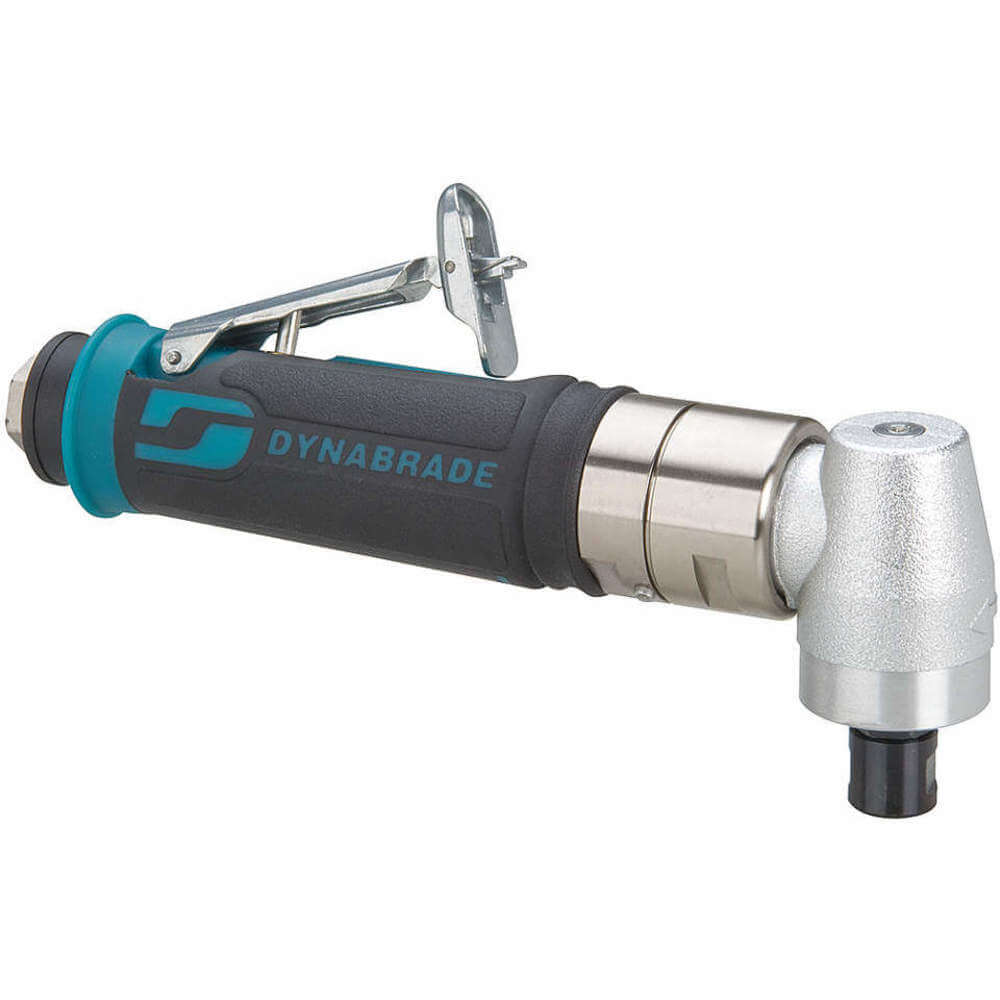

49425 | 2/5 hp | Air Powered | 1/4" NPT Female | 90 psig | 7.7" | 24 SCFM | Rear | 1.5 lbs. | €1,685.39 | |
 |

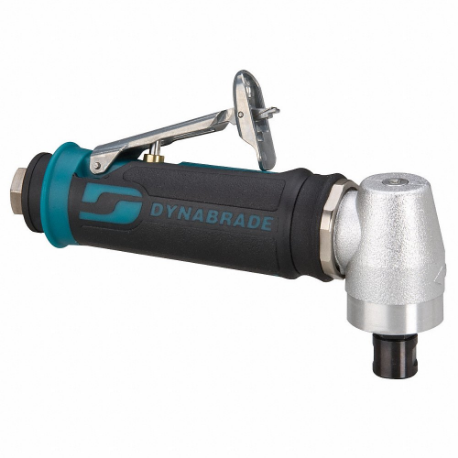

48317 | 2/5 hp | Air Power | 1/4" NPT Female | 90 psi | 6.5" | 26 SCFM | Rear | 1 lbs. | €1,257.29 | |
 |

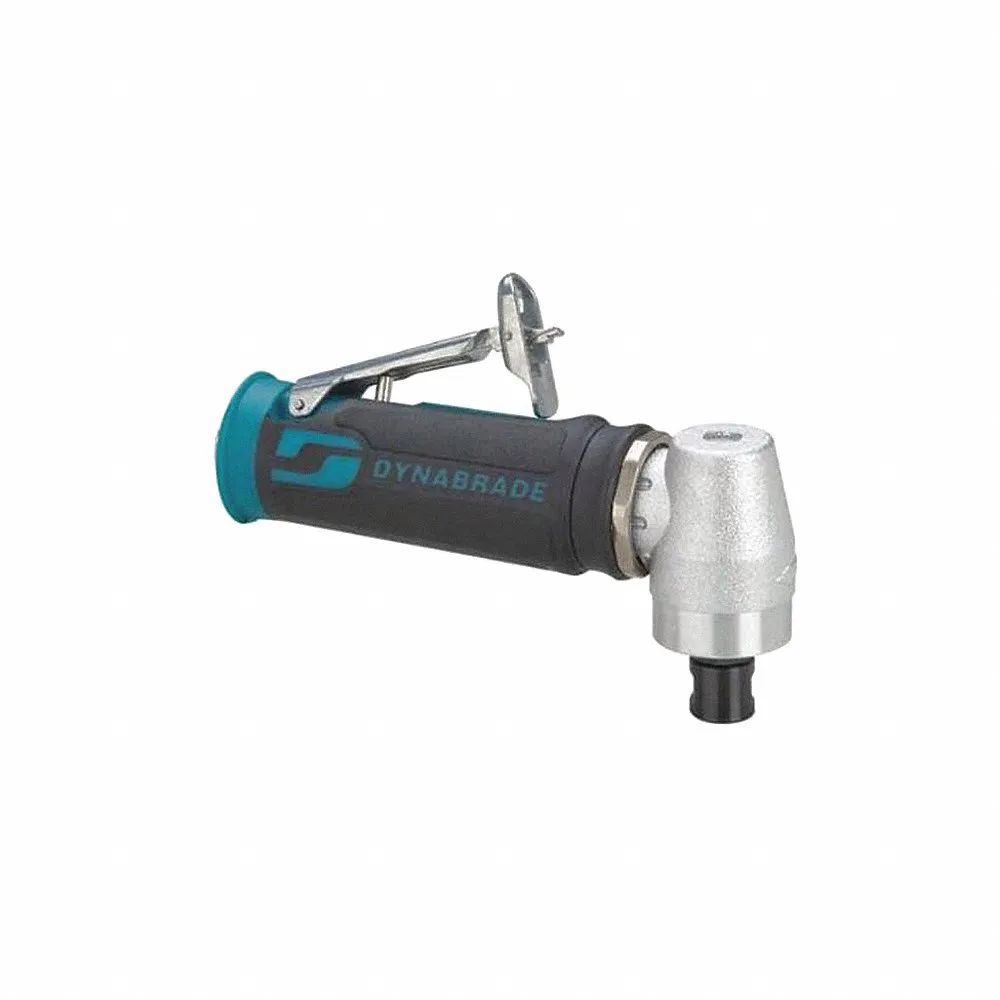

47802 | 0.4 hp | Air Powered | 1/4" NPT Female | 90 psig | 6" | 25 SCFM | Front | 1 lbs. | €1,268.52 |
