DRANETZ

DRANETZ HDPQ-XAFLEX3KPKG Power Quality Analyzer Kit 3000A HDPQ Xplorer

Item: AH3QHRModel: HDPQ-XAFLEX3KPKGCross Ref: 32ZN35

Check Availability

In Stock

Get it by Wednesday, Dec 17

~~€21,203.50~~

10.00% off

€19,083.15 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Power Quality Analyzer Kit
Ac Magnitude Calculation	True RMS
Ac Response	True RMS
Amps Channels	4
Calibration Certificate	Included
Calibration Frequency	16/25/50/60 Hz
Cat Safety Rating	Cat Iii 1000V, Cat Iv 600V
Communication Protocol	Ethernet, Optional Bluetooth, Usb, Vnc Remote Control, Wi-Fi
Crest Factor	I=3, V=2
Current Accuracy	-0.1% to +0.1%
Current Accuracy	+/-0.1%
Current Channels	4
Data Logger	Yes
Data Logging	Yes
Digital Memory Capacity	4 Gigabytes
Display	Color LCD Touch Screen
Display Resolution	800 px x 480 px
Display Screen Type	LCD Touchscreen
Display Size	7"
Display Type	Digital
For Phase	4
Frequency Rating	16-25/41-69 Hz
Harmonic Capture	127TH, 63RD
Includes	(4) Black 25 Cm Stackable Jumpers, (4) Black Alligator Clips, (4) White Alligator Clips, (8) 6 ft. Measurement Cables: Red, Yellow, Blue, Gray, (4) White, Ac Adapter 118317-G1, Dran-View 7 Dv7E-Px, Dranflex3000Xlb24 Single Phase Flex Probe, Dranflex3003Xlb24 Three Phase Flex Probe, Scc-Hdpq Soft Carry Case, Voltage Cable Set 118970-G1
Includes Software	Yes
Ip Rating	IP65
Manufacturer Warranty Length	3 yrs.
Max. Ac Amps	3000A
Max. Ac Voltage	1000
Max. Dc Voltage	1000V
Max. Va	100TVA
Max. Watts	100TW
Max. Watts	100 W
Maximum Ac Current Measurement	3000A
Maximum Ac Voltage Measured	1000V
Maximum Ac Voltage Measurement	1000V AC
Maximum Dc Voltage Measurement	1000V
Maximum Operating Temperature	122°F
Minimum Ac Voltage Measured	40V
Minimum Dc Voltage Measured	40V
Minimum Operating Temperature	32°F
Peak Capture	Yes
Phase	4
Power Factor	-1 to 0 to +1
Power Source	AC Adapter, Battery
Sampling Rate	512 S/C
Storage	4 GB
Testing Functions	Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage
Tool Height	2.8"
Tool Length	10"
Tool Width	8"
Transient Duration	32 ms
Voltage Accuracy	+/-0.1%
Voltage Accuracy	-0.1% to +0.1%
Voltage Channels	4

Shipping Info:

Ship weight (kg)	8.08
Ship height (cm)	42.16
Ship length (cm)	47.75
Ship width (cm)	38.86
Country of Origin	US

Product Details:

Kit Current Capability : 3 to 3000A
Display Resolution : 800 x 480
Harmonic Capture Range : 127/63
Min. Transient Duration : 32 mS
Crest Factor : V=2, I=3
Peak Capture : Yes

Product Variants

Model	Power Source	Maximum Ac Current Measurement	Sampling Rate	Voltage Accuracy	Harmonic Capture	Maximum Volt-amps	Transient Duration	Power Factor	Price

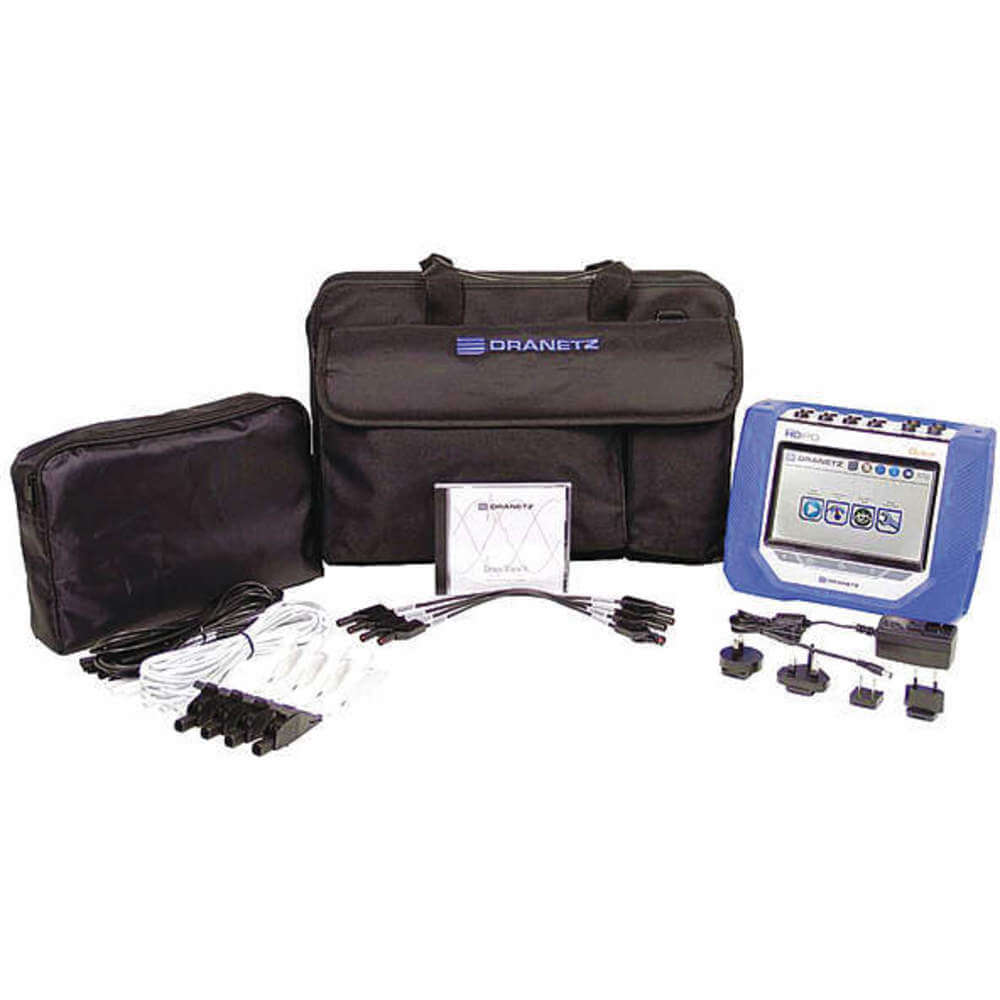

HDPQ-GAPKG	AC Adapter, Battery	-	512 S/C	-0.1% to +0.1%	63RD	100000000 mV/A	32 ms	-1 to 0 to +1	€10,461.12
HDPQ-XAPKG	AC Adapter	-	512 S/C, 1 Mhz	-0.5% to +0.5%	63RD	100000000 mV/A	1 ms	0 to 1	€17,725.11

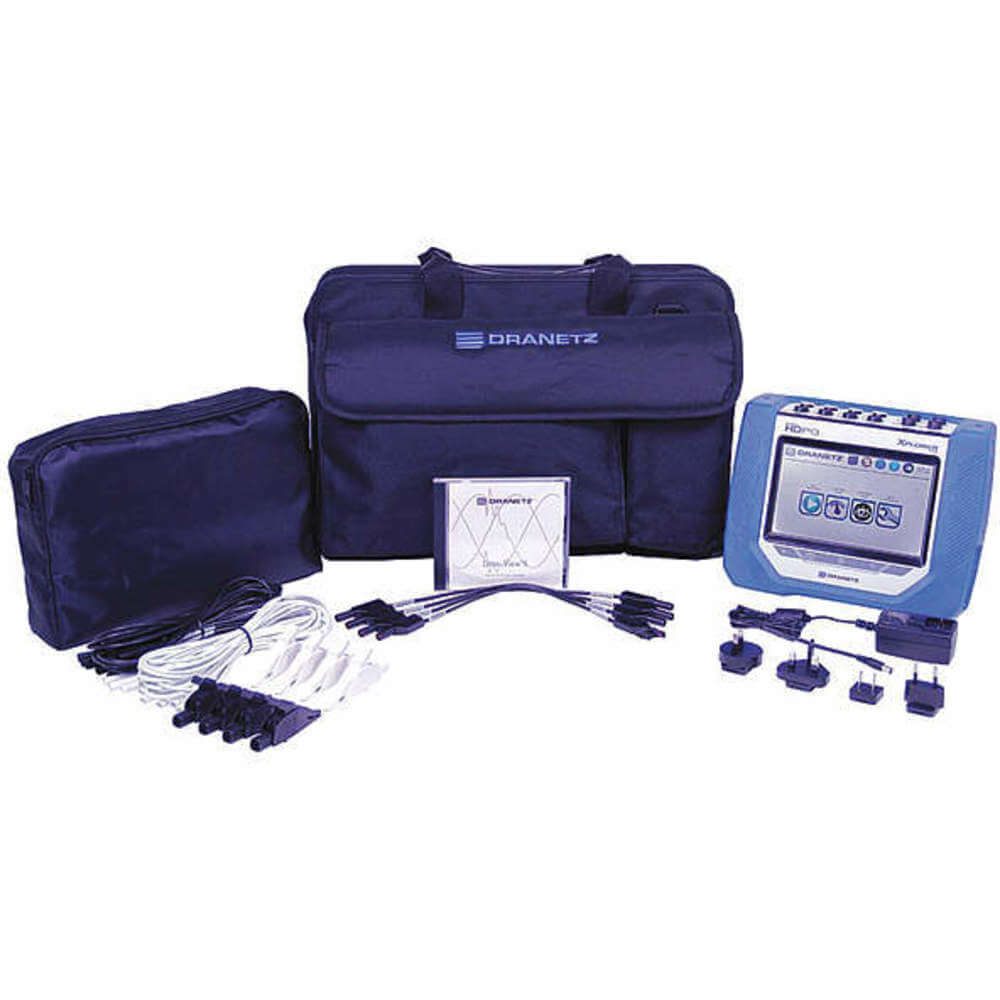

HDPQ-X4APKG	AC Adapter	-	512 S/C, 1 Mhz	-0.1% to +0.1%	127TH, 63RD	100000000 mV/A	1 ms	0 to 1	€26,713.63
HDPQ-GA10PKG	AC Adapter, Battery	10	512 S/C	-0.1% to +0.1%	127TH, 63RD	100000000 mV/A	32 ms	-1 to 0 to +1	€11,530.83
HDPQ-GA500PKG	-	500A	512 S/C	-0.1% to +0.1%	-	100TVA	-	0 to 1	€11,530.83
HDPQ-GA550PKG	AC Adapter, Battery	100A	512 S/C	-0.1% to +0.1%	63RD	100000000 mV/A	32 ms	-1 to 0 to +1	€11,887.44
HDPQ-GAFLEX3KPKG	AC Adapter, Battery	3000A	512 S/C	-0.1% to +0.1%	127TH, 63RD	100000000 mV/A	32 ms	-	€12,373.91
