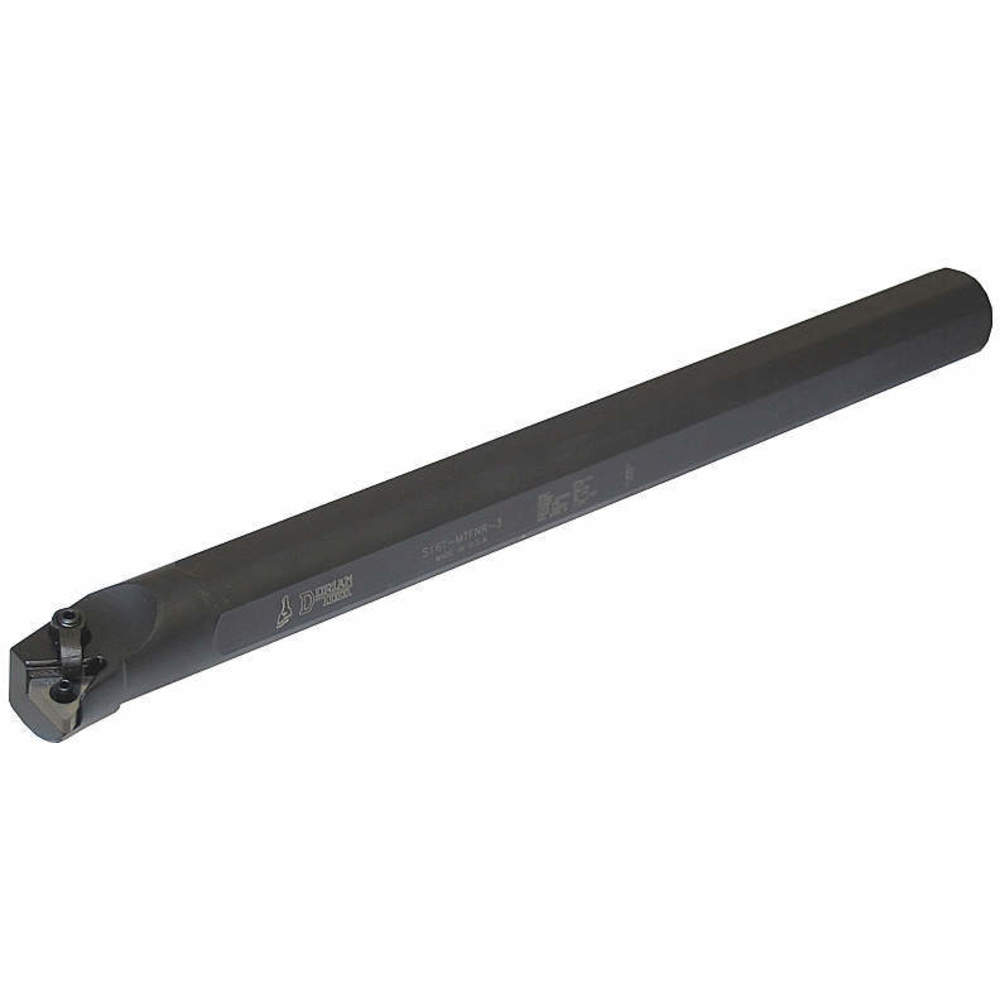

DORIAN 55174 Boring Bar Negative Steel Round Tnmg 432
Item: AG3UGEModel: 55174Cross Ref: 33VD84
7 In Stock
Ships within 2 days via
10.00% off
€430.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Boring Bar |
| Ansi Code | S24U-MTFNR-4 |
| Center To Cutting Tip | 57/64" |
| Compatible Hardware | CL-9 Clamp, ITSN-433 Seat, NL-46 Lock Pin, S-46 Optional Seat Screw, XNS-59 Clamp Screw |
| Cutting Application | Boring |
| Cutting Direction | Right Hand |
| Head Material | Steel |
| Inscribed Circle | 1/2" |
| Insert Clearance Angle | 0° |
| Insert Holding Type | Clamp And Lock Pin |
| Insert Inscribed Circle | 1/2" |
| Insert Shape | Triangle |
| Insert Size | 432 |
| Insert Style | Tnm |
| Insert Thickness | 0.187" |
| Iso Number | S24U-MTFNR-4 |
| Lead Angle | 0° |
| Material | Steel |
| Max. Depth | 6" |
| Min. Bore | 2.06" |
| Min. Bore Dia. | 2.06" |
| Number Of Inserts | 1 |
| Overall Length | 14" |
| Rake | Negative |
| Shank | Round |
| Shank Dia. | 1 1/2" |
| Shank Material | High Speed Steel |
| Shank Shape | Round |
| Shim Screw | NL-46 |
| Side Cutting Edge Angle | 0° |
| Style | Negative |
| Type | Standard Steel |
| Width Offset | 0.89" |
Shipping Info:
| Ship weight (kg) | 3.02 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 5.08 |
| HS code | 7318190000 |
| Country of Origin | US |
Product Variants
| Model | Type | Shank Dia. | Cutting Direction | Center To Cutting Tip | Overall Length | Min. Bore | Width Offset | Inscribed Circle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| S12S-MCLNR-4 | Standard Steel | 3/4" | Right Hand | 1/2" | 10" | 1" | 1/2" | 1/2" | €323.17 | |
| S12S-MCLNL-4 | Standard Steel | 3/4" | Left Hand | 1/2" | 10" | 1" | 1/2" | 1/2" | €333.70 | |
| S16T-MCLNR-4 | Standard Steel | 1" | Right Hand | 41/64" | 12" | 1 7/25" | 16/25" | 1/2" | €424.02 | |
| S16T-MCLNL-4 | Standard Steel | 1" | Left Hand | 41/64" | 12" | 1 7/25" | 16/25" | 1/2" | €449.05 | |
| S20U-MCLNR-4 | Standard Steel | 1 1/4" | Right Hand | 0.765" | 14" | 1.53" | 0.765" | 1/2" | €433.38 | |
| S20U-MCLNL-4 | Standard Steel | 1 1/4" | Left Hand | 0.765" | 14" | 1.53" | - | 1/2" | €447.54 | |
| S24U-MCLNR-4 | Standard Steel | 1 1/2" | Right Hand | 57/64" | 14" | 1.78" | 0.89" | 1/2" | €482.29 |
