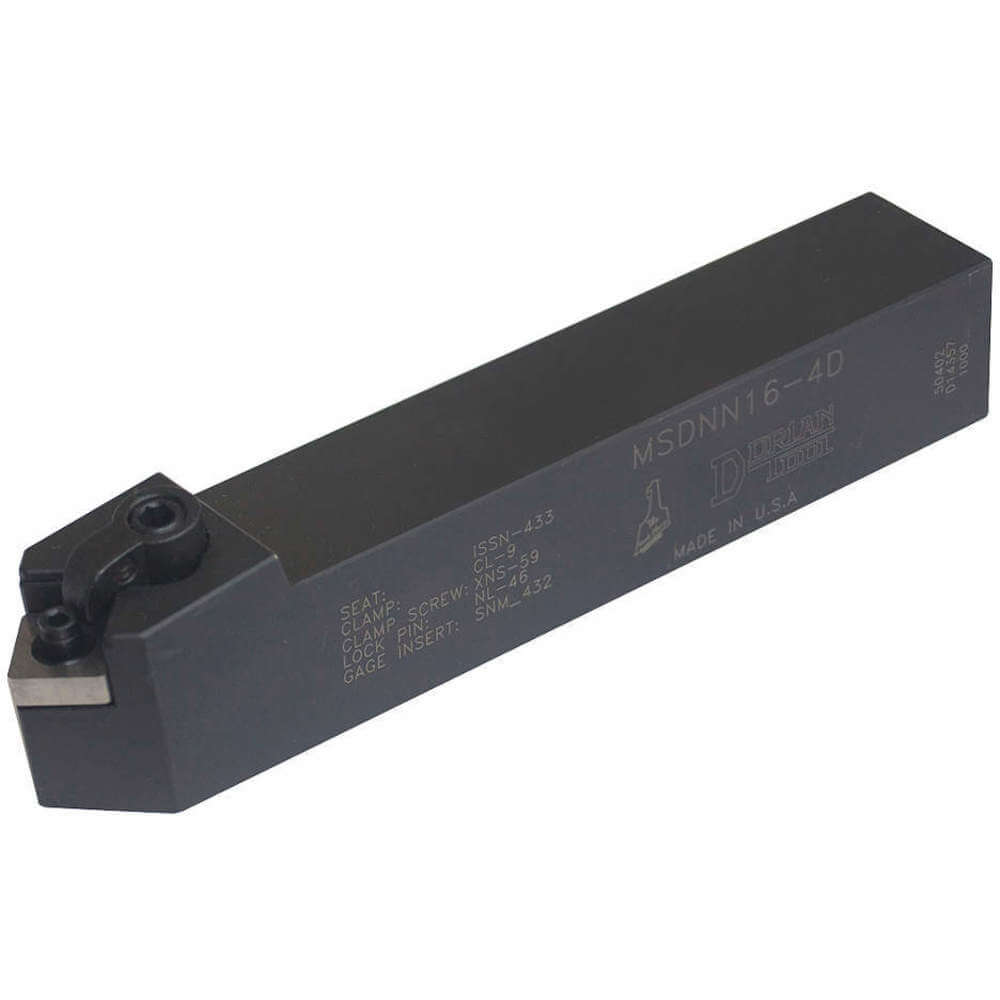

DORIAN 50402 Turning Toolholder Square Right SNMG-432
Item: AH3YVKModel: 50402Cross Ref: 33VD89
7 In Stock
Ships within 2 days via
10.00% off
€105.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Toolholder |
| Ansi Code | MSDNN16-4D |
| Compatible Hardware | Clamp CL-9, Clamp Screw XNS-59, Lock Pin NL-46, Optional Seat Screw S-46, Seat ISSN-433 |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Type | Indexable Carbide |
| Cutting Height | 1" |
| Grade | Grade 4140 |
| Head Length | 1 3/8" |
| Insert Clearance Angle | 0° |
| Insert Holding Type | Clamp And Lock Pin |
| Insert Inscribed Circle | 1/2" |
| Insert Shape | Square |
| Insert Size | 0.5 |
| Insert Style | RP_SNM |
| Insert Thickness | 0.187" |
| Lock | Multi-Lock |
| Locking Pin | NL-46 |
| Nomenclature | ANSI |
| Number Of Inserts Required | 1 |
| Offset Shank | No |
| Perpendicular Holder | No |
| Rake | Negative |
| Rake Angle | 7 |
| Rake Angle | 7° |
| Shank | Square |
| Shank Dia. | 1" |
| Shank Height | 1" |
| Shank Length | 6" |
| Shank Width | 1" |
| Side Cutting Edge Angle | 45° |
| Style | Negative |
| Toolholder Style | MSDN |
| Type | Square Shank |
Shipping Info:
| Ship weight (kg) | 0.79 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 3.81 |
| HS code | 7318190000 |
| Country of Origin | US |
Product Details:
- Inscribed Circle (In.) : 0.500
Product Variants
| Model | Cutting Direction | Overall Length | Insert Holding Type | Type | Shank Height | Shank Width | Rake Angle | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MCKNR12-4B | Right Hand | 4 1/2" | Clamp And Lock Pin | CNMG Holder | 3/4" | 3/4" | 7° | MCKNR12-4B | €135.92 | |
| MCKNR16-4C | Right Hand | 5" | Clamp And Lock Pin | CNMG Holder | 1" | 1" | 7° | MCKNR16-4C | €150.62 | |
| MCKNR16-4D | Right Hand | 6" | Clamp And Lock Pin | CNMG Holder | 1" | 1" | 7° | MCKNR16-4D | €150.62 | |
| MCKNL16-4D | Left Hand | 6" | - | CNMG Holder | 1" | 1" | 7° | MCKNL16-4D | €150.62 | |
| MCKNR20-4D | Right Hand | 6" | Clamp And Lock Pin | CNMG Holder | 1 1/4" | 1 1/4" | 7° | MCKNR20-4D | €159.20 | |
| MCKNL20-4D | Left Hand | 6" | - | CNMG Holder | 1 1/4" | 1 1/4" | 7° | MCKNL20-4D | €165.44 | |
| MCKNR20-5D | Right Hand | 6" | Clamp And Lock Pin | CNMG Holder | 1 1/4" | 1 1/4" | 7° | MCKNR20-5D | €198.55 |
