DOLPHIN COMPONENTS CORP DC-100-P Insul Displ Connector Dry Envelope White
Item: AD8GPYModel: DC-100-PCross Ref: 4KEC8
7 In Stock
Ships within 2 days via
5.00% off
€19.10 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insulation Disp. Connector |
| Color | White |
| Compatible Installation Tool Model Number | Dc-4141, Dc-500F |
| Connector Type | Run Tap |
| Contact Finish | Nickel Plated |
| Contact Material | Copper |
| Crimping Tool | 4KEC3, 4KEC4 |
| Fill Material | No Fill |
| Flame Retardant | Yes |
| Insulation Material | PVC |
| Material | PVC Tubing |
| Max. Insulation Dia. | 0.194" |
| Max. Insulation Dia. | 0.194" x 0.110" |
| Max. Operating Temp. | 475°F |
| Max. Run Conductors | 2 |
| Max. Run Wire Size | 16 AWG |
| Max. Tap Conductors | 2 |
| Max. Tap Wire Size | 16 AWG |
| Max. Temp. | -40°F to +221°F |
| Max. Voltage | 300V |
| Min. Operating Temp. | -60°F |
| Min. Run Wire Size | 26 AWG |
| Min. Tap Wire Size | 26 AWG |
| No. Of Ports | 1 |
| Rohs Compliant | Yes |
| Run Wire Size Range | 26 AWG to 16 AWG |
| Tap Wire Size Range | 26 AWG to 16 AWG |
| Tubing Material | PVC |
| Type | Dry Environment |
| Wire | 26 AWG to 16 AWG |
| Wire Type | Electrical, Telecommunications |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 17.02 |
| Ship length (cm) | 1.27 |
| Ship width (cm) | 12.7 |
| HS code | 8536904000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Color | Fill Material | Max. Insulation Dia. | No. Of Ports | Insulation Material | Max. Voltage | Max. Tap Wire Size | Min. Tap Wire Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

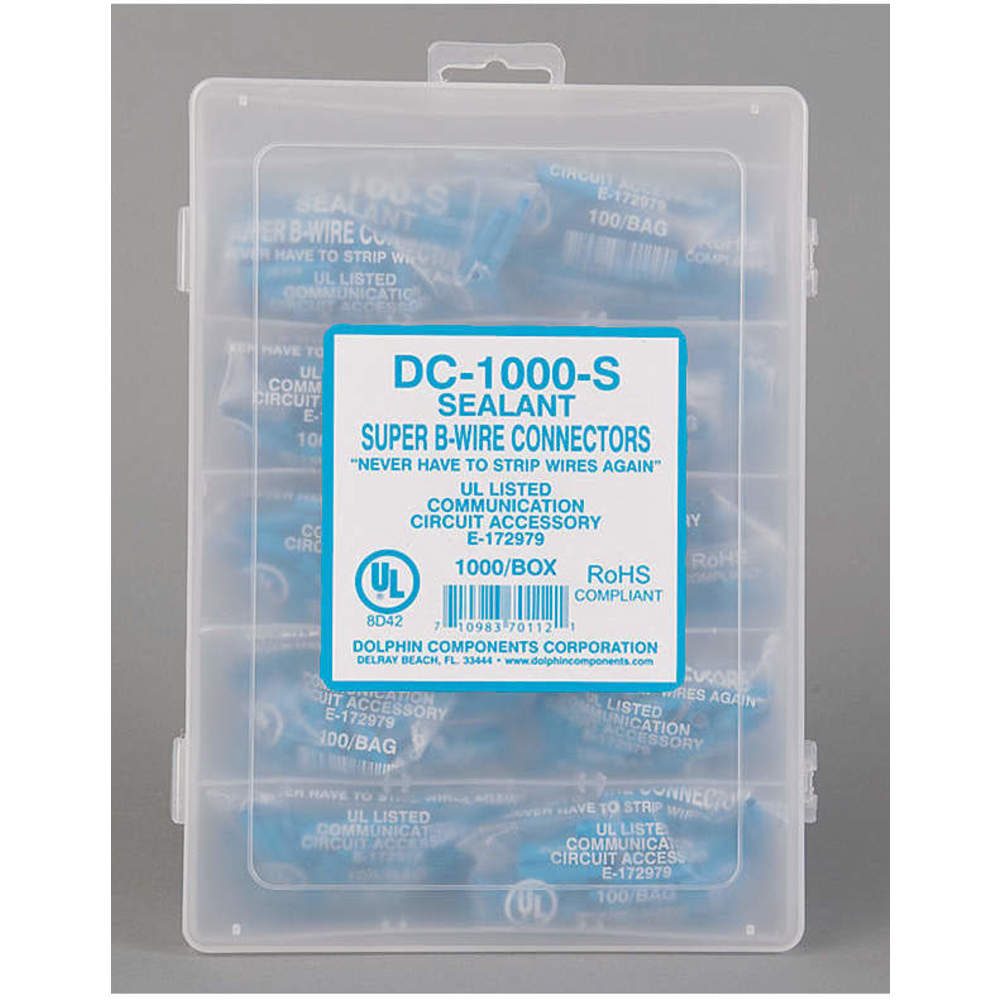

DC-1000-S | Blue | Sealant | 0.194" | 1 | PVC | 300V | 16 AWG | 26 AWG | 1000 | €195.12 | |
 |

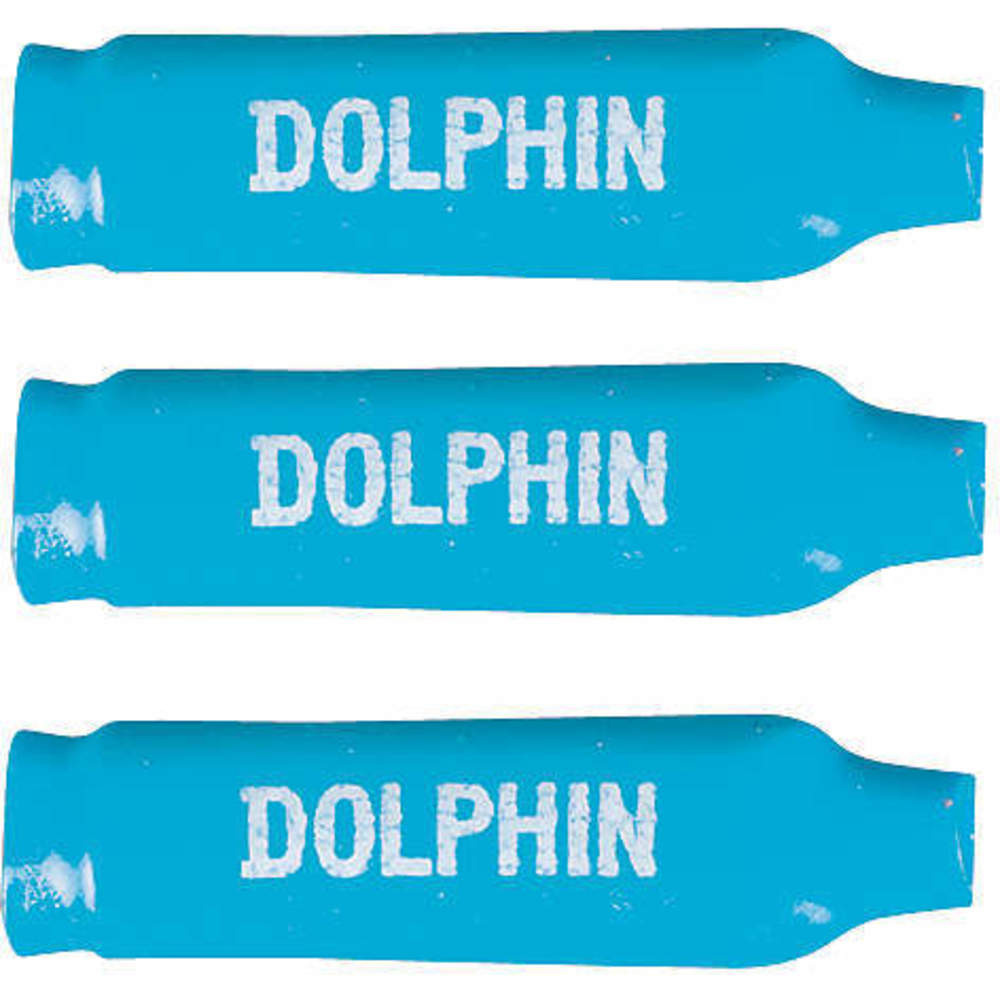

DC-100-S | Blue | Sealant | 0.194" | 1 | PVC | 300V | 16 AWG | 26 AWG | 100 | €24.15 | |
 |

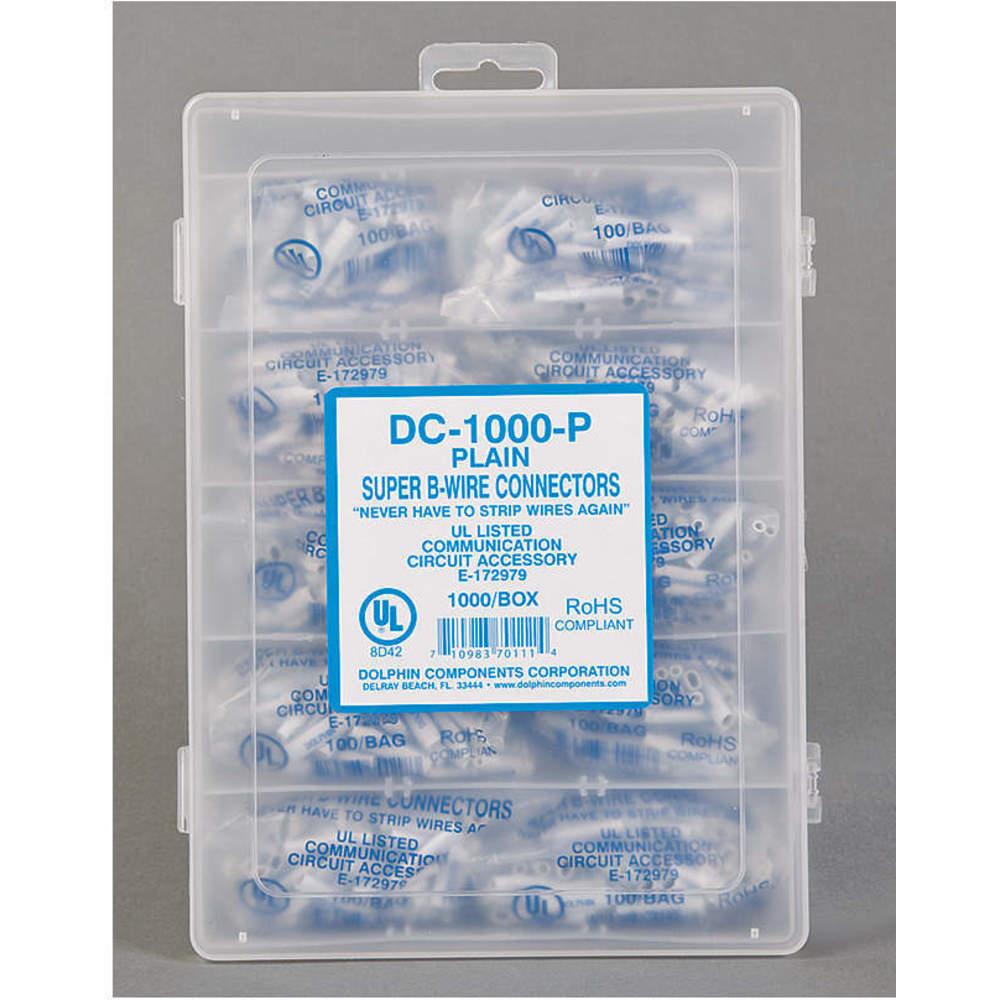

DC-1000-P | White | No Fill | 0.194" | 1 | PVC | 300V | 16 AWG | 26 AWG | 1000 | €191.65 |
