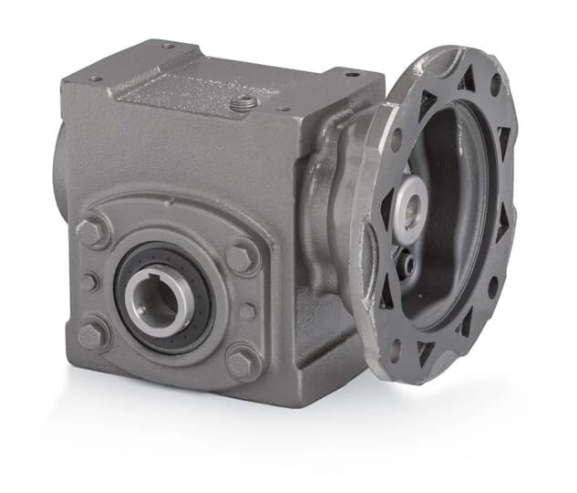

BALDOR / DODGE 26AZ20L56WP TIGEAR-2 E-Z KLEEN Reducer-White
Get it by Wednesday, Feb 18
€3,053.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base To Output Center Height | 2.87" |
| Case Size | 26 |
| Center Distance | 2.63" |
| Center To End Of Shaft Distance | 5.63" |
| Color | White |
| Finish | White Epoxy |
| Gearbox Component Type | Gearbox |
| Housing Material | Cast Iron |
| Hp Rating Input | 2.71 hp |
| Hp Rating Output | 2 8/25 hp |
| Input Flange | 56C |
| Input Style | 3 Piece Coupled |
| Lubrication Type | PAG, Standard Temperature |
| Motor Compatibility | NEMA Motor, 56C Frame |
| Mounting Bolt Pattern Length | 6.38" |
| Mounting Bolt Pattern Width | 3.38" |
| Nominal Ratio | 20 |
| Output Shaft Center To Input Motor Mounting Face Distance | 8.61" |
| Output Style | Left |
| Overhung Load | 1610 lbf. |
| Rated Torque Output | 1673 lbs.-in. |
| Ratio | 20:1 |
| Seal Type | Two Piece Harsh Duty |
| Shaft Dia. | 1 1/4" |
| Shaft Dia. Output | 1 1/8" |
| Shaft Length Output | 2.67" |
| Shaft Output Type | Left Side Solid |
| Suitable For Washdown | Yes |
| Thermal Hp Rating | 3.71 hp |
Shipping Info:
| Ship weight (kg) | 31.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Overhung Load | Gear Ratio | Shaft Dia. | Finish | Output Type | Frame Size | Housing Material | Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 26QZ40HA14 | 1610 lbf. | 40 | 1.688" | Silver Gray Epoxy | Hollow Alt | 140 | Cast Iron | Two Piece Harsh Duty | €3,470.45 | |
| 26QZ50HA14 | 1610 lbf. | 50 | 1.688" | Silver Gray Epoxy | Hollow Alt | 140 | Cast Iron | Two Piece Harsh Duty | €3,470.45 | |
| 26QZ07HA14 | 1520 lbf. | 7 | 1.688" | Silver Gray Epoxy | Hollow Alt | 140 | Cast Iron | Two Piece Harsh Duty | €3,470.45 | |
| 26QZ15HA14WP | 1610 lbf. | - | 1.688" | White Epoxy | - | - | Cast Iron | Two Piece Harsh Duty | €3,470.45 | |
| 26QZ18HA14 | 1610 lbf. | 18 | 1.688" | Silver Gray Epoxy | Hollow Alt | 140 | Cast Iron | Two Piece Harsh Duty | €3,470.45 | |
| 26QZ20HA14 | 1610 lbf. | 20 | 1.688" | Silver Gray Epoxy | Hollow Alt | 140 | Cast Iron | Two Piece Harsh Duty | €3,470.45 | |
| 26QZ30HA14 | 1610 lbf. | 30 | 1.688" | Silver Gray Epoxy | Hollow Alt | 140 | Cast Iron | Two Piece Harsh Duty | €3,470.45 |
