BALDOR / DODGE 20A20L56WP TIGEAR-2 Reducer With White Paint
Get it by Tuesday, Dec 23
€1,586.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base To Output Center Height | 2 6/25" |
| Case Size | 20 |
| Center Distance | 2" |
| Center To End Of Shaft Distance | 4.69" |
| Color | White |
| Finish | White Epoxy |
| Housing Material | Cast Iron |
| Hp Rating Input | 1 17/50 hp |
| Hp Rating Output | 1.11 hp |
| Input Flange | 56C |
| Input Style | 3 Piece Coupled |
| Lubrication Type | PAG, Standard Temperature |
| Motor Compatibility | NEMA Motor, 56C Frame |
| Mounting Bolt Pattern Length | 5" |
| Mounting Bolt Pattern Width | 2 22/25" |
| Nominal Ratio | 20 |
| Output Shaft Center To Input Motor Mounting Face Distance | 7.83" |
| Output Style | Left |
| Overhung Load | 1560 lbf. |
| Rated Torque Output | 796 lbs.-in. |
| Ratio | 20:1 |
| Seal Type | Single Lip Contact |
| Shaft Dia. | 1" |
| Shaft Length Output | 2.11" |
| Shaft Output Type | Left Side Solid |
| Suitable For Washdown | No |
| Thermal Hp Rating | 1.99 hp |
Shipping Info:
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overhung Load | Gear Ratio | Shaft Dia. | Output Type | Frame Size | Finish | Housing Material | Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20A10L56 | 1560 lbf. | 10 | 1" | Left Solid A | 56 | Green Finish | Cast Iron | Single Lip Contact | €1,425.49 | |
 |
20A10LR14 | 1560 lbf. | 10 | 1" | Double Solid | 140 | - | Cast Iron | Single Lip Contact | €1,590.44 | |
|
20A10LR56 | 1560 lbf. | 10 | 1" | Double Solid | 56 | - | Cast Iron | Single Lip Contact | €1,590.44 | |
 |
20A10R14 | 1560 lbf. | 10 | 1" | Right Solid B | 140 | - | Cast Iron | Single Lip Contact | €1,425.49 | |
|
20A10R56 | 1560 lbf. | 10 | 1" | Right Solid B | 56 | - | Cast Iron | Single Lip Contact | €1,425.49 | |
 |

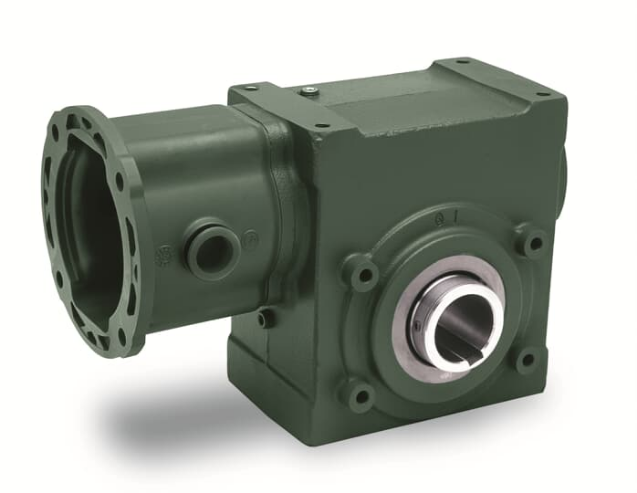

20A15H14 | 1560 lbf. | 15 | 1 1/4" | Hollow | 140 | - | Cast Iron | Single Lip Contact | €1,921.26 | |
|
20A15H56 | 1560 lbf. | 15 | 1 1/4" | Hollow | 56 | - | Cast Iron | Single Lip Contact | €1,921.26 |
