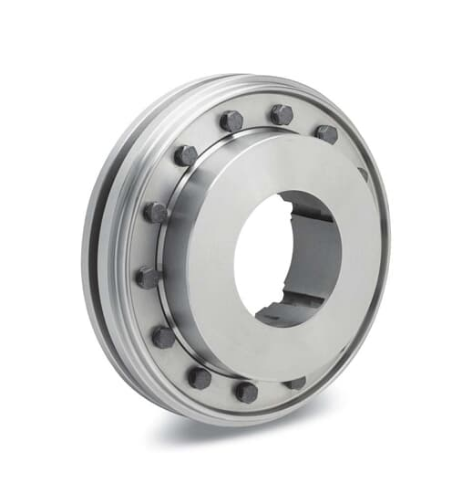

BALDOR / DODGE 011471 PX320F Elastomeric Coupling Para-Flex, Size Px320, Rating 810 Rpm
Get it by Tuesday, Jul 7
€12,070.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Assembly |
| Angular Misalignment | 4 |
| Axial Misalignment | 5/16" |
| Bore Length | 6 1/2" |
| Bushing Size | 8065 |
| Bushing Type | Taper Lock |
| Coupling Component | Flange |
| Coupling Style | Tire |
| Coupling Type | Elastomeric |
| Flange Material | Cast Iron |
| Hp Per 100 Rat | 719 hp |
| Max. Bore Dia. | 8" |
| Max. Speed | 810 RPM |
| Max. Temp. | 180°F |
| Min. Bore Dia. | 5 7/16" |
| Min. Temp. | -45°F |
| Parallel Misalignment | 1/8" |
| Shaft Attachment | Bushed |
| Shaft Spacing | Close Coupled |
| Size | PX320 |
| Speed | 810 RPM |
| Torque | 453000 lbf. |
Shipping Info:
| Ship weight (kg) | 307.8 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 16.84 |
| Ship width (cm) | 16.84 |
| Country of Origin | US |
Product Variants
| Model | Shaft Attachment | Size | Speed | Max. Speed | Torque | Coupling Type | Parallel Misalignment | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 010602 | Bushed | PX60 | 4000 RPM | 4000 RPM | - | Elastomeric | 1/8" | €235.06 | |
| 010603 | Bushed | PX70 | 3600 RPM | 3600 RPM | 2200 lbf. | Elastomeric | 1/8" | €306.03 | |
| 010604 | Bushed | PX80 | 3100 RPM | 3100 RPM | 3605 lbf. | Elastomeric | 1/8" | €403.60 | |
| 010605 | Bushed | PX90 | 2800 RPM | 2800 RPM | 4502 lbf. | Elastomeric | 1/8" | €545.52 | |
| 010606 | Bushed | PX100 | 2600 RPM | 2600 RPM | 5402 lbf. | Elastomeric | 1/8" | €589.25 | |
| 010607 | Bushed | PX110 | 2300 RPM | 2300 RPM | 7750 lbf. | Elastomeric | 1/8" | €650.07 | |
| 010608 | Bushed | PX120 | 2100 RPM | 2100 RPM | 12605 lbf. | Elastomeric | 1/8" | €775.53 |
