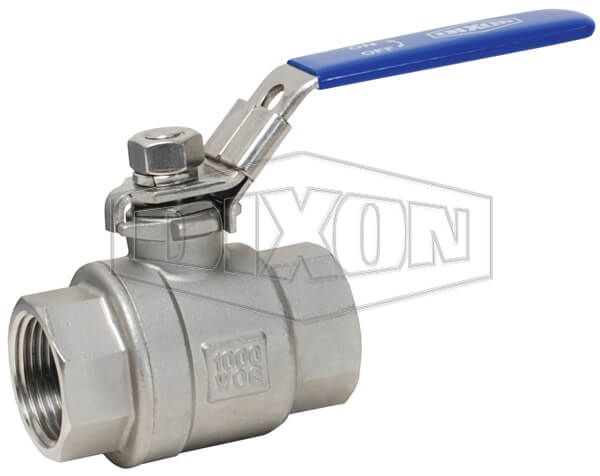

DIXON SSLBV100 Stainless Steel Ball Valve Full Port, Locking Handle, 1000 PSI Wog
Item: AL2ZVCModel: SSLBV100Cross Ref: 58CM69
7 In Stock
Ships within 2 days via
10.00% off
€149.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Actuator Type | Locking Handle |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Grade 316 |
| Ball Material Grade | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | 316 Stainless Steel |
| Coefficient Of Volume (cv) | 92 |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Combustible Gases, Water |
| Grade | Grade 316 |
| Handle | Locking Lever |
| Handle - Locking | Locking |
| Handle Color | Blue |
| Handle Material | Plastic |
| Handle Type | Lever |
| Included Mounting | Not Applicable |
| Max. Media Temperature | 428°F |
| Max. Pressure (cwp) | 1000 psi |
| Max. Pressure (steam) | 100 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Media Temperature Range | -20°F to +428°F |
| Min. Media Temperature | -20°F |
| Nominal Size | 1" |
| Nominal Valve Size | 1" |
| Overall Length | 84" |
| Pipe Schedule Compatibility | Not Applicable |
| Pressure Rating | 1000 psi |
| Product Type | Ball Valve |
| Seal Material | RPTFE |
| Seat Material | RPTFE |
| Stem Material | 316 Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | -20°F to +356°F |
| Trim Material | RPTFE |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Vented Ball Valve | Not Applicable |
Shipping Info:
| Ship weight (kg) | 0.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Model | Body Material | Overall Length | Temp. Range | Pressure Rating | Nominal Size | Seat Material | Ball Material | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SSLBV125 | Stainless Steel | - | -20°F to +356°F | 1000 psi | 1 1/4" | RPTFE | - | - | €180.23 | |
| SSLBV150 | 316 Stainless Steel | 105.5" | -20°F to +356°F | 1000 psi | 1 1/2" | RPTFE | Grade 316 | RPTFE | €321.26 | |
| SSLBV200 | Stainless Steel | - | -20°F to +356°F | 1000 psi | 2" | RPTFE | - | - | €459.26 | |
| SSLBV25 | Stainless Steel | - | -20°F to +356°F | 1000 psi | 1/4" | RPTFE | - | - | €81.08 | |
| SSLBV250 | Stainless Steel | - | -20°F to +356°F | 800 psi | 2 1/2" | RPTFE | - | - | €498.77 | |
| SSLBV300 | Stainless Steel | - | -20°F to +356°F | 800 psi | 3" | RPTFE | - | - | €699.77 | |
| SSLBV38 | Stainless Steel | - | -20°F to +356°F | 1000 psi | 3/8" | RPTFE | - | - | €54.87 |
