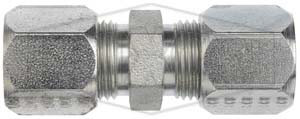

DIXON FLC2403-03 Tube Union, Steel, 3/16 Inch Tube O.D.
Item: BX7FDZModel: FLC2403-03
7 In Stock
Ships within 2 days via
€21.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tube Union |
| Application | Chemical, Pulp And Paper, Oil And Gas Refineries, Military, Air Compressors And Machine Tools, Well-Suited For A Variety Of Processing And General Industry Hydraulic Applications. Ideally Suited For Use With Tubing Having Medium To Extra Heavy Wall Thicknesses. Fittings Are Suitable For Sub-Zero Through Elevated Temperature Applications |
| Break Quantity | 1 |
| Construction | Exceeds Military (Mil F18866) And SAE J514 Standards |
| Interchange | Cut, De-Burr And Clean Tubing, Pre-Set Ferrule Onto Tubing, Inspect Ferrule Bite In Tubing By Disassembling The Fitting And Visually Inspecting The De-Burred End Of The Tube For Slight Indentation. Finger Tighten Nut And Then Further Wrench Tighten Nut Another 1/3" To 1/2" Turn. |
| Material | Steel |
| Product Datasheet | dixon-flc2405-20.pdf |
| Series | Flareless Bite Fittings |
| Shape Orientation | Straight |
| Tube Outside Dia. | 3/16" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Tube Outside Dia. | Material | Shape Orientation | Break Quantity | Series | Price | |
|---|---|---|---|---|---|---|---|
| FLC2403-24 | 1 1/2" | Steel | Straight | 1 | Flareless Bite Fittings | €175.45 | |
| FLC2403-05 | 5/16" | Steel | Straight | 1 | Flareless Bite Fittings | €45.03 | |
| FLC2403-10 | 5/8" | Steel | Straight | 1 | Flareless Bite Fittings | €33.48 | |
| FLC2403-06 | 3/8" | Steel | Straight | 1 | Flareless Bite Fittings | €20.02 | |
| FLC2403-08 | 1/2" | Steel | Straight | 1 | Flareless Bite Fittings | €26.22 | |
| FLC2403-02 | 1/8" | Steel | Straight | 1 | Flareless Bite Fittings | €28.83 | |
| FLC2403-04 | 1/4" | Steel | Straight | 1 | Flareless Bite Fittings | €15.47 |
