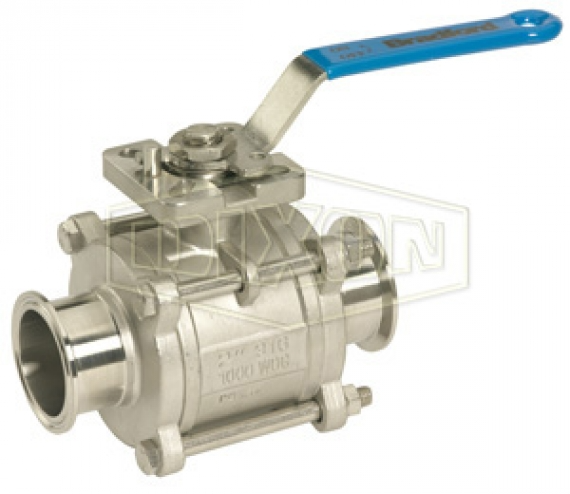

DIXON BV2CU-300CC-A Ball Valve, 3 Inch Size, CF8M Stainless Steel
€2,176.71 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Body Material | Stainless Steel |
| Grade | Grade CF8M |
| Material | CF8M Stainless Steel , Stainless Steel |
| Pressure Rating | 800 psi , 800 psi WOG |
| Seat | UHMW |
| Seat Material | UHMW |
| Shape | Straight |
| Shape Orientation | Straight |
| Size | 3" |
| Style | Clamp Ends |
| Temp. | -20°F to +450°F |
Shipping Info:
| Country of Origin | US |
Product Variants
| Model | Size | Seat Material | Material | Pressure Rating | Style | Nominal Size | Stem Material | Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BV2CV-050CC-A | 1/2" | Virgin PTFE | Stainless Steel | 1000 psi | Clamp Ends | 1/2" | Stainless Steel | -20°F to +450°F | €184.29 | |
| BV2CV-075CC-A | 3/4" | Virgin PTFE | Stainless Steel | 1000 psi | Clamp Ends | 3/4" | Stainless Steel | -20°F to +450°F | €211.86 | |
| BV2CV-100CC-A | 1" | Virgin PTFE | Stainless Steel | 1000 psi | Clamp Ends | 1" | Stainless Steel | -20°F to +450°F | €258.90 | |
| BV2CV-150CC-A | 1 1/2" | Virgin PTFE | Stainless Steel | 1000 psi | Clamp Ends | 1 1/2" | Stainless Steel | -20°F to +450°F | €414.61 | |
| BV2CV-200CC-A | 2" | Virgin PTFE | Stainless Steel | 1000 psi | Clamp Ends | 2" | Stainless Steel | -20°F to +450°F | €608.37 | |
| BV2CV-250CC-A | 2 1/2" | Virgin PTFE | Stainless Steel | 800 psi | Clamp Ends | 2 1/2" | Stainless Steel | -20°F to +450°F | €976.63 | |
| BV2CV-300CC-A | 3" | Virgin PTFE | Stainless Steel | 800 psi | Clamp Ends | 3" | Stainless Steel | -20°F to +450°F | €1,265.97 |
