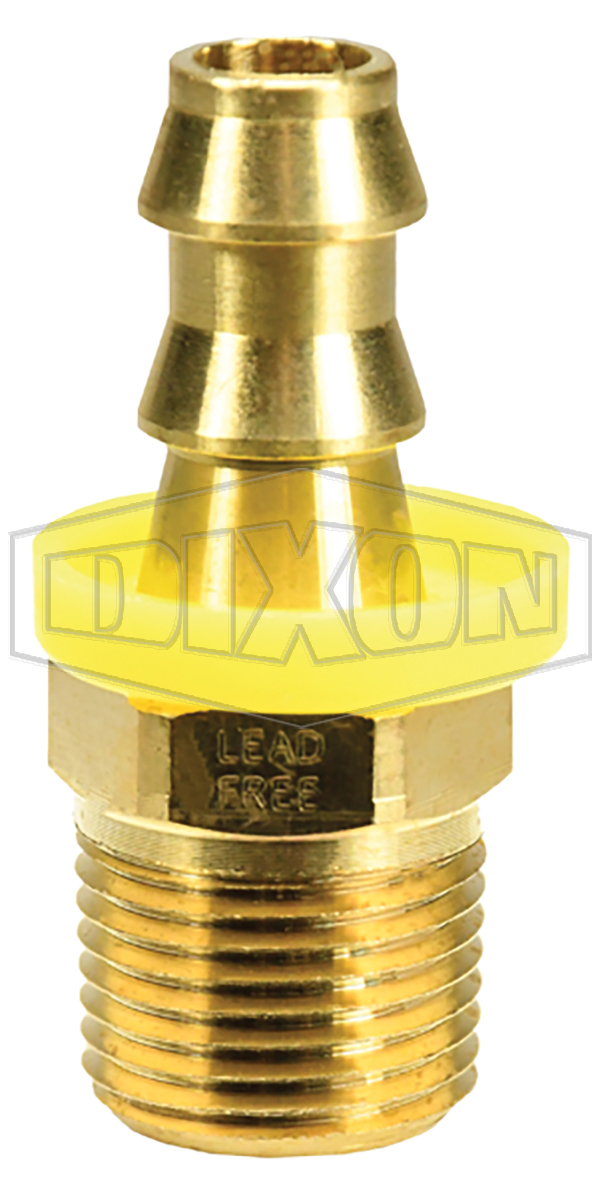

DIXON 2720402CLF Hose Connector, Male NPTF x Push-on Hose Barb
Item: BX6NHWModel: 2720402CLF
7 In Stock
1.42"
1/4"
Lead Free Brass
Ships within 2 days via
€17.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hose Barb |
| Application | For Use Where "Lead Free" Fittings Are Required, For Use With Potable Water. |
| Component | Yellow Plastic Cap |
| Configuration | Male Hose Barbs |
| Construction | Lead Free Brass <=0.25% Lead, Alloy CA2745, Alloy C46400 |
| Hex | 7/16" |
| Hex Size | 7/16" |
| Hose Inside Dia. | 1/4" |
| Installation | Assembly Instructions: 1. Trim Hose End With Smooth Square Cut. 2. Lubricate Either Push-On Fitting, Hose Or Both. 3. Insert Push-On Fitting Into Hose Until First Barb Is In Hose. |
| Length | 1.42" |
| Male Thread | NPTF |
| Male Thread Size | 1/8" |
| Male Thread Type | NPTF |
| Material | Lead Free Brass |
| Pressure Rating | 350 psi |
| Temp. | -40°F to +150°F |
| Thread Type | NPT |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.61 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Material | Pressure Rating | Hex Size | End Configuration Type | Fitting Material | Reusable | Fitting Movement | Hose Fitting B Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2720404C | Brass | 350 psi | 9/16" | Push On Hose Barb x Male NPTF | - | - | - | - | €4.67 | |
 |
2720604C | Brass | 350 psi | 9/16" | Push On Hose Barb x Male NPTF | Brass | No | Rigid | NPT | €3.92 | |
 |
2720806C | Brass | - | - | Push On Hose Barb x Male NPTF | Brass | No | Rigid | NPT | €6.03 | |
|
2720808C | Brass | - | - | Push On Hose Barb x Male NPTF | - | - | - | - | €9.37 | |
 |
2721008C | Brass | - | - | Push On Hose Barb x Male NPTF | - | - | - | - | €11.95 | |
|
2720402C | Brass | - | - | Push On Hose Barb x Male NPTF | - | - | - | - | €3.93 | |
|
2720406C | Brass | 350 psi | 11/16" | Push On Hose Barb x Male NPTF | Brass | No | Rigid | NPT | €5.53 |
