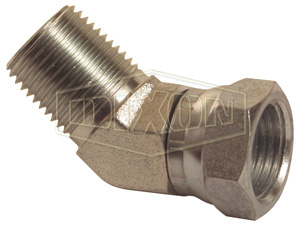

DIXON 1503-4-4 Swivel Nut Elbow, 45 Deg. Bend, MNPTF x FNPSM, 1/4 Inch-18
Item: BX6LVRModel: 1503-4-4
7 In Stock
Ships within 2 days via
€8.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Swivel Nut Elbow |
| Angle | 45° |
| Connection Type | NPSM |
| Feature | Designed To Prevent Hose Stress Due To Twisting During Assembly, Compact Design Provides Ease Of Assembly In Confining Areas, Female NPSM Swivel Seals On A 30° Seat |
| Female Thread | Npsm |
| Female Thread Size | 1/4"-18 |
| Female Thread Type | NPSM |
| Finish | Zinc Plated |
| Male Thread | NPTF |
| Male Thread Size | 1/4"-18 |
| Male Thread Type | NPTF |
| Material | Steel , Zinc Plated Steel |
| Product Datasheet | dixon-1501-8-6.pdf |
| Shape Orientation | 45° |
| Style | Elbows |
| Thread Gender 1 | Female |
| Thread Gender_2 | Male |
| Thread Size 1 | 1/4"-18 |
| Thread Size 2 | 1/4"-18 |
| Thread Type 1 | NPTF |
| Thread Type 2 | NPSM |
| Working Pressure | 4500 psi |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Material | Working Pressure | Male Thread Size | Female Thread Size | Thread Size 1 | Thread Size 2 | Finish | Male Thread | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1503-12-12 | Steel | 2500 psi | 3/4"-14 | 3/4"-14 | 3/4"-14 | 3/4"-14 | Zinc Plated | NPTF | €17.85 | |
| 1503-16-16 | Steel | 2000 psi | 1"-11.5 | 1"-11-1/2 | - | - | Zinc Plated | NPTF | €30.62 | |
| 1503-6-6 | Steel | 4000 psi | 3/8"-18 | 3/8"-18 | - | - | Zinc Plated | NPTF | €10.59 | |
| 1503-8-8 | Steel | 3000 psi | 1/2"-14 | 1/2"-14 | 1/2"-14 | 1/2"-14 | Zinc Plated | NPTF | €13.93 |
