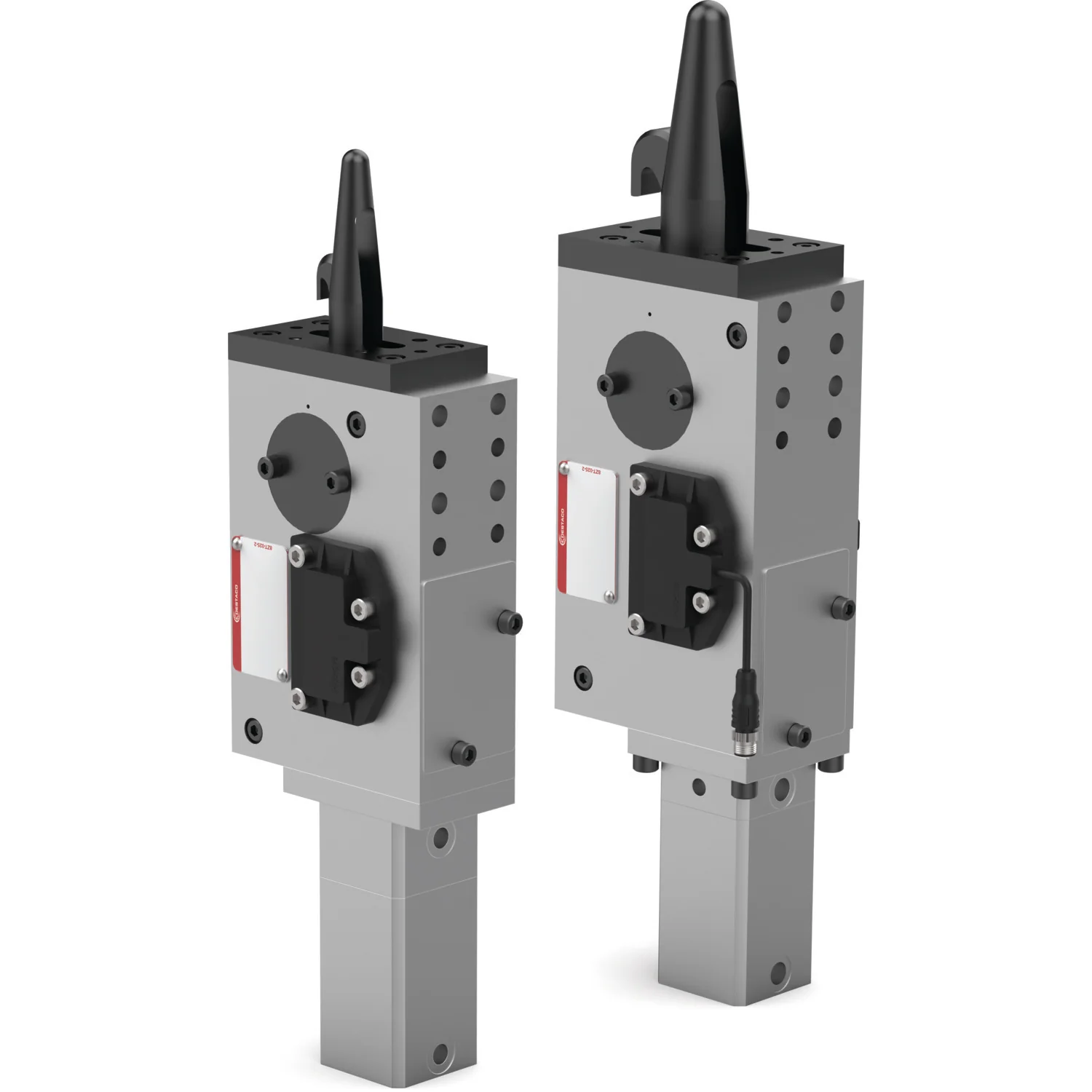

DESTACO 82P30-325C0D0 Pneumatic Centering Pin Clamp, 1.18 Inch Cylinder Bore
Item: EC9YTFModel: 82P30-325C0D0
In Stock
Get it by Monday, Aug 24
€1,578.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Clamp |
| Accessories | 8EA-012-3, 8EA-030-1, 8EL-009-1, 8EL-007-1, 8EL-002-1, 8EL-003-1 |
| Air Consumption Per Double Stroke @ 87 Psi | 0.03 cu. ft. |
| Clamp Arm Style | U-Arm (Right Offset) |
| Clamping Force | 450 lbs. |
| Cylinder Bore | 1.18" |
| Max. Pin Dia. | 1.1" |
| Min. Pin Dia. | 0.91" |
| Operating Pressure | 87 psi |
| Port Size | 1/8" |
| Port Type | G |
| Spindle Included | No |
Shipping Info:
| Ship weight (kg) | 2.97 |
