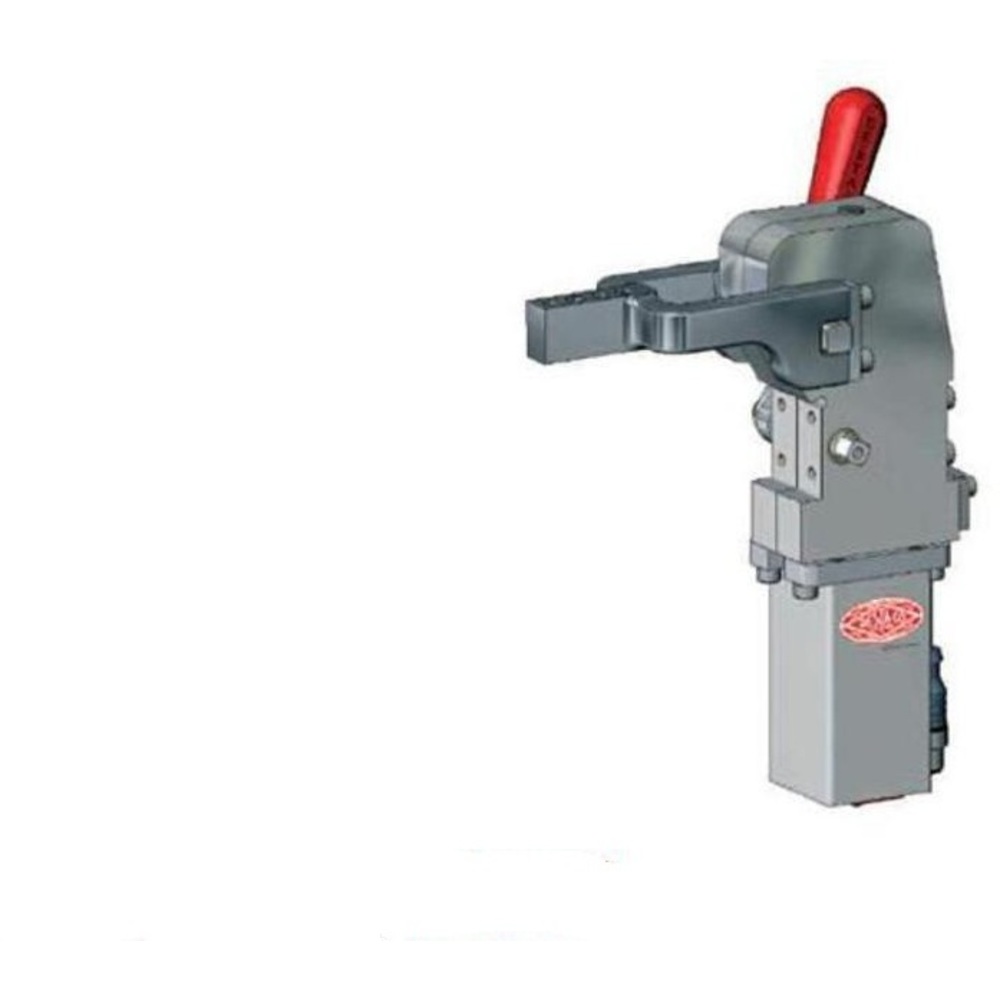

DESTACO 82L4N-26300H0B Pneumatic Power Clamp, 2000 lb Holding Capacity, Solid Bar

Destaco 82L4N-26300H0B pneumatic clamp or pneumatic power clamp is ideal for a variety of applications like positioning, holding, gripping and tensioning metal sheets in the automotive, aerospace and food & packaging industries. The enclosed pneumatic clamp is designed with precision and is intended for harsh welding environments that demand superior clamping power. Further, this clamp is also integrated with hardened rivets & bushings at pivot points to fix, rotate & move the handle bar for the required work. This pneumatic power clamp features a solid bar offering an opening angle of 180 degrees and is capable of holding loads up to 2000 lb. It has a pneumatic cylinder with an input port for connecting to the compressed air source and comes with a patented Toggle Lock Plus mechanism for locking the clamp in the fixed position if hose disconnection or sudden pressure drop is detected. The Toggle Lock Plus safety feature also ensures that the over centre locking condition is maintained and the clamp remains protected against accidental opening. It is further equipped with a horizontal U clamp arm (centrally positioned for firm clamping). Destaco 82L4N-26300H0B pneumatic power clamp also incorporates a hand lever for manual operation and provides mounting area at rear, front and sides for easy and secure installation.

Uses:

• Destaco 82L4N-26300H0B pneumatic power clamp is suitable for clamping, holding and positioning metal sheets & parts, in fixtures and handling systems. They are used in the aerospace, automotive and food & packaging industries.

Features:

• Destaco 82L4N-26300H0B pneumatic clamp features a solid bar offering an opening angle of 180 degrees.
• This pneumatic power clamp is capable of holding loads up to 2000 lb.
• Destaco 82L4N-26300H0B pneumatic clamp has the Toggle Lock Plus feature to ensure over centre locking condition is sustained throughout the clamping operation.
• This pneumatic power clamp also incorporates a hand lever for manual operation.
• It provides mounting area at rear, front and sides for easy and secure installation.

Compatible Accessories:

• Destaco 8EA-139-1: This B8 P and F sensor is designed for 82L Series power clamps.

Standards and Approvals:

• Destaco 82L4N-26300H0B pneumatic power clamp adheres to international standards like ISO 9001:2015 & ISO 14001:2015 to ensure environmental health, utmost user safety and efficient performance of the clamp.

Installation:

• Destaco 82L4N-26300H0B pneumatic power clamp provides rear, front and side mounting for easy and secure installation.

Frequently Asked Questions:

Q. How to choose the right straight line action clamp?

A. Destaco clamps have steel or stainless steel construction and are available in variants having flange, narrow flange, straight or solid base mounting style for easy installation. These clamps are available in varying holding capacities to denote the maximum external force that a clamp in the locked position can resist safely, without getting deformed permanently. Straight line action clamps also feature imperial or metric plunger threads for secure installation. The customers should choose clamps on the basis of distance travelled by plungers in their extended position.

Q. How to specify the right power clamp for a particular application?

Q. Why would you need a power clamp?

A. Destaco power clamps are specially designed for use in automated manufacturing processes where the requirement is to accurately clamp components repeatedly, quickly and accurately. They are ideal for applications where there is limited or no access to manually activate the clamp either because of space limitation (manual access isn't possible) or because the clamp is located remotely.

Q. Is it right to check the specifications?

A. By checking the specifications, you can ascertain the toggle clamp capacity, so it is a firm yes. The product specifications from the manufacturer consist of enough information about the throat depth and jaw opening. You can also ask our dedicated procurement team for an accurate guide.

Q. Which grease is ideal for Destaco clamps for their rebuilding?

A. A coupling grease like Mobil XTC should be used when dealing with Destaco mechanical clamps, while the Magnalube G grease is great for use with pneumatic cylinder seals.

Q. What does clamping force mean?

A. Clamping force is the amount of force actually applied to a workpiece by closing & locking the clamp. It is normally less than the stated holding capacity. The actual clamping force depends on various factors, including cylinder bore, cylinder area, spindle position (clamping arm length) and available air pressure. In most cases, the clamping force is approximately 2 to 3 times the force exerted by a pneumatic cylinder.

Q. Does Destaco supply any water resistant clamp sensors?

A. Yes, Destaco also supplies inductive sensors designed in accordance with IP65 standards to ensure protection from powerful hydraulic jets, dust & heavy rain.
