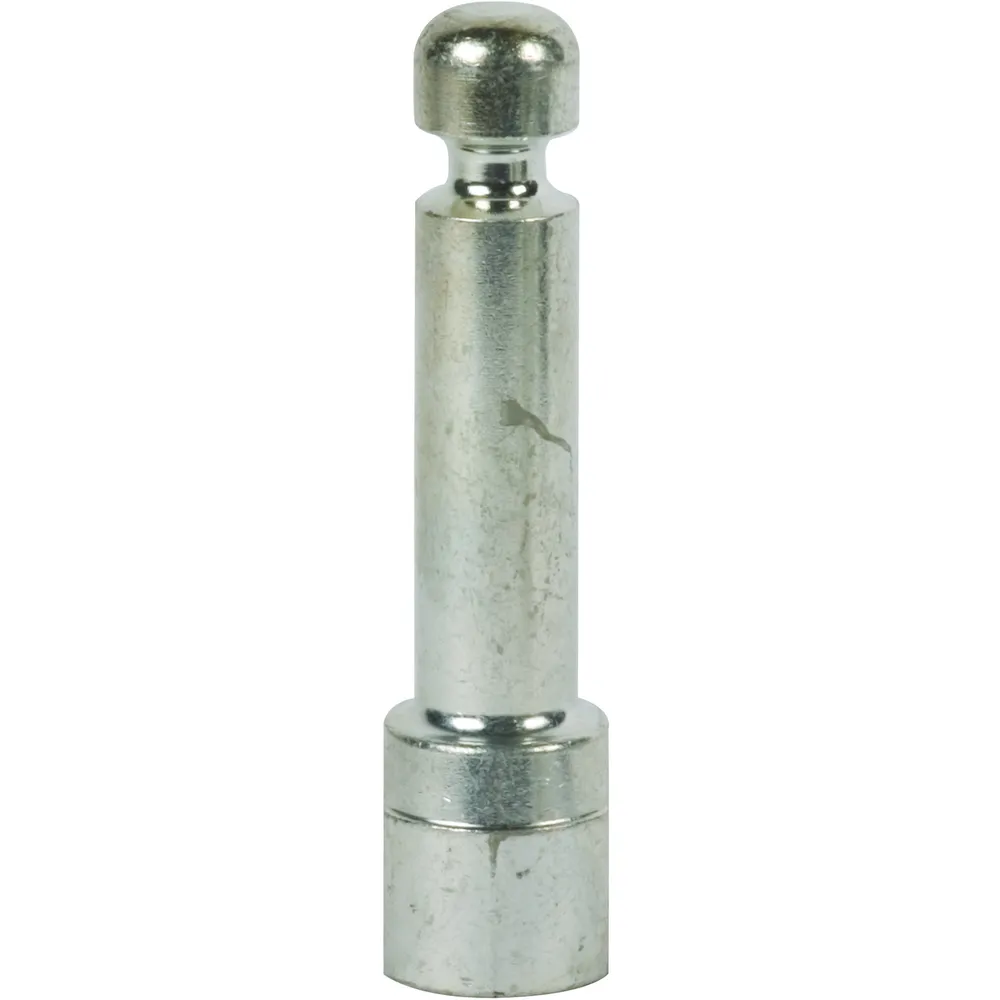

DEHN 790260 Fixed Earthing Point With Ring Groove
Get it by Monday, Aug 17
€54.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Groove Fixed Point |
| Dia. | 16 mm |
| Dimension S | M16 |
| Dimensions | M16 |
| Finish | Galvanized TiN |
| Item | 845556 |
| Material | Brass |
| Max. Cable Cross - Section Cu | 150 sq. mm |
| Max. Cable Cross-section Cu | 150 sq. mm |
| Max. Short-circuit Amps @ Ik0.5 S | 42 kA |
| Max. Short-circuit Amps @ Ik1 S | 29.6 kA |
| Max. Short-circuit Amps Ik0.5 S | 42 kA |
| Max. Short-circuit Amps Ik1 S | 29.6 kA |
| Product Datasheet | dehn-705510.pdf |
| Wrench Size | 22 mm |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.21 |
| Ship length (cm) | 1.6 |
| Ship width (cm) | 2.59 |
Documentation:
Product Variants
| Product | Model | Dimensions | Dimension S | Material | Max. Short-circuit Amps Ik0.5 S | Max. Short-circuit Amps Ik1 S | Finish | Dia. | Wrench Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
790250 | M12 | M12 | Brass | 42 kA | 29.6 kA | Galvanized TiN | 16 mm | 22 mm | €49.33 |
