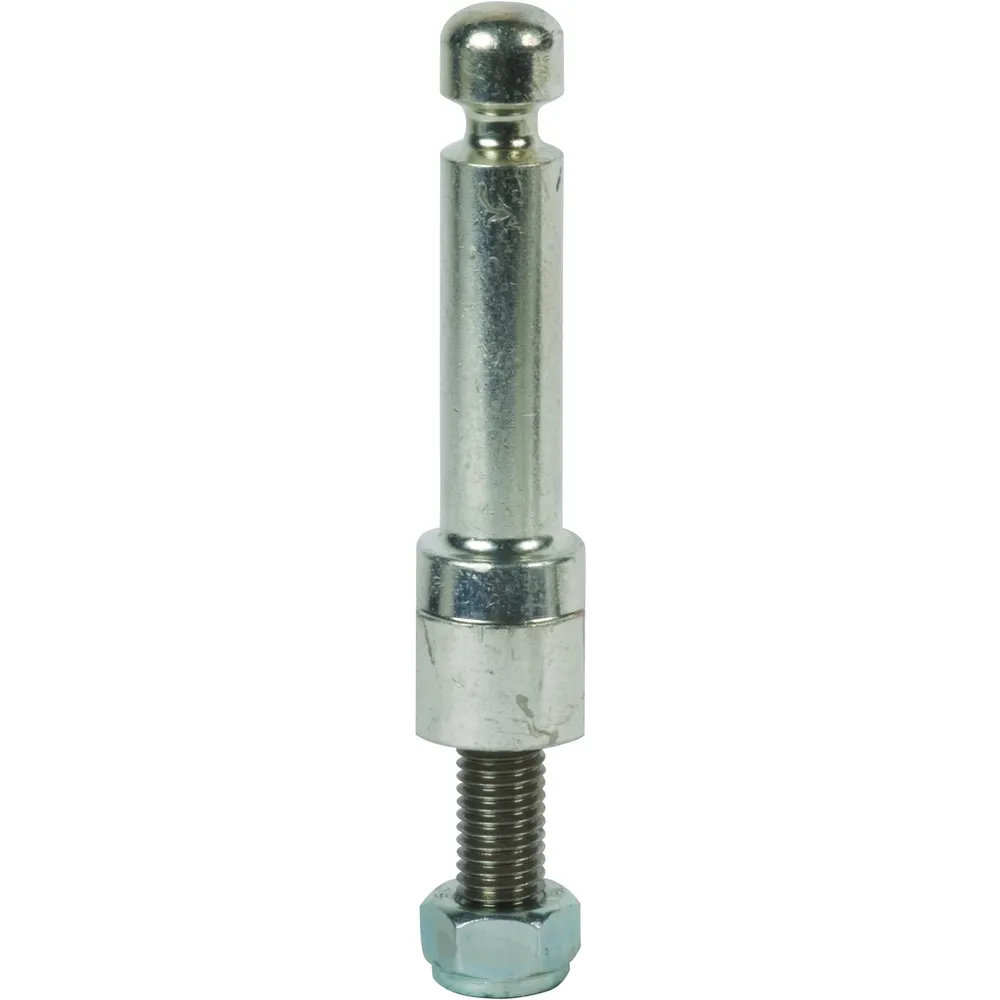

DEHN 790251 Fixed Earthing Point With Ring Groove, 16mm Diameter
Get it by Monday, Aug 17
€57.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Groove Fixed Point |
| Dia. | 16 mm |
| Dimension S | M12 x 35 mm |
| Dimensions | M12 x 35 mm |
| Item | 845556 |
| Material | Brass |
| Material (threaded Pin) | StStA2-70 |
| Max. Cable Cross - Section Cu | 150 sq. mm |
| Max. Cable Cross-section Cu | 150 sq. mm |
| Max. Short-circuit Amps @ Ik0.5 S | 42 kA |
| Max. Short-circuit Amps @ Ik1 S | 29.6 kA |
| Max. Short-circuit Amps Ik0.5 S | 42 kA |
| Max. Short-circuit Amps Ik1 S | 29.6 kA |
| Nut Finish | Galvanized TiN |
| Product Datasheet | dehn-705510.pdf |
| Thread Size | M12 x 35 |
| Threaded Pin Material | Steel |
| Tightening Torque | 50 N-m to 65 N-m |
| Wrench Size | 22 mm |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 2.21 |
| Ship length (cm) | 1.6 |
| Ship width (cm) | 2.59 |
Documentation:
Product Variants
| Product | Model | Dimensions | Dimension S | Material | Max. Short-circuit Amps Ik0.5 S | Max. Short-circuit Amps Ik1 S | Dia. | Material (threaded Pin) | Wrench Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
790261 | M16 x 45 mm | M16 x 45 mm | Brass | 42 kA | 29.6 kA | 16 mm | StStA2-70 | 22 mm | €59.08 |
