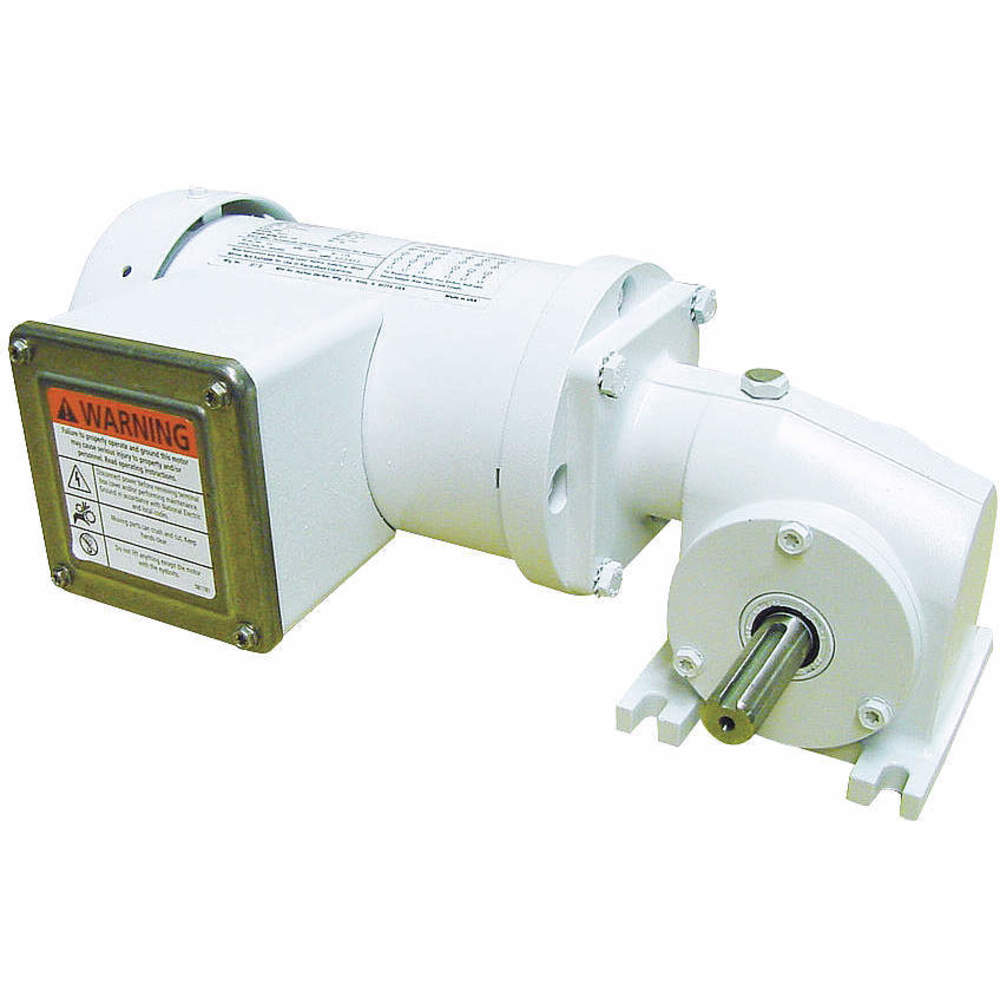

DAYTON M1145153.00 Ac Gearmotor 340 Rpm Tefc 115/230v
Get it by Tuesday, Jul 14
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,817.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 2/1A |
| Application | Washdown |
| Base To Center Of Shaft | 42.4 mm |
| Bearing Type | Roller On Case, Ball On Motor |
| Capacitor Required | Yes |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Finish | White Epoxy |
| Frame | 38 |
| Frequency | 60 Hz |
| Full Load Amps | 2/1A |
| Gear Case Material | Die Cast Aluminium |
| Gear Material | Forged Bronze, Hardened Steel |
| Gear Ratio | 5:1 |
| Gear Type | Output, Worm |
| Gearmotor Shaft Type | Single Right |
| Gears | Forged Bronze Output Gear, Hardened Steel Worm |
| Housing Material | Rolled Steel |
| Housing Material Finish | White Epoxy |
| Included Capacitor | Capacitor Included |
| Input Hp | 0.167 hp , 1/6 hp |
| Insulation Class | Class F |
| Key Way Size | 3/16" x 1" |
| Keyway Type | 0.1875 Sq. in. x 1" |
| Length Less Shaft | 13 1/4" |
| Lubrication | Permanent Heavy Duty Gear Oil |
| Max. Ambient Temp. | 104°F , 40°C |
| Max. Output Speed | 42 RPM |
| Max. Torque | 23 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 34 |
| Motor Insulation Class | Class H |
| Motor Thermal Protection | None |
| Motor Type | Permanent Split Capacitor |
| Mounting | All Position Except Shaft Up |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Mounting Type | Horizontal Or Vertical Shaft Down |
| Nameplate Speed | 251-500 RPM , 340 RPM |
| No Load Speed | 357 RPM |
| No. Of Output Shafts | 1 |
| Operating Voltage | 115/230V AC |
| Output Direction | Right Hand |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 13/16" |
| Overall Height | 9.64" |
| Overall Length | 3" |
| Overall Width | 4" |
| Overhung Load | 235 lbs. |
| Overhung Load Capacity | 235 lbs.-ft. |
| Phase | 1 |
| Rotation | CW, CCW |
| Rpm @ 50 Hz | 283 |
| Seal Type | Lip, Stainless Steel With Spring |
| Seals | Lip |
| Service Factor | 1 |
| Shaft | Single Output |
| Shaft Orientation | Right Angle |
| Speed | 251-500 RPM |
| Speed @ 50 Hz | 283 RPM |
| Starting Torque | 33 lbs.-in. |
| Thermal Protection | No |
| Type | Permanent Split Capacitor |
Shipping Info:
| Ship weight (kg) | 8.91 |
| Ship height (cm) | 17.02 |
| Ship length (cm) | 42.67 |
| Ship width (cm) | 19.81 |
| HS code | 8501404020 |
| Country of Origin | US |
Product Variants
| Model | Max. Torque | Operating Voltage | Gear Ratio | Overhung Load Capacity | Shaft Orientation | Base To Center Of Shaft | Overhung Load | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1L518 | 30 lbs.-in. | 230V AC | 17:1 | 90 lbs.-ft. | Parallel | - | 90 lbs. | 8 1/4" | €689.80 | |
| 1L519 | 76 lbs.-in. | 230V AC | 186:1 | 90 lbs.-ft. | Parallel | - | 90 lbs. | 7 22/25" | €729.18 | |
| 1L530 | 25 lbs.-in. | 230V AC | 13:1 | 90 lbs.-ft. | Parallel | - | 90 lbs. | 8" | €703.72 | |
| 1L532 | 100 lbs.-in. | 230V AC | 1369:1 | 90 lbs.-ft. | Parallel | - | 90 lbs. | 7 22/25" | €725.63 | |
| 1LPL3 | 250 lbs.-in. | 115/230V AC | 81:1 | 250 lbs.-ft. | Parallel | 2 1/2" | 250 lbs. | 9 22/25" | €1,074.80 | |
| 1LPL4 | 400 lbs.-in. | 115/230V AC | 135:1 | 250 lbs.-ft. | Parallel | 2 1/2" | 250 lbs. | 9 22/25" | €1,066.29 | |
| 1LPL5 | 600 lbs.-in. | 115/230V AC | 267:1 | 250 lbs.-ft. | Parallel | 2 1/2" | 250 lbs. | 9 22/25" | €1,090.38 |
