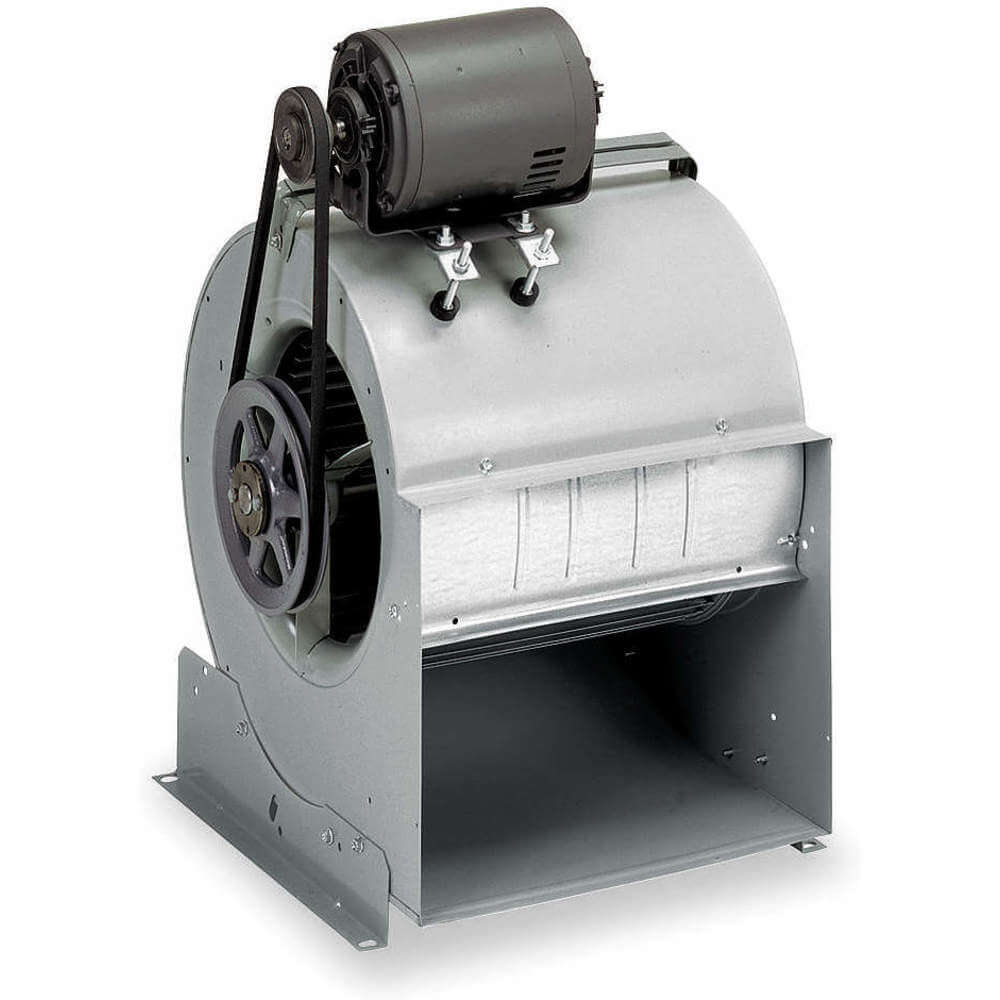

DAYTON 7J484 Blower with Drive Package 15-1/16 Inch 115V
Get it by Tuesday, Dec 23
10.00% off
€1,411.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Blower |
| Airflow @ 0.000 In Sp | Not Applicable |
| Airflow @ 0.100 In Sp | Not Applicable |
| Airflow @ 0.375 In Sp | Not Applicable |
| Airflow @ 0.400 In Sp | Not Applicable |
| Airflow @ 0.500 In Sp | Not Applicable |
| Airflow @ 0.750 In Sp | Not Applicable |
| Airflow @ 1.000 In Sp | Not Applicable |
| Airflow @ 1.250 In Sp | Not Applicable |
| Airflow @ 1.500 In Sp | Not Applicable |
| Airflow @ 10.00 In Sp | Not Applicable |
| Airflow @ 11.00 In Sp | Not Applicable |
| Airflow @ 12.00 In Sp | Not Applicable |
| Airflow @ 13.00 In Sp | Not Applicable |
| Airflow @ 2.000 In Sp | Not Applicable |
| Airflow @ 2.500 In Sp | Not Applicable |
| Airflow @ 3.000 In Sp | Not Applicable |
| Airflow @ 3.500 In Sp | Not Applicable |
| Airflow @ 4.000 In Sp | Not Applicable |
| Airflow @ 4.500 In Sp | Not Applicable |
| Airflow @ 5.000 In Sp | Not Applicable |
| Airflow @ 6.000 In Sp | Not Applicable |
| Airflow @ 7.000 In Sp | Not Applicable |
| Airflow @ 8.000 In Sp | Not Applicable |
| Airflow @ 9.000 In Sp | Not Applicable |
| Amps | 10.1/5.1A |
| Assembled/unassembled | Unassembled |
| Assembly | Unassembled |
| Bearing Type | Ball |
| Blower Rpm | 402 RPM |
| Cfm @ 0.125-in. Sp | 3820 CFM |
| Cfm @ 0.250-in. Sp | 3300 CFM |
| Cfm Range | 3820 To 3300 @ 0.125-in. sp To 0.250-in. sp |
| Discharge Height | 9 11/16" |
| Discharge Width | 18 5/8" |
| Discharge Width (in.) | 18.625" |
| Drive Package With Motor Included? | Yes |
| Drive Type | Belt Drive |
| Features | Has A Variable Pitch Motor Sheave, Complete With Drive Package For Speed Adjustment, Precision Ground Shafting With Both Keyways And Flats For A Wide Range Of Drives And Hp |
| Flange Size | Not Applicable |
| Footnotes | # Motor Overload Condition |
| Full Load Amps | 7.1A |
| Housing Color | Gray |
| Housing Depth | 22 11/16" |
| Housing Height | 25 3/4" |
| Housing Material | Steel |
| Housing Material Finish | Gray |
| Housing Width | 18 5/8" |
| Hz | 60 Hz |
| Includes | Isolation Grommet, Mounting Hardware |
| Includes Drive Package | Yes |
| Includes Motor | Yes |
| Includes Mounting Hardware | Yes |
| Inlet Diameter | 12 7/16" |
| Manufacturer Warranty Length | 1 yr. Limited |
| Max. Ambient Temp. | 104°F |
| Max. Inlet Temp. | 150°F |
| Maximum Fan Speed | 402 RPM |
| Maximum Static Pressure | 0.25 in. wc |
| Motor Duty Class | Continuous |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 56 |
| Motor Horsepower | 1/2 hp |
| Motor Hp | 1/2 hp |
| Motor Insulation Class | Class B |
| Motor Speed | 1725 RPM |
| Motor Type | Split Phase |
| Mount Type | Multiposition |
| Mounting | Multiposition |
| Nameplate Voltage | 115/230V AC |
| No. Of Inlets | 2 |
| Number Of Speeds | 1 |
| Oem Replacement | No |
| Outlet Dia. | Not Applicable |
| Outlet Height | 9 11/16" |
| Outlet Shape | Rectangular |
| Outlet Type | Non Flanged |
| Outlet Width | 18 5/8" |
| Phase | 1 |
| Speed Controllable | No |
| Type | Belt Drive, Double Inlet Forward Curve, Unassembled, With Drive Package |
| Wheel Dia. | 15 1/16" , 15" , 15.062" |
| Wheel Material | Steel |
| Wheel Type | Forward Curved |
| Wheel Width | 14 7/8" |
Shipping Info:
| Ship weight (kg) | 52.43 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8414901080 |
| Country of Origin | US |
Product Variants
| Model | Phase | Motor Hp | Outlet Height | Voltage | Discharge Width (in.) | Cfm @ 1.500-in. Sp | Bearing Type | Hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7D609 | 3 | 1/4 hp | 6 5/16" | 208-230/460V | - | - | Ball | 60 Hz | €941.20 | |
| 7HL79 | 1 | 1/4 hp | 6 5/16" | 115/208-230V | 9.187" | - | Ball | 60 Hz | €930.70 | |
| 7HL80 | 3 | - | 6 5/16" | 208-230/460V | 9.187" | - | Double Shielded Ball | 60 Hz | €920.38 | |
| 7HL81 | 1 | 1/3 hp | 6 5/16" | 115/208-230V | 9.187" | - | Ball | 60 Hz | €934.44 | |
| 7HL82 | 3 | 1/3 hp | 6 5/16" | 208-230/460V | 9.187" | - | Double Shielded Ball | 60 Hz | €978.95 | |
| 7HL83 | 1 | 1/2 hp | 6 5/16" | 115/208-230V | 9.187" | - | Ball | 60 Hz | €961.92 | |
| 7HL84 | 3 | 1/2 hp | 6 5/16" | 208-230/460V | 9.187" | - | Double Shielded Ball | 60 Hz | €1,271.01 |
