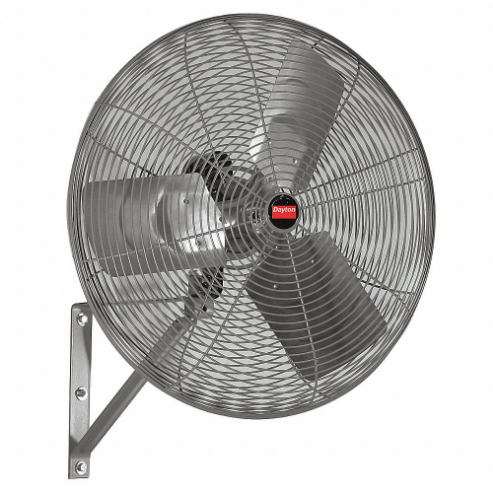

DAYTON 7DD00 Industrial Fan, 20 Inch Blade Dia., 3055/4700 cfm, 115V AC, 1/4 HP
Get it by Tuesday, Feb 17
10.00% off
€514.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fan |
| Air Flow | 3055/4700 CFM |
| Air Velocity @ 10 Ft. | 900/585 FPM |
| Air Velocity @ 20 Ft. | 580/375 FPM |
| Air Velocity @ 40 Ft. | 240/156 FPM |
| Air Velocity @ 60 Ft. | 155/100 FPM |
| Amps | 2.25/0.51A |
| Assembled | Yes |
| Assembly Required | No |
| Bearing Type | Ball |
| Blade Dia. | 20" |
| Blade Diameter | 20" |
| Blade Material | Aluminum |
| Cord Length | 10 ft. |
| Depth | 16 3/4" |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Accessory Style | Standard |
| Fan Cord Length | 10 ft. |
| Fan Housing Material | Steel |
| Fan Mounting Location | Ceiling, Post, Wall |
| Fan Style | Standard |
| Guard Material | Steel |
| Height | 23" |
| Hz | 60 Hz |
| Includes | Mounting Bolts, Safety Support Cable, Assembly Hardware |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 16 3/4" |
| Mobile/stationary | Stationary |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Hp | 1/4 hp |
| Motor Insulation | Class B |
| Motor Type | Permanent Split Capacitor |
| Number Of Blades | 3 |
| Number Of Speeds | 2 |
| Oscillating | Yes |
| Oscillating/non-oscillating | Oscillating |
| Oscillation | Oscillating |
| Outside Dia. | 23" |
| Phase | 1 |
| Product Type | Standard-Duty Industrial Fan |
| Rpm | 1075 RPM |
| Shaft Dia. | 1/2" |
| Sound Level | 76 dBA |
| Thermal Protection | Auto |
| Voltage | 115V AC |
| Watts | 198 W |
| Wheeled Base | Stationary |
| Width | 23" |
| Wire Guard Finish | Polyester Powder Coated |
Shipping Info:
| Ship weight (kg) | 17.38 |
| Ship height (cm) | 58.42 |
| Ship length (cm) | 42.55 |
| Ship width (cm) | 58.42 |
| Country of Origin | CN |
Product Variants
| Product | Model | Phase | Number Of Speeds | Motor Hp | Voltage | Blade Dia. | Mounting Location | Oscillating/non-oscillating | Sound Level | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
13V401 | 1 | 2 | 1/5 hp | - | 18" | Wall | Oscillating | 70 dBA, 66 dBA | €351.64 | |
|
13V402 | 1 | 2 | 1/5 hp | 120V AC | 20" | Wall | Oscillating | 68 dBA, 65 dBA | €408.45 | |
 |
1RWB4 | 1 | 2 | 1/4 hp | 120V AC | 30" | Ceiling, Wall | Non Oscillating | 77 dBA | €379.49 | |
 |
1VCH1 | 1 | 1 | 1/4 hp | 115/230V AC | 24" | Wall | Non Oscillating | 76 dBA | €1,971.79 | |
|
1VCH2 | 1 | 1 | 3/4 hp | 115/230V AC | 30" | Wall | Non Oscillating | 80 dBA | €1,749.83 | |
|
1VCH3 | 1 | 1 | 3/4 hp | 115/230V AC | 36" | Wall | Non Oscillating | 82 dBA | €2,507.68 | |
 |
1ZCN7 | 1 | 1 | 1/15 hp | 115V AC | 18" | Ceiling, Wall | Non Oscillating | 59 dBA | €257.15 |
