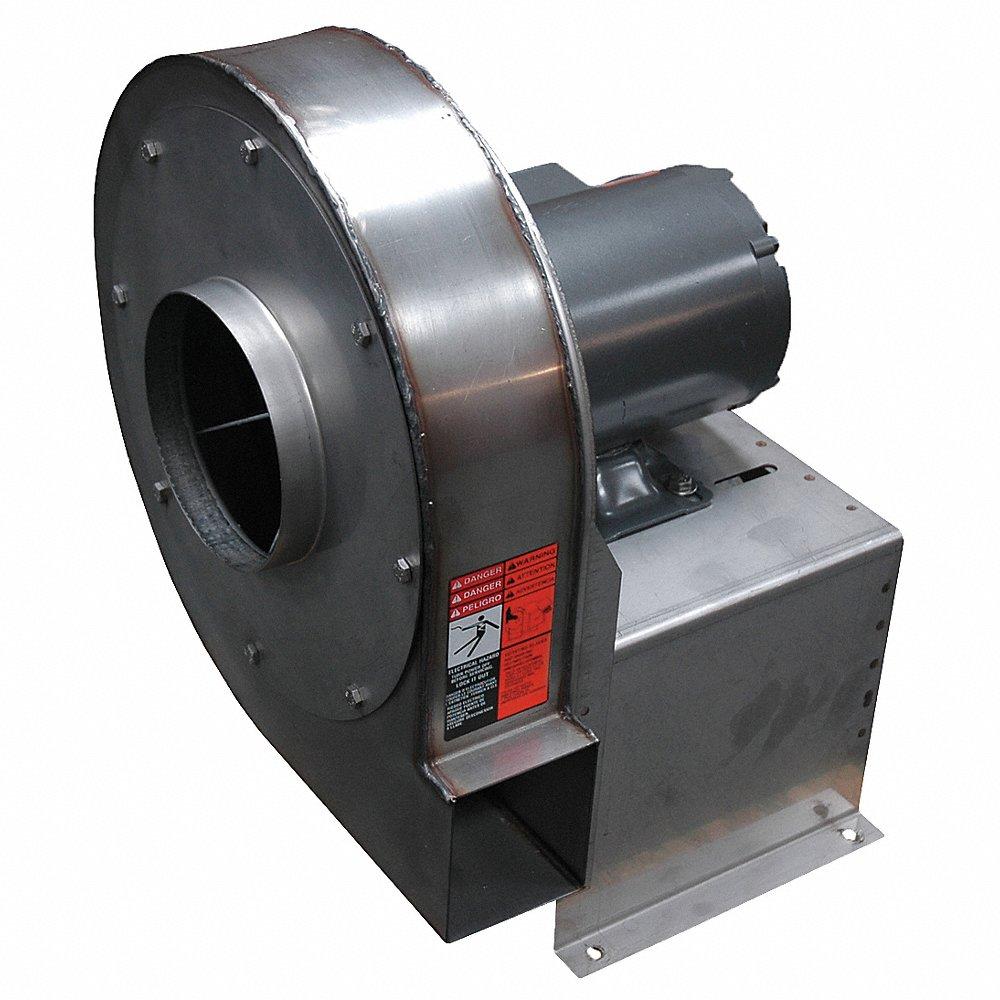

DAYTON 7DC25 High Pressure Blower, With Motor, 13 1/2 Inch Wheel Dia., 5 HP
Get it by Monday, Dec 22
10.00% off
€2.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | High Pressure Blower |
| Airflow @ 3.000 In Sp | 1832 CFM |
| Airflow @ 4.000 In Sp | 1741 CFM |
| Airflow @ 5.000 In Sp | 1647 CFM |
| Airflow @ 6.000 In Sp | 1547 CFM |
| Airflow @ 7.000 In Sp | 1438 CFM |
| Airflow @ 8.000 In Sp | 1319 CFM |
| Amps | 12.2/6.1A |
| Assembly | Unassembled |
| Drive Package With Motor Included? | No |
| Drive Type | Direct Drive |
| Flange Type | Non Flanged |
| Frequency | 60 Hz |
| Housing Material | Aluminum |
| Housing Material Finish | Aluminum |
| Housing Material Gauge | 16 ga. |
| Inlet Diameter | 8" |
| Maximum Ambient Temperature | 104°F |
| Maximum Fan Speed | 3520 RPM |
| Maximum Inlet Air Temperature | 180°F |
| Maximum Static Pressure | 8 in. wc |
| Motor Duty Class | Continuous |
| Motor Enclosure | Open Dripproof |
| Motor Frame Designation | 182T/184T |
| Motor Horsepower | 5 hp |
| Motor Insulation Class | Class F |
| Motor Speed | 3520 RPM |
| Motor Type | Capacitor-Start Capacitor-Run |
| Nameplate Voltage | 208-230/460V AC |
| Number Of Inlets | 1 |
| Number Of Speeds | 1 |
| Outlet Height | 7 1/8" |
| Outlet Shape | Rectangular |
| Outlet Width | 5 3/4" |
| Overall Depth | 18 7/8" |
| Overall Height | 23 1/8" |
| Overall Width | 17 5/8" |
| Phase | 3 |
| Rotation | CW |
| Wheel Diameter | 13 1/2" |
| Wheel Material | Aluminum |
| Wheel Type | Radial |
| Wheel Width | 4 3/8" |
Shipping Info:
| Ship weight (kg) | 49.28 |
| Ship height (cm) | 58.74 |
| Ship length (cm) | 47.94 |
| Ship width (cm) | 44.77 |
Product Variants
| Model | Outlet Height | Outlet Width | Rotation | Housing Material | Phase | Inlet Dia. | Wheel Diameter | Motor Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2C940 | 3" | 3" | CW/CCW | Steel | - | 4" | - | - | €265.55 | |
| 4C108 | 4" | 3 1/2" | CW/CCW | Steel | - | 6" | - | - | €330.61 | |
| 4C129 | 4" | 3 1/2" | CW | Steel | - | 6" | - | - | €830.45 | |
| 4C329 | 5" | 4" | CW/CCW | Steel | - | 7" | - | - | €448.21 | |
| 4C330 | 7 1/8" | 5 3/4" | CW/CCW | Steel | - | 8" | - | - | €618.49 | |
| 7AV04 | 4" | 3 1/2" | CW | Steel | 3 | 6" | - | 1/2 hp | €1,337.61 | |
| 7AV05 | 4" | 3 1/2" | CW | Steel | 3 | 6" | 10 5/8" | 1/2 hp | €1,347.74 |
