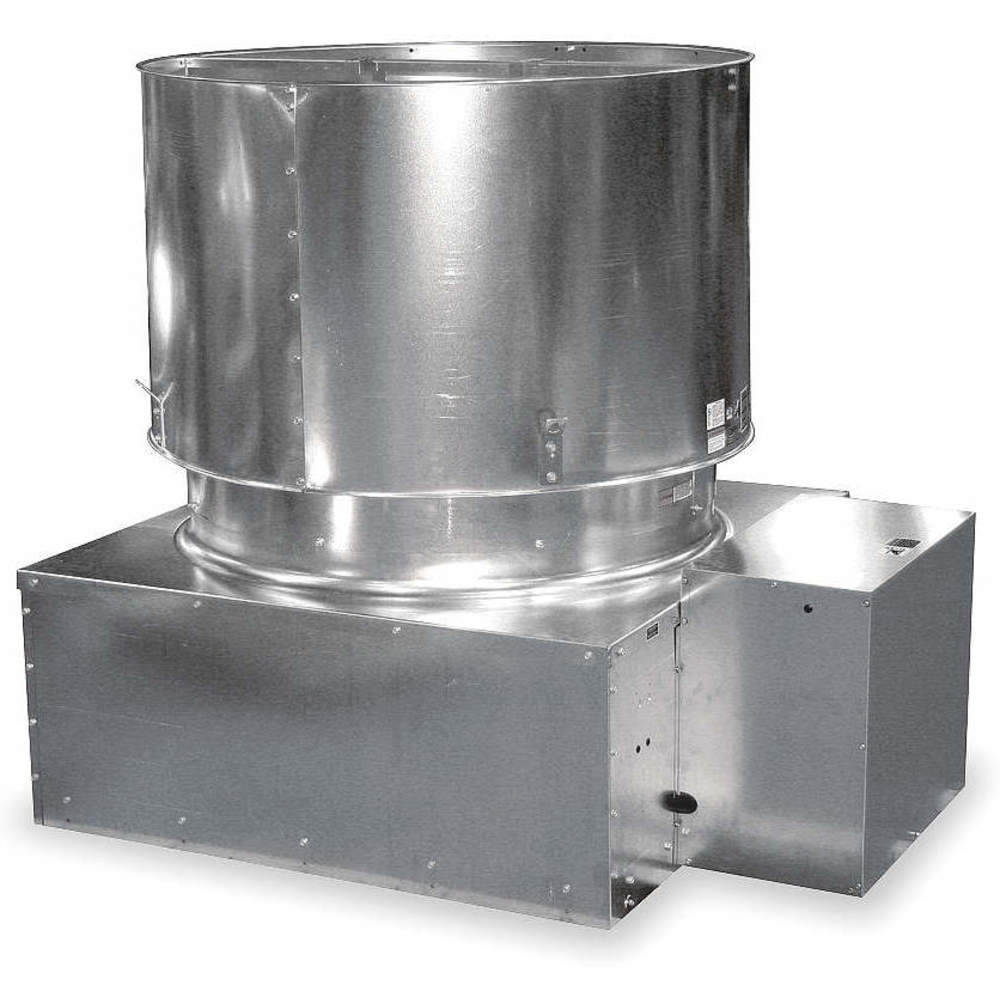

DAYTON 7A873 Exhaust Vent 30 In
Get it by Monday, Dec 22
10.00% off
€3,021.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Exhaust Ventilator |
| Amps | 4.6-4.8/2.4A |
| Application | Industrial And Commercial Buildings Such As Warehouses, Manufacturing Facilities, Foundries And Laboratories |
| Assembled/unassembled | Unassembled |
| Assembly | Unassembled |
| Base Diameter | Not Applicable |
| Base Height | 1 3/4" |
| Base Length | 38 3/4" |
| Base Shape | Square |
| Base Size - Roof Ventilators | 38 3/4" x 38 3/4" |
| Base Width | 38 3/4" |
| Bearing Type | Regreaseable Pillow Block |
| Blade Design | Swept Steeply Pitched |
| Blade Dia. | 30" |
| Blade Material | Steel |
| Brake Horsepower | 1 81/100 hp |
| Cfm @ 0.000-in. Sp | 14001 CFM |
| Cfm @ 0.125-in. Sp | 12739 CFM |
| Cfm @ 0.250-in. Sp | 11566 CFM |
| Cfm @ 0.375-in. Sp | 10270 CFM |
| Cfm Range | 7256-15407 CFM |
| Compatible Curb Grainger Part No. | 2ZV84, 3AZJ1, 4C455 |
| Dimension B | 32 1/2" |
| Drive Package Included | Yes |
| Drive Package With Motor Included | Yes |
| Drive Type | Belt Drive |
| Drive Type - Roof Ventilators | Belt Drive |
| Electrical Connection | Power Cord |
| Exhaust Airflow @ 0.000 In Sp | 14001 CFM |
| Exhaust Airflow @ 0.100 In Sp | 14001 CFM |
| Exhaust Airflow @ 0.125 In Sp | 12739 CFM |
| Exhaust Airflow @ 0.375 In Sp | 10270 CFM |
| Fan Speed | 876 RPM |
| Features | Lifting Lugs Are Provided |
| For Air Type | Clean Air |
| For High-static Pressure Applications | No |
| Frequency | 60 Hz |
| High-efficiency Motor | No |
| Housing Finish | Galvanized |
| Housing Length | 37.3" |
| Housing Material | Steel |
| Housing Width | 37.3" |
| Hp | 1 1/2 hp |
| Includes | Drive Package |
| Includes Drive Package | Yes |
| Includes Drive Package With Motor | Yes |
| Includes Motor | Yes |
| Max. Bhp | 1 81/100 bhp |
| Max. Inlet Temp. | 120°F |
| Maximum Fan Speed | 876 RPM |
| Maximum Static Pressure | 0.375 in. wc |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Horsepower | 1 1/2 hp |
| Motor Hz | 60 |
| Motor Speed | 964 RPM |
| Motor Voltage | 208-220/440V |
| Mount Type | Roof Curb |
| Nameplate Voltage | 208-230/460V AC |
| Number Of Blades | 5 |
| Number Of Speeds | 1 |
| Overall Depth | 38 3/4" |
| Overall Dia. | 37 3/8" |
| Overall Height | 30" |
| Overall Width | 38 3/4" |
| Phase | 3 |
| Propeller Material | Steel |
| Propeller Shaft Diameter | 1" |
| Requires | Roof Curb For New Installations |
| Resistance Properties | Weather Resistant |
| Rpm | 964 RPM |
| Rpm Range | 454-964 RPM |
| Safety Features | Reinforced Windband |
| Shaft Dia. Propeller End | 1" |
| Shaft Dia. Propeller End (in.) | 1 |
| Shaft Dia. Sheave End | 1" |
| Sones @ 0.125-in. Sp @ 5 Ft. | 24 sones |
| Sones @ 0.250-in. Sp @ 5 Ft. | 24 sones |
| Sound Level | 24.0 Sones @ 0.125 in Sp And 5 Ft, 24.0 Sones @ 0.250 in Sp And 5 Ft, 25.0 Sones @ 0.000 in Sp And 5 Ft, 26.0 Sones @ 0.375 in Sp And 5 Ft |
| Spark Resistant Construction Type | A |
| Speed Control | No |
| Type | Axial Upblast, With Drive Package |
Shipping Info:
| Ship weight (kg) | 150.52 |
| Ship height (cm) | 76.2 |
| Ship length (cm) | 98.43 |
| Ship width (cm) | 98.43 |
| HS code | 8414599080 |
| Country of Origin | US |
Product Variants
| Model | Phase | Overall Dia. | Housing Width | Cfm @ 0.000-in. Sp | Max. Bhp | Motor Voltage | Fan Speed | Sones @ 0.250-in. Sp @ 5 Ft. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4YY24 | - | 40" | 37 2/5" | - | - | - | - | - | €2,219.84 | |
| 7A857 | 1 | 37 3/8" | 37.3" | 11108 CFM | 9/10 bhp | 115/230V | 695 RPM | 18.1 sones | €2,975.45 | |
| 7A858 | 1 | 37 3/8" | 37.3" | 12227 CFM | 1 1/5 bhp | 115/230V | 765 RPM | 19.8 sones | €3,206.27 | |
| 7A859 | 1 | 37 3/8" | 37.3" | 14001 CFM | 1 81/100 bhp | 115/230V | 876 RPM | 24 sones | €3,488.14 | |
| 7A860 | 1 | 37 3/8" | 37.3" | 15408 CFM | 2 41/100 bhp | 115/230V | 964 RPM | 30 sones | €4,016.17 | |
| 7A871 | 3 | 37 3/8" | 37.3" | 11108 CFM | 9/10 bhp | 208-220/440V | 695 RPM | 18.1 sones | €2,939.99 | |
| 7A872 | 3 | 37 3/8" | 37.3" | 12227 CFM | 1 1/5 bhp | 208-220/440V | 765 RPM | 19.8 sones | €3,254.83 |
