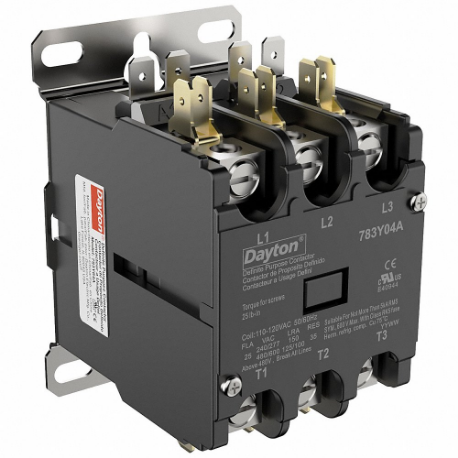

DAYTON 783Y04 Definite Purpose Magnetic Contactor, 3 Poles, 25 A Full Load Amps-Inductive, 120VAC
Item: CR2WTYModel: 783Y04
7 In Stock
Ships within 2 days via
5.00% off
€38.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Auxiliary Contact Module Capacity | 2 |
| Coil Voltage | 120V AC |
| Contact Material | Silver Cadmium Oxide |
| Contactor Frame Size | Standard |
| Depth | 3.74" |
| Electrical Operating Durability | 200000 |
| Enclosure Nema Rating | No Enclosure |
| Fluorescent Lighting Amps Rating | Not Applicable |
| Frame Size | Not Applicable |
| Frequency | 50/60 Hz |
| Full Load Amps-resistive | 35A |
| Full Load Inductive Amps | 25A |
| Height | 2.95" |
| Hp @ 1 Ph | 5 hp |
| Hp @ 1 Ph-240v | 5 hp |
| Hp @ 1 Phase-120v | 2 hp |
| Hp @ 1 Phase-240v | 3 hp |
| Hp @ 3 Phase-208v | 5 hp , 7 1/2 hp |
| Hp @ 3 Phase-240v | 10 hp , 5 hp |
| Hp @ 3 Phase-480v | 15 hp , 7 1/2 hp |
| Hp @ 3 Phase-575v | 7 1/2 hp |
| Hp @ 3 Phase-600v | 20 hp |
| Included | Not Applicable |
| Inductive Full Load Amps | 25A |
| Input Control Type | Not Applicable |
| Ip Rating | Not Applicable |
| Led Lighting Amps Rating | Not Applicable |
| Locked Rotor Load | 100A @ 600V AC, 125A @ 480V AC, 150A @ 240/277V AC |
| Main Pole Contact Form | 3NO |
| Max. Operating Temp. | 158°F |
| Max. Voltage | 600V AC |
| Mechanical Operating Durability | 500000 |
| Min. Operating Temp. | -40°F |
| Mounting Hole Dia. | Not Applicable |
| Mounting Hole Distance | 3.27" |
| Mounting Hole Distance Width | 1 3/4" |
| Mounting Hole Distance-height | 3.27" |
| Mounting Hole Width | 1 3/4" |
| Mounting Postion | Horizontal, Vertical |
| Mounting Style | Through Panel |
| Nema Enclosure Material | Not Applicable |
| No. Of Normally Closed Main Contacts | 0 |
| No. Of Normally Open Main Contacts | 3 |
| No. Of Terminals | 8 |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Overall Depth | 3.74" |
| Overall Height | 2.95" |
| Overall Width | 2.37" |
| Phase | 3 |
| Resistance Properties | Not Applicable |
| Resistive Full Load Amps | 35A |
| Response Time | 20 ms |
| Reversible | No |
| Reversing Capability | Non Reversing |
| Status Indicator | Mechanical Flag |
| Terminal Connection Type | Box Lugs |
| Tungsten Lighting Amps Rating | Not Applicable |
| Width | 2.37" |
| Wire Termination Type | Box Lug |
Shipping Info:
| Ship weight (kg) | 0.48 |
| Ship height (cm) | 7.49 |
| Ship length (cm) | 9.5 |
| Ship width (cm) | 6.02 |
| Country of Origin | CN |
Product Variants
| Model | No. Of Poles | Coil Voltage | Hp @ 1 Phase-120v | Overall Width | Overall Depth | Overall Height | Hp @ 3 Phase-480v | Mounting Postion | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6GNP3 | 1 | 24V AC | 1 hp | 2.05" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | €35.47 | |
| 6GNP4 | 1 | 120V AC | 1 hp | 2.05" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | €53.59 | |
| 6GNP5 | 1 | 24V AC | 1 hp | 2.05" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | €36.97 | |
| 6GNP6 | 2 | 208/240V AC | 2 hp | 1.97" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | €50.80 | |
| 6GNP7 | 2 | 24V AC | 2 hp | 1.97" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | €50.80 | |
| 6GNP8 | 2 | 208/240V AC | 2 hp | 1.97" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | €73.82 | |
| 6GNP9 | 2 | 24V AC | 2 hp | 1.97" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | €73.82 |
