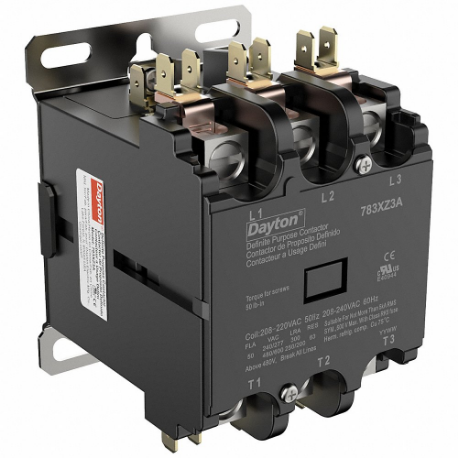

DAYTON 783XZ3 Definite Purpose Magnetic Contactor, 3 Poles, 50 A Full Load Amps-Inductive, 208/240VAC

Item: CR2WUVModel: 783XZ3

7 In Stock

Ships within 2 days via

~~€95.47~~

10.00% off

€85.92 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Contactor
Auxiliary Contact Module Capacity	2
Coil Voltage	208/240V AC
Contact Material	Silver Cadmium Oxide
Contactor Frame Size	Standard
Depth	4 1/25"
Electrical Operating Durability	200000
Enclosure Nema Rating	No Enclosure
Fluorescent Lighting Amps Rating	Not Applicable
Frame Size	Not Applicable
Frequency	50/60 Hz
Full Load Current - Resistive	63A
Full Load Inductive Amps	50A
Height	3.15"
Horsepower @ Single Phase	10 hp
Horsepower @ Single Phase - 120v Ac	3 hp
Horsepower @ Single Phase - 240v Ac	10 hp
Horsepower @ Three Phase - 208v Ac	10 hp
Horsepower @ Three Phase - 600v Ac	25 hp
Hp @ 1 Phase - 120v	3 hp
Hp @ 1 Phase - 240v	5 hp
Hp @ 3 Phase - 208v	15 hp
Hp @ 3 Phase - 240v	15 hp
Hp @ 3 Phase - 480v	20 hp , 25 hp
Hp @ 3 Phase - 575v	20 hp
Includes	Not Applicable
Inductive Full Load Amps	50A
Input Control Type	Not Applicable
Ip Rating	Not Applicable
Led Lighting Current Rating	Not Applicable
Locked Rotor Load	200A @ 600V AC, 250A @ 480V AC, 300A @ 240/277V AC
Main Pole Contact Form	3NO
Maximum Operating Temperature	158°F
Maximum Voltage Rating	600V AC
Mechanical Operating Durability	500000
Minimum Operating Temperature	-40°F
Mounting Hole Dia.	Not Applicable
Mounting Hole Distance	3 1/4"
Mounting Hole Distance - Height	3.25"
Mounting Hole Distance - Width	1.86"
Mounting Hole Width	1.86"
Mounting Postion	Horizontal, Vertical
Mounting Style	Through Panel
Nema Enclosure Material	Not Applicable
No. Of Terminals	8
Nominal Coil Voltage @ 60hz	208-240V AC
Number Of Normally Closed Main Contacts	0
Number Of Normally Open Main Contacts	3
Number Of Poles	3
Overall Depth	4 1/25"
Overall Height	3.15"
Overall Width	2 19/25"
Phase	Three
Resistance Properties	Not Applicable
Resistive Full Load Amps	63A
Response Time	20 ms
Reversible	No
Reversing Capability	Non-reversing
Status Indicator	Mechanical Flag
Terminal Connection Type	Box Lugs
Tungsten Lighting Current Rating	Not Applicable
Width	2 19/25"
Wire Termination Type	Box Lug

Shipping Info:

Ship weight (kg)	0.68
Ship height (cm)	8
Ship length (cm)	10.26
Ship width (cm)	7.01
Country of Origin	CN

Product Variants

Model	Hp @ 1 Phase - 240v	Hp @ 3 Phase - 240v	Hp @ 3 Phase - 480v	Depth	Hp @ 1 Phase - 120v	Hp @ 3 Phase - 208v	Inductive Full Load Amps	Resistive Full Load Amps	Price
783Y04	3 hp	5 hp	15 hp	3.74"	2 hp	5 hp	25A	35A	€42.73
783Y03	3 hp	5 hp	15 hp	3.74"	2 hp	5 hp	25A	35A	€42.88
783Y02	3 hp	5 hp	15 hp	3.74"	2 hp	5 hp	25A	35A	€44.76
783Y01	3 hp	7 1/2 hp	15 hp	3.74"	2 hp	7 1/2 hp	32A	40A	€46.39
783XZ9	3 hp	7 1/2 hp	15 hp	3.74"	2 hp	7 1/2 hp	32A	40A	€43.69
783XZ8	3 hp	7 1/2 hp	15 hp	3.74"	2 hp	7 1/2 hp	32A	40A	€43.69
783XZ7	5 hp	10 hp	15 hp	3.74"	3 hp	10 hp	40A	50A	€83.15
