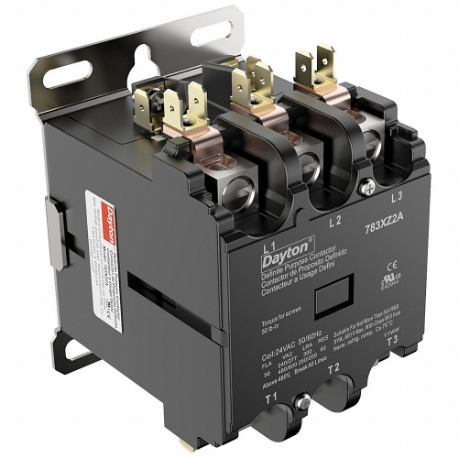

DAYTON 783XZ2 Definite Purpose Magnetic Contactor, 3 Poles, 50 A Full Load Amps-Inductive, 24VAC
Item: CR2WUJModel: 783XZ2
7 In Stock
Ships within 2 days via
10.00% off
€85.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Coil Voltage | 24V AC |
| Contact Material | Silver Cadmium Oxide |
| Depth | 4 1/25" |
| Enclosure Nema Rating | No Enclosure |
| Fluorescent Lighting Amps Rating | Not Applicable |
| Frame Size | Not Applicable |
| Frequency | 50/60 Hz |
| Full Load Inductive Amps | 50A |
| Height | 3.15" |
| Horsepower @ Single Phase | 10 hp |
| Horsepower @ Single Phase - 120v Ac | 3 hp |
| Horsepower @ Three Phase - 208v Ac | 10 hp |
| Horsepower @ Three Phase - 600v Ac | 25 hp |
| Hp @ 1 Phase - 120v | 3 hp |
| Hp @ 1 Phase - 240v | 5 hp |
| Hp @ 3 Phase - 208v | 15 hp |
| Hp @ 3 Phase - 240v | 15 hp |
| Hp @ 3 Phase - 480v | 20 hp , 25 hp |
| Hp @ 3 Phase - 575v | 20 hp |
| Includes | Not Applicable |
| Inductive Full Load Amps | 50A |
| Input Control Type | Not Applicable |
| Ip Rating | Not Applicable |
| Led Lighting Current Rating | Not Applicable |
| Mounting Hole Dia. | Not Applicable |
| Mounting Hole Distance | 3 1/4" |
| Mounting Hole Width | 1.86" |
| Mounting Postion | Horizontal, Vertical |
| Mounting Style | Through Panel |
| Nema Enclosure Material | Not Applicable |
| No. Of Terminals | 8 |
| Number Of Normally Closed Main Contacts | 0 |
| Number Of Normally Open Main Contacts | 3 |
| Number Of Poles | 3 |
| Overall Depth | 4 1/25" |
| Overall Height | 3.15" |
| Overall Width | 2 19/25" |
| Resistance Properties | Not Applicable |
| Resistive Full Load Amps | 63A |
| Response Time | 20 ms |
| Reversible | No |
| Status Indicator | Mechanical Flag |
| Terminal Connection Type | Box Lugs |
| Tungsten Lighting Current Rating | Not Applicable |
| Width | 2 19/25" |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 8 |
| Ship length (cm) | 10.26 |
| Ship width (cm) | 7.01 |
| Country of Origin | CN |
Product Variants
| Product | Model | Hp @ 1 Phase - 240v | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 480v | Depth | Hp @ 1 Phase - 120v | Hp @ 3 Phase - 208v | Inductive Full Load Amps | Resistive Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
783Y04 | 3 hp | 5 hp | 15 hp | 3.74" | 2 hp | 5 hp | 25A | 35A | €42.73 | |
 |
783Y03 | 3 hp | 5 hp | 15 hp | 3.74" | 2 hp | 5 hp | 25A | 35A | €42.88 | |
 |
783Y02 | 3 hp | 5 hp | 15 hp | 3.74" | 2 hp | 5 hp | 25A | 35A | €44.76 | |
 |
783Y01 | 3 hp | 7 1/2 hp | 15 hp | 3.74" | 2 hp | 7 1/2 hp | 32A | 40A | €46.39 | |
 |
783XZ9 | 3 hp | 7 1/2 hp | 15 hp | 3.74" | 2 hp | 7 1/2 hp | 32A | 40A | €43.69 | |
 |
783XZ8 | 3 hp | 7 1/2 hp | 15 hp | 3.74" | 2 hp | 7 1/2 hp | 32A | 40A | €43.69 | |
 |
783XZ7 | 5 hp | 10 hp | 15 hp | 3.74" | 3 hp | 10 hp | 40A | 50A | €83.15 |
