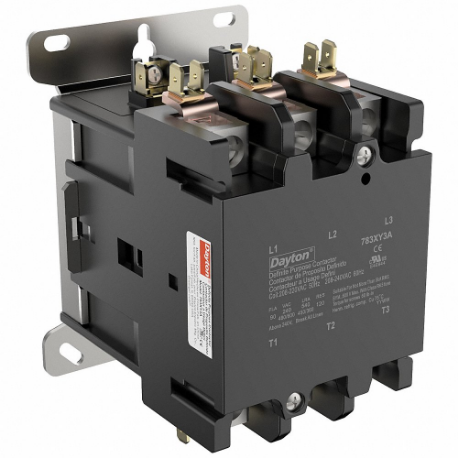

DAYTON 783XY3 Definite Purpose Magnetic Contactor, 3 Poles, 90 A Full Load Amps-Inductive, 208/240VAC
Item: CR2WUTModel: 783XY3
7 In Stock
Ships within 2 days via
10.00% off
€257.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Auxiliary Contact Module Capacity | 2 |
| Coil Voltage | 208/240V AC |
| Contact Material | Silver Cadmium Oxide |
| Contactor Frame Size | Standard |
| Depth | 5.03" |
| Electrical Operating Durability | 200000 |
| Enclosure Nema Rating | No Enclosure |
| Fluorescent Lighting Amps Rating | Not Applicable |
| Frame Size | Not Applicable |
| Frequency | 50/60 Hz |
| Full Load Current - Resistive | 120A |
| Full Load Inductive Amps | 90A |
| Height | 4.31" |
| Horsepower @ Single Phase | 20 hp |
| Horsepower @ Single Phase - 120v Ac | 7 1/2 hp |
| Horsepower @ Single Phase - 240v Ac | 20 hp |
| Horsepower @ Three Phase - 208v Ac | 25 hp |
| Horsepower @ Three Phase - 600v Ac | 50 hp |
| Hp @ 1 Phase - 120v | 7 1/2 hp |
| Hp @ 1 Phase - 240v | 15 hp |
| Hp @ 3 Phase - 208v | 30 hp |
| Hp @ 3 Phase - 240v | 30 hp |
| Hp @ 3 Phase - 480v | 50 hp |
| Hp @ 3 Phase - 575v | 50 hp |
| Includes | Not Applicable |
| Inductive Full Load Amps | 90A |
| Input Control Type | Not Applicable |
| Ip Rating | Not Applicable |
| Led Lighting Current Rating | Not Applicable |
| Locked Rotor Load | 360A @ 600V AC, 450A @ 480V AC, 540A @ 240V AC |
| Main Pole Contact Form | 3NO |
| Maximum Operating Temperature | 158°F |
| Maximum Voltage Rating | 600V AC |
| Mechanical Operating Durability | 500000 |
| Minimum Operating Temperature | -40°F |
| Mounting Hole Dia. | Not Applicable |
| Mounting Hole Distance | 4.53" |
| Mounting Hole Distance - Height | 4.53" |
| Mounting Hole Distance - Width | 2 17/25" |
| Mounting Hole Width | 2 17/25" |
| Mounting Postion | Horizontal, Vertical |
| Mounting Style | Through Panel |
| Nema Enclosure Material | Not Applicable |
| No. Of Terminals | 8 |
| Nominal Coil Voltage @ 60hz | 208-240V AC |
| Number Of Normally Closed Main Contacts | 0 |
| Number Of Normally Open Main Contacts | 3 |
| Number Of Poles | 3 |
| Overall Depth | 5.03" |
| Overall Height | 4.31" |
| Overall Width | 3 1/2" |
| Phase | Three |
| Resistance Properties | Not Applicable |
| Resistive Full Load Amps | 120A |
| Response Time | 30 ms |
| Reversible | No |
| Reversing Capability | Non-reversing |
| Status Indicator | No Indicator |
| Terminal Connection Type | Box Lugs |
| Tungsten Lighting Current Rating | Not Applicable |
| Width | 3 1/2" |
| Wire Termination Type | Box Lug |
Shipping Info:
| Ship weight (kg) | 1.65 |
| Ship height (cm) | 10.95 |
| Ship length (cm) | 12.78 |
| Ship width (cm) | 8.89 |
| Country of Origin | CN |
Product Variants
| Product | Model | Hp @ 1 Phase - 240v | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 480v | Depth | Hp @ 1 Phase - 120v | Hp @ 3 Phase - 208v | Inductive Full Load Amps | Resistive Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
783Y04 | 3 hp | 5 hp | 15 hp | 3.74" | 2 hp | 5 hp | 25A | 35A | €42.73 | |
 |
783Y03 | 3 hp | 5 hp | 15 hp | 3.74" | 2 hp | 5 hp | 25A | 35A | €42.88 | |
 |
783Y02 | 3 hp | 5 hp | 15 hp | 3.74" | 2 hp | 5 hp | 25A | 35A | €44.76 | |
 |
783Y01 | 3 hp | 7 1/2 hp | 15 hp | 3.74" | 2 hp | 7 1/2 hp | 32A | 40A | €46.39 | |
 |
783XZ9 | 3 hp | 7 1/2 hp | 15 hp | 3.74" | 2 hp | 7 1/2 hp | 32A | 40A | €43.69 | |
 |
783XZ8 | 3 hp | 7 1/2 hp | 15 hp | 3.74" | 2 hp | 7 1/2 hp | 32A | 40A | €43.69 | |
 |
783XZ7 | 5 hp | 10 hp | 15 hp | 3.74" | 3 hp | 10 hp | 40A | 50A | €83.15 |
