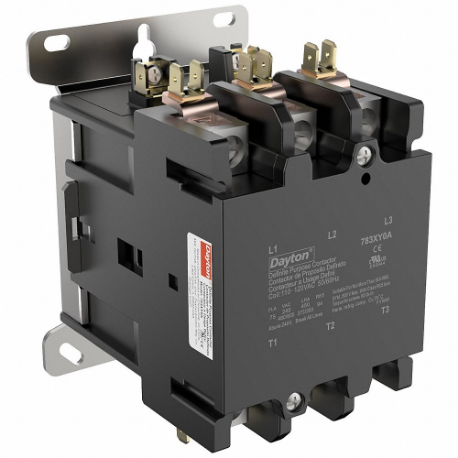

DAYTON 783XY0 Definite Purpose Magnetic Contactor, 3 Poles, 75 A Full Load Amps-Inductive, 120VAC
Item: CR2WUNModel: 783XY0
7 In Stock
Ships within 2 days via
5.00% off
€223.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Coil Voltage | 120V AC |
| Contact Material | Silver Cadmium Oxide |
| Depth | 5.03" |
| Enclosure Nema Rating | No Enclosure |
| Fluorescent Lighting Amps Rating | Not Applicable |
| Frame Size | Not Applicable |
| Frequency | 50/60 Hz |
| Full Load Inductive Amps | 75A |
| Height | 4.31" |
| Hp @ 1 Ph | 15 hp |
| Hp @ 1 Phase-240v | 15 hp |
| Hp @ 3 Phase-208v | 20 hp , 25 hp |
| Hp @ 3 Phase-240v | 25 hp |
| Hp @ 3 Phase-480v | 40 hp |
| Hp @ 3 Phase-575v | 40 hp |
| Hp @ 3 Phase-600v | 40 hp |
| Included | Not Applicable |
| Inductive Full Load Amps | 75A |
| Input Control Type | Not Applicable |
| Ip Rating | Not Applicable |
| Led Lighting Amps Rating | Not Applicable |
| Mounting Hole Dia. | Not Applicable |
| Mounting Hole Distance | 4.53" |
| Mounting Hole Width | 2 17/25" |
| Mounting Postion | Horizontal, Vertical |
| Mounting Style | Through Panel |
| Nema Enclosure Material | Not Applicable |
| No. Of Normally Closed Main Contacts | 0 |
| No. Of Normally Open Main Contacts | 3 |
| No. Of Poles | 3 |
| No. Of Terminals | 8 |
| Overall Depth | 5.03" |
| Overall Height | 4.31" |
| Overall Width | 3 1/2" |
| Resistance Properties | Not Applicable |
| Resistive Full Load Amps | 94A |
| Response Time | 30 ms |
| Reversible | No |
| Status Indicator | No Indicator |
| Terminal Connection Type | Box Lugs |
| Tungsten Lighting Amps Rating | Not Applicable |
| Width | 3 1/2" |
Shipping Info:
| Ship weight (kg) | 1.67 |
| Ship height (cm) | 10.95 |
| Ship length (cm) | 12.78 |
| Ship width (cm) | 8.89 |
| Country of Origin | CN |
Product Variants
| Model | No. Of Poles | Coil Voltage | Overall Width | Overall Depth | Overall Height | Hp @ 3 Phase-480v | Mounting Postion | Hp @ 1 Phase-240v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6GNP3 | 1 | 24V AC | 2.05" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | 2 hp | €33.11 | |
| 6GNP4 | 1 | 120V AC | 2.05" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | 2 hp | €50.01 | |
| 6GNP5 | 1 | 24V AC | 2.05" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | 2 hp | €34.50 | |
| 6GNP6 | 2 | 208/240V AC | 1.97" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | 3 hp | €47.41 | |
| 6GNP7 | 2 | 24V AC | 1.97" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | 3 hp | €47.41 | |
| 6GNP8 | 2 | 208/240V AC | 1.97" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | 3 hp | €68.90 | |
| 6GNP9 | 2 | 24V AC | 1.97" | 3.19" | 2 8/25" | Not Rated | Horizontal, Vertical | 3 hp | €68.90 |
