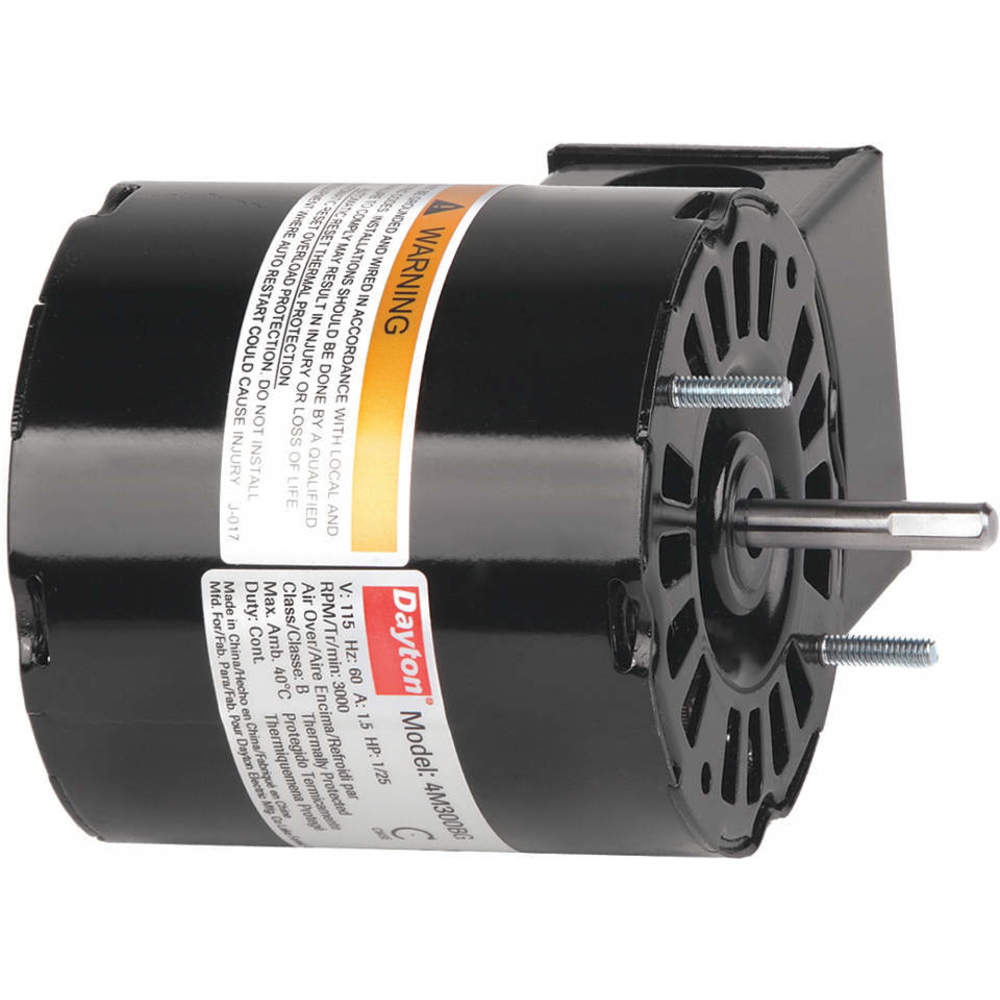

DAYTON 71218134M Hvac Motor 1/25 Hp 3000 Rpm 115v 3.3
Item: AD8TGYModel: 71218134MCross Ref: 4M300
7 In Stock
Ships within 2 days via
5.00% off
€111.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | HVAC Motor |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Capacitor Required | No |
| Cord Length | 6" |
| Duty Cycle | Continuous |
| Frame | 3.3" |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.37A |
| Hp | 1/25 hp |
| Included | 5 Cu. In. Junction Box |
| Insulation Class | Class B |
| Length Less Shaft | 3 5/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC, R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Type | Ring, Stud |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Direct Drive Fan, Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Stud |
| Mounting Pattern | 1 |
| Mounting Stud Location | 2/Shaft End |
| Mounting Stud Pattern | 2 7/8" |
| Mounting Type | Extended Studs |
| Nameplate Speed | 3000 RPM |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 2 |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Length | 1 1/4" |
| Shaft Type | Flat |
| Stud Location | Shaft End |
| Stud Pattern | 2 7/8" |
| Stud/base Mtg. Pattern | 2-7/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 14.48 |
| Ship width (cm) | 10.92 |
| HS code | 8501106020 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Frequency | Hp | Mounting Type | Motor Enclosure Design | Full Load Amps | Motor Type | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
71732300M | 230V AC | 60 Hz | 1/20 hp | Extended Studs | Totally Enclosed Fan Cooled | 1A | Shaded Pole | Clockwise Shaft End | €158.84 | |
 |
71636952M | 115V AC | 60 Hz | 1/20 hp | Extended Studs | Open Air Over | 2.1A | Shaded Pole | Counter Clockwise Lead End | €200.29 | |
 |
71632454M | 115V AC | 60 Hz | 1/20 hp | Extended Studs | Totally Enclosed Fan Cooled | 1.8A | Shaded Pole | Counter Clockwise Shaft End | €171.18 | |
 |
71632379M | 115V AC | 60 Hz | 1/15 hp | Extended Studs | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | Counter Clockwise Shaft End | €200.77 | |
 |
71626626M | 115V AC | 60 Hz | 1/8 hp | Extended Studs | - | 1.3A | Permanent Split Capacitor | CW, CCW | €204.80 | |
 |
71632766M | 115V AC | 60 Hz | 1/15 hp | Extended Studs | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | Clockwise Shaft End | €204.90 | |
 |
71632768M | 115V AC | 60 Hz | 1/15 hp | Cradle Base | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | Clockwise Shaft End | €258.91 |
