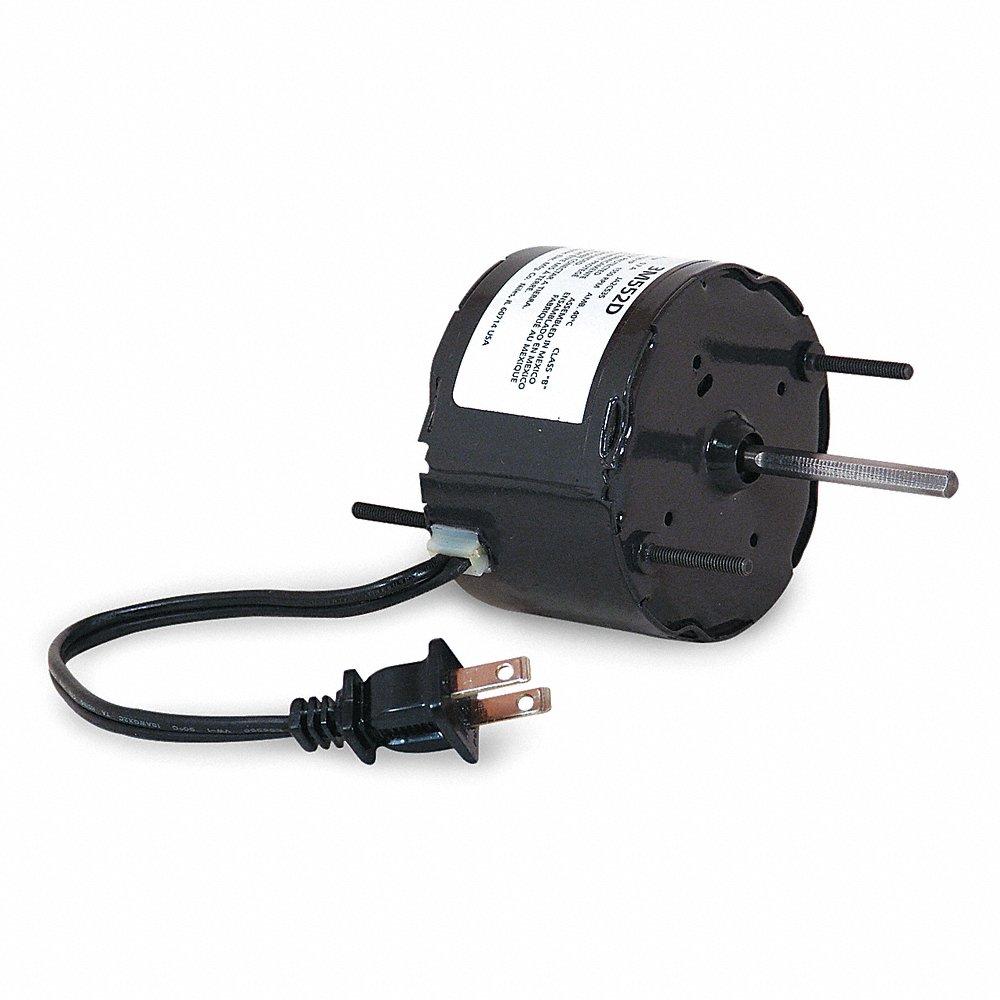

DAYTON 71217022M HVAC Motor, Totally Enclosed Air-Over, 1/100 HP, 3000 RPM, 115V AC
Item: CJ2LXEModel: 71217022MCross Ref: 4M198
7 In Stock
Ships within 2 days via
5.00% off
€97.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | HVAC Motor |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Capacitor Required | No |
| Cord Length | 9" |
| Duty Cycle | Continuous |
| Frame | 3.3" |
| Frequency | 60 Hz |
| Full Load Amps | 0.6A |
| Hp | 1/100 hp |
| Included | Cordset, Plug |
| Ins. Class | Class B |
| Length Less Shaft | 3 3/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC, R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Type | Extended Studs |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Direct Drive Fan, Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting Stud Location | 2/Both Ends |
| Mounting Type | Extended Studs |
| Nameplate Speed | 3000 RPM |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 2 |
| Phase | 1 |
| Plug Type | 2 Prong Non-Polarized |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Length | 2" |
| Stud Location | Both Ends |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 1.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Frequency | Hp | Mounting Type | Motor Enclosure Design | Full Load Amps | Motor Type | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
71732300M | 230V AC | 60 Hz | 1/20 hp | Extended Studs | Totally Enclosed Fan Cooled | 1A | Shaded Pole | Clockwise Shaft End | €158.84 | |
 |
71636952M | 115V AC | 60 Hz | 1/20 hp | Extended Studs | Open Air Over | 2.1A | Shaded Pole | Counter Clockwise Lead End | €200.29 | |
 |
71632454M | 115V AC | 60 Hz | 1/20 hp | Extended Studs | Totally Enclosed Fan Cooled | 1.8A | Shaded Pole | Counter Clockwise Shaft End | €171.18 | |
 |
71632379M | 115V AC | 60 Hz | 1/15 hp | Extended Studs | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | Counter Clockwise Shaft End | €200.77 | |
 |
71626626M | 115V AC | 60 Hz | 1/8 hp | Extended Studs | - | 1.3A | Permanent Split Capacitor | CW, CCW | €204.80 | |
 |
71632766M | 115V AC | 60 Hz | 1/15 hp | Extended Studs | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | Clockwise Shaft End | €204.90 | |
 |
71632768M | 115V AC | 60 Hz | 1/15 hp | Cradle Base | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | Clockwise Shaft End | €258.91 |
