DAYTON 6Z080 Ac Gearmotor 124 Rpm Open 115v
Item: AF2XYTModel: 6Z080
7 In Stock
Ships within 2 days via
10.00% off
€610.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AC Gearmotor |
| Amps | 0.62A |
| Application | Ball On Motor, Heavy Duty Needle On Case |
| Bearing Type | Ball On Motor, Heavy Duty Needle On Case |
| Brake Type | None |
| Capacitor Required | Yes |
| Compatible Capacitor | 2MDV6 |
| Dimension C | 8 2/5" |
| Enclosure Type | Open |
| Frequency | 50/60 Hz |
| Full Load Amps | 0.62A |
| Gear Case Material | Die Cast Aluminium |
| Gear Material | Steel, Heat Treated Powdered Metal |
| Gear Ratio | 13:1 |
| Gear Type | Helical, Spur |
| Gearmotor Enclosure | Open |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gears | 1St Stage Steel, Helical, Subsequent Stages Steel Or Heat Treated Powdered Metal Spur |
| Housing Material | Die Cast Aluminium |
| Input Hp | 1/20 hp |
| Inverter Rated | No |
| Keyway Depth | 0.0" |
| Keyway Type | Rounded |
| Keyway Width | 0.13 mm |
| Length Less Shaft | 7.38" |
| Lubrication | Permanent Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 25 lbs.-in. |
| Motor Enclosure | Open Air Over |
| Motor Thermal Protection | None |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center-to-center Length | 2.63" |
| Mount Hole Center-to-center Width | 2.63" |
| Mount Type | Any Position |
| Mounting | All Position |
| Mounting Orientation | Any Angle |
| Nameplate Rpm | 124 RPM |
| Nameplate Rpm Range | 101-150 RPM |
| No. Of Output Shafts | 1 |
| Number Of Output Shafts | 1 |
| Output Shaft Dia. | 1/2" |
| Output Shaft Diameter | 1/2" |
| Output Shaft Length | 1" |
| Overall Height | 3.63" |
| Overall Width | 5.31" |
| Overhung Load | 90 lbs. |
| Overhung Load Capacity | 90 lbs.-ft. |
| Phase | 1 |
| Rotation | CW/CCW |
| Rpm Range | 100-150 RPM |
| Seal Type | Spring Loaded Lip Type on Input, Output Shaft |
| Seals | Spring Loaded Lip Type On Input And Output Shaft |
| Shaft Dia. | 1/2" |
| Shaft Orientation | Parallel |
| Thermal Protection | No |
| Type | Permanent Split Capacitor |
Shipping Info:
| Ship weight (kg) | 2.7 |
| Ship height (cm) | 14.73 |
| Ship length (cm) | 31.75 |
| Ship width (cm) | 13.97 |
| HS code | 8501314000 |
| Country of Origin | US |
Product Variants
| Model | Nameplate Rpm Range | Rotation | Gear Ratio | Inverter Rated | Brake Type | Full Load Amps | Length Less Shaft | Rpm Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6A195 | 76-100 RPM | CW/CCW | 17:1 | No | None | 0.62A | 7.38" | 76-100 RPM | €696.52 | |
| 6A198 | 151-200 RPM | CW/CCW | 10:1 | No | None | 0.62A | 7.38" | 151-200 RPM | €704.39 | |
| 6Z073 | 0-15 RPM | CW/CCW | 1369:1 | No | None | 0.3A | 7 1/4" | 0-15 RPM | €707.90 | |
| 6Z074 | 0-15 RPM | CW/CCW | 702:1 | No | None | 0.3A | 7 1/4" | 0-15 RPM | €708.01 | |

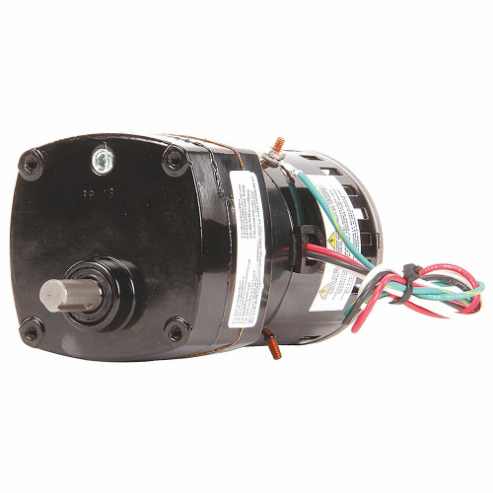

| 6Z075 | 0-15 RPM | CW/CCW | 361:1 | No | None | 0.3A | 7 1/4" | 0-15 RPM | €779.36 | |
| 6Z076 | 0-15 RPM | CW/CCW | 186:1 | No | None | 0.3A | 7 1/4" | 0-15 RPM | €938.81 | |
| 6Z077 | 16-30 RPM | Clockwise/Counter Clockwise | 96:1 | Yes | Adaptable To 5X400 | 0.62A | 7.38" | 16-30 RPM | €776.86 |
