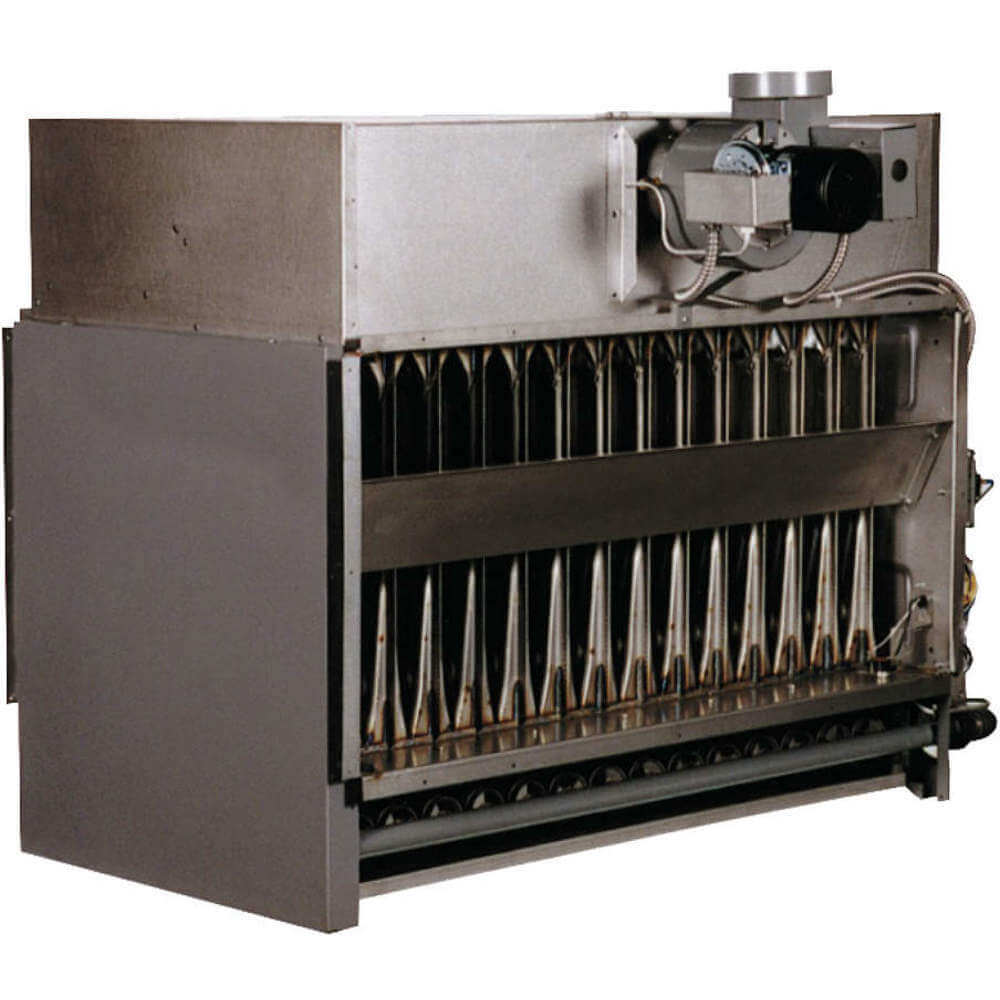

DAYTON 6RJW5 Indoor Duct Furnace Natural Gas 2469 Cfm 37 Inch D
Get it by Friday, Feb 13
10.00% off
€2,826.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Indoor Duct Furnace |
| Air Flow @ 65(f) Rise | 1100 CFM |
| Air Flow Rate | 2469 CFM |
| Air Temp. Rise | 30°F |
| Air Temp. Rise | 30 Degrees F |
| Btuh Input | 100,000 |
| Burner Air Inlet Size | 5 |
| Burner Air Inlet Size | 5" |
| Cfm @ 65(f) Rise | 1100 cfm |
| Cfm @ 80(f) Rise | 1000 CFM |
| Combustion Type | Open Combustion |
| Depth | 37" |
| Features | Clamshell Style Heat Exchanger |
| Flue Dia. | 4" |
| Flue Diameter | 4" |
| Frequency | 60 Hz |
| Fuel Type | Natural Gas |
| Full Load Amps | 1.9A |
| Furnace Type | Power Vented |
| Gas Connection | 1/2" |
| Gas Connection Size | 1/2" |
| Gas Connection Type | MNPT |
| Heat Exchanger Gauge | 20 ga. |
| Heater Voltage | 115V AC |
| Heating Capacity Input | 100000 btuH |
| Heating Capacity Output | 80000 btuH |
| Heating Method | Fan Forced |
| Height | 37 3/4" |
| Ignition System | Direct Spark |
| Ignition Type | Direct Spark |
| Includes | Additional Safety Features Of Fan Time Delay, Air Flow Prove Switch, And Terminal Block Wiring |
| Indoor Air Discharge Height | 19" |
| Indoor Air Discharge Width | 15-1/2" |
| Indoor Air Discharge Width | 15 1/2" |
| Installation Height | 8 ft. |
| Manufacturers Warranty Length | 1 yr. |
| Max. External Sp | 0.90" WC |
| Maximum Amperage | 1.9A |
| Mounting Height | 8 ft. |
| Overall Depth | 37" |
| Overall Height | 37 3/4" |
| Overall Width | 17 7/8" |
| Primary Heat Exchanger Material | Aluminized Steel |
| Required Air Flow | 929 CFM |
| Service Access Location | Side |
| Thermostat Included | No |
| Vent | Power |
| Vent Type | Power |
| Venting | Vented |
| Width | 17 7/8" |
Shipping Info:
| Ship weight (kg) | 77.85 |
| Ship height (cm) | 101.6 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 106.68 |
| HS code | 8416200040 |
| Country of Origin | US |
Product Variants
| Model | Heating Capacity Input | Heating Capacity Output | Primary Heat Exchanger Material | Overall Height | Overall Width | Overall Depth | Service Access Location | Required Air Flow | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6RJV1 | 100000 btuH | 80000 btuH | Aluminized Steel | 37 3/4" | 17 7/8" | 37" | Bottom | 929 CFM | €3,117.16 | |
| 6RJV2 | 150000 btuH | 120000 btuH | Aluminized Steel | 37 3/4" | 20 5/8" | 37" | Bottom | 1389 CFM | €3,396.61 | |
| 6RJV3 | 200000 btuH | 160000 btuH | Aluminized Steel | 37 3/4" | 26 1/8" | 37" | Bottom | - | €3,622.33 | |
| 6RJV4 | 250000 btuH | 200000 btuH | Aluminized Steel | 37 3/4" | 31 5/8" | 37" | Bottom | 2315 CFM | €4,087.27 | |
| 6RJV5 | 300000 btuH | 240000 btuH | Aluminized Steel | 37 3/4" | 37 1/8" | 37" | Bottom | 2778 CFM | €4,807.09 | |
| 6RJV6 | 350000 btuH | 280000 btuH | Aluminized Steel | 37 3/4" | 42 5/8" | 37" | Bottom | 3241 CFM | €5,125.68 | |
| 6RJV7 | 400000 btuH | 320000 btuH | Aluminized Steel | 37 3/4" | 48 1/8" | 37" | Bottom | 3704 CFM | €5,594.25 |
