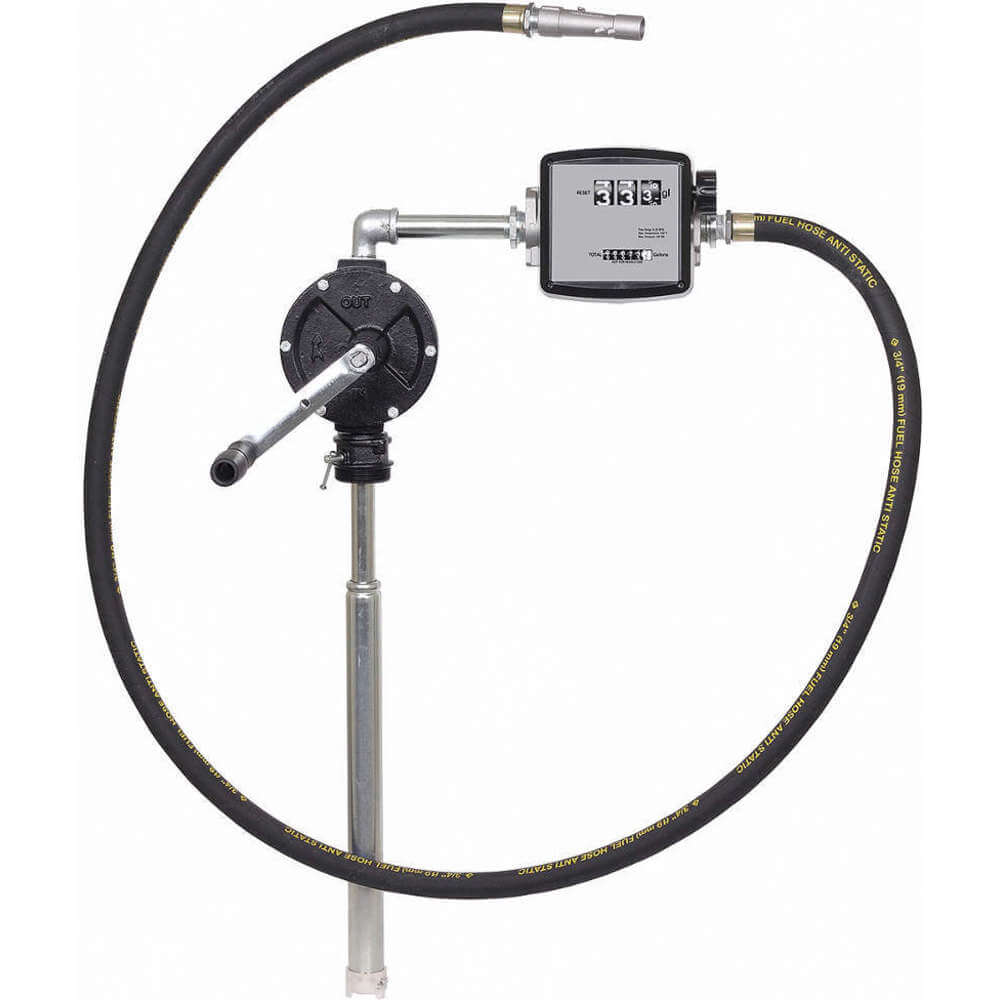

DAYTON 6HKV4 Rotary Drum Pump Cast Iron
Get it by Tuesday, Feb 17
€615.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hand Operated Drum Pump |
| Action Type | Rotary |
| Adapter Dia. | 2" |
| Adapter Material | Cast Iron |
| Adapter Size | 2" |
| Application | Dispensing Diesel Fuel And Light Oils |
| Bung Connection Dia. | 2" |
| Compatible Chemicals | Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, Kerosene, Motor Oil |
| Discharge | 0-10 GPM |
| Discharge Tube Inside Dia. | 3/4" |
| Discharge Tube Length | 96" |
| Discharge Tube Outlet I.d. | 3/4" |
| Discharge Tube Outlet Id Size | 3/4" |
| Discharge Tube Outlet O.d. | 1 1/8" |
| Discharge Tube Outlet Od Size | 1-1/8" |
| Discharge Tubing Material | Neoprene, Steel |
| Discharge Tubing Material | Zinc Plated Steel, Neoprene Rubber |
| Features | 3 Vein Construction Pump With Self Lubricating Graphite Veins And Seals. Pump Fitted With Mechanical Meter That Can Be Installed Horizontally Or Vertically |
| Fits Container Size | 15 gal., 55 gal. |
| Flow Rate | 0-10 GPM |
| Flow Rate @ Rpm | 10 Gpm @ 120 Rpm |
| For Container Size | 15 gal., 30 gal., 55 gal. |
| For Container Type | Bucket, Drum, Pail |
| For Media Type | Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, Kerosene, Motor Oil |
| For Use On | 15 To 55 Gal. Drums |
| For Use With | Dispensing Diesel Fuel And Light Oils |
| Gasket Material | Paper |
| Height | 10" |
| Hose Inside Dia. | 3/4" |
| Hose Outside Dia. | 1 1/8" |
| Housing Finish | Powder Coated |
| Housing Material | Cast Iron |
| Housing Material - Pumps | Cast Iron |
| Includes | Suction Tube With Filter Screen, Discharge Spout, Discharge Hose, Nozzle, Mechanical Flow Meter, Connecting Tube For Flow Meter |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | Yes |
| Includes Nozzle | Yes |
| Includes Suction Tube | Yes |
| Inlet Size | 3/4" |
| Inlet Type | FNPT |
| Length | 22" |
| Max. Flow Rate | 10 gal. @ 120 Strokes |
| Max. Flow Rate For Oil | 7 GPM |
| Max. Gpm For Oil | 7 GPM |
| Max. Head | 10 ft. |
| Max. Pressure | 10 psi |
| Max. Temp. | 120°F |
| Max. Viscosity | 2000 SUS |
| Metered | Yes |
| Motor Speed | 120 RPM |
| Not Recommended Chemicals | Antifreeze (Coolant), Deionized Water, Ethyl (Ethanol), Fresh Water, Gasoline, Isopropyl (Isopropanol), Lithium Grease, Methyl Ethyl Ketone (Mek), Salt Water, Sodium Hypochlorite/Bleach (To 20%) |
| Nozzle Operation | Manual |
| Ounces Per Stroke | Up to 10 GPM |
| Outlet Material | Neoprene Rubber, Steel |
| Overall Length | 22" |
| Power Source | Hand Operated |
| Pump Body Material | Cast Iron |
| Pump Package Type | Metered Dispensing With Manual Shut-Off |
| Seal Material | Graphite |
| Self Priming | Yes |
| Self-priming | Yes |
| Suction Tube Length | 18 3/16" to 34 1/2" |
| Suction Tube O.d. | 1" |
| Suction Tube Outlet O.d. Size | 1" |
| Suction Tube Outside Dia. | 1" |
| Suction Tube Type | Telescopic |
| Wetted Material | Aluminum, Cast Iron, Graphite, Paper, Polybutylene Terephthalate, Polypropylene, Spring Steel |
| Wetted Materials | Acetal, Aluminum, Buna-N, Buthil Tereftalat, Cast Iron, Graphite, Paper, Steel |
Shipping Info:
| Ship weight (kg) | 12.26 |
| Ship height (cm) | 23.88 |
| Ship length (cm) | 66.04 |
| Ship width (cm) | 20.32 |
| HS code | 8413200000 |
| Country of Origin | IN |
Product Variants
| Product | Model | Max. Viscosity | Includes Suction Tube | For Container Size | Diesel Exhaust Fluid Compatible | Includes Discharge Hose | Includes Nozzle | Includes Bung Adapter | Metered | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2RUK2 | 1500 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | Yes | Yes | Yes | No | €402.19 | |
 |
38Y792 | 2000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | No | €361.69 | |
 |
3BY44 | 4000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | Yes | No | Yes | No | €60.55 | |
 |
4HA26 | 1500 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | No | €138.51 | |
 |
4HA33 | 4000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | No | €40.09 | |
 |
4VCR2 | 2000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | - | €182.42 | |
 |
4VCR3 | 2000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | Yes | Yes | Yes | No | €306.55 |
