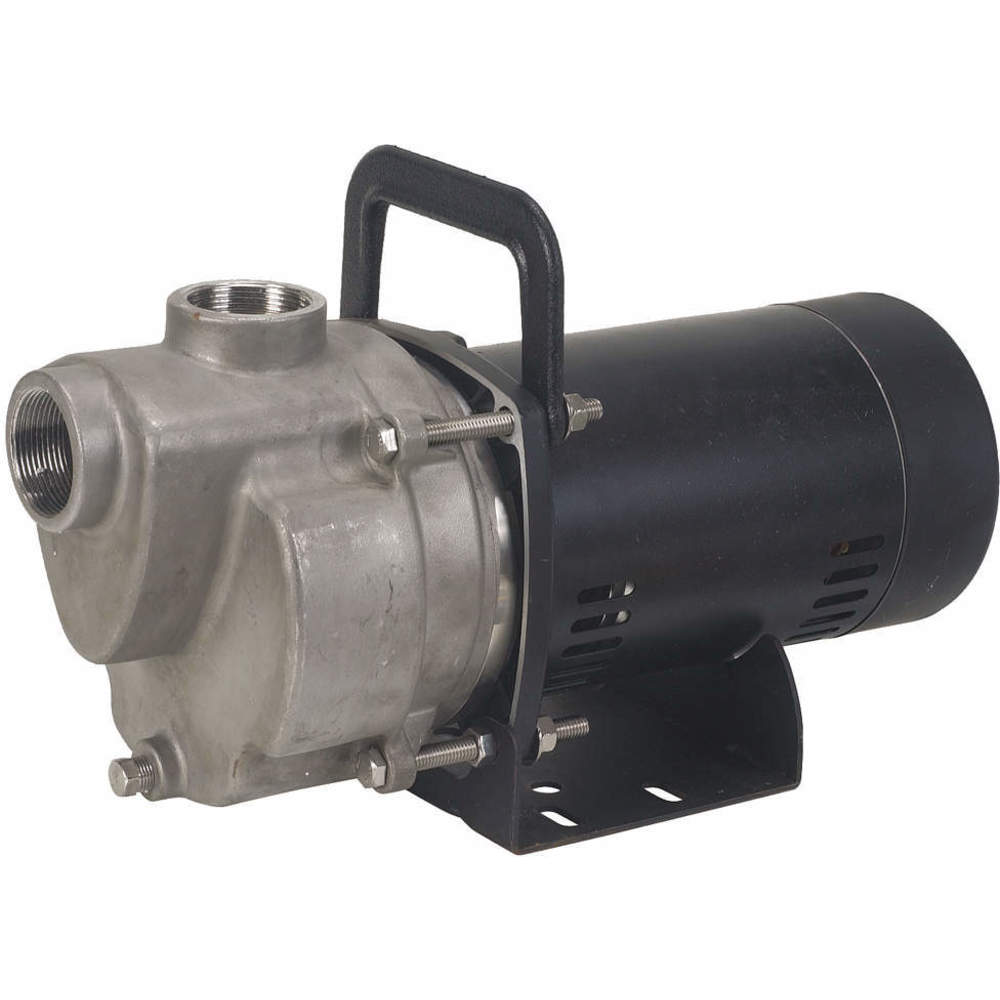

DAYTON 6GPG3 Pump Self Priming Stainless Steel 1/3 Hp
Get it by Friday, Dec 19
10.00% off
€1,135.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 7/3.5A |
| Bearing Type | Ball |
| Best Efficiency Flow | 36 GPM |
| Best Efficiency Flow Range @ Head | 12 to 33 GPM @ 25 to 15 ft. |
| Best Efficiency Flow Rate | 36 GPM |
| Best Efficiency Flow Rate @ Head | 17 GPM @ 20 ft. |
| Best Efficiency Head | 15 ft. to 25 ft. |
| Compatible Discharge Pipe Size | 1 1/2" |
| Compatible Intake Pipe Size | 1 1/2" |
| Compatible With Media Type | Non Abrasive Liquids, Non Flammable Liquids |
| Connection Type | NPT |
| Discharge Rotation | 90° Increments |
| Discharge Type | NPT |
| Drain Plug | Easily Accessible |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 33 GPM |
| Flow Rate @ 10 Psi | 14.1 GPM |
| Flow Rate @ 2 Ft. | 37 GPM |
| Flow Rate @ 20 Ft. | 17 GPM |
| Flow Rate @ 25 Ft. | 12 GPM |
| Flow Rate @ 30 Ft. | 6 GPM |
| Flow Rate @ 5 Ft. | 35 GPM |
| Flow Rate Of Water @ 15 Ft. | 21 GPM |
| Flow Rate Of Water @ 25 Ft. | 12 GPM |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm @ 10 Psi | 14.1 |
| Gpm Of Water @ 10 Ft. | 33 GPM |
| Gpm Of Water @ 2 Ft. | 37 GPM |
| Gpm Of Water @ 2 Ft. Of Head | 37 |
| Gpm Of Water @ 20 Ft. | 17 GPM |
| Gpm Of Water @ 30 Ft. | 6 GPM |
| Gpm Of Water @ 5 Ft. | 35 GPM |
| Grade | Grade 304 |
| Height | 9.9" |
| Housing Material | Stainless Steel |
| Hp | 1/3 hp |
| Impeller Material | Stainless Steel |
| Impeller Type | Semi Closed |
| Inlet Size | 1 1/2" |
| Length | 16 1/3" |
| Max. Case Pressure | 85 psi |
| Max. Flow Rate | 37 GPM |
| Max. Flow Rate @ 15 Ft. | 21 GPM |
| Max. Flow Rate @ Head | 36 GPM @ 2 ft. |
| Max. Head | 32 ft. |
| Max. Media Temp. | 180°F |
| Max. Pressure | 13.9 psi |
| Max. Solid Dia. | 3/8" |
| Max. Suction Lift | 25 ft. |
| Maximum Flow Rate @ 10 Feet Of Head | 33 GPM |
| Maximum Flow Rate @ 20 Feet Of Head | 17 GPM |
| Maximum Flow Rate @ 30 Feet Of Head | 6 GPM |
| Maximum Flow Rate @ 5 Feet Of Head | 35 GPM |
| Media Type | Non Abrasive Liquids, Non Flammable Liquids |
| Min. Flow Rate | 6 GPM |
| Min. Flow Rate @ Head | 2 GPM @ 31 ft. |
| Min. Gpm @ Head | 2 GPM @ 31 ft. |
| Min. Head | 2 ft. |
| Min. Media Temp. | 40°F |
| Motor Enclosure Design | Open Dripproof |
| Motor Type | Permanent Split Capacitor |
| Outlet Rotation | 90° |
| Outlet Size | 1 1/2" |
| Outlet Type | NPT |
| Overall Height | 9.9" |
| Overall Length | 16.3" |
| Overall Width | 7.1" |
| Phase | 1 |
| Port Rotation | Four Position |
| Pump Housing Material | Stainless Steel |
| Rpm | 3450 RPM |
| Rpm (maximum) | 3450 RPM |
| Screw Material | Stainless Steel |
| Seal Application | Non-Flammable Liquids Compatible With Pump Components |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Shaft Material | Stainless Steel |
| Solid Diameter (maximum) | 0.38" |
| Specific Gravity | 1 |
| Standards | Ccsaus Listed |
| Type | Chemical Transfer |
| Voltage | 115/230V AC |
| Wetted Material | Stainless Steel, Carbon, Ceramic, Viton |
| Width | 7.1" |
Shipping Info:
| Ship weight (kg) | 15.12 |
| Ship height (cm) | 25.15 |
| Ship length (cm) | 41.4 |
| Ship width (cm) | 18.03 |
| HS code | 8413702005 |
| Country of Origin | CN |
Product Variants
| Product | Model | Hp | Phase | Max. Suction Lift | Max. Head | Pump Housing Material | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
12N810 | 3 hp | 3 | 20 ft. | 65 ft. | Cast Iron | 3" | 3" | - | €2,282.60 | |
 |
12N811 | 3 hp | 3 | 20 ft. | 65 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,688.58 | |
|
12N812 | 5 hp | 3 | 20 ft. | 88 ft. | Cast Iron | 3" | 3" | Totally Enclosed Fan Cooled | €2,550.95 | |
|
12N813 | 5 hp | 3 | 20 ft. | 88 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,549.58 | |
|
12N814 | 7 1/2 hp | 3 | 20 ft. | 90 ft. | Cast Iron | 3" | 3" | Totally Enclosed Fan Cooled | €3,106.03 | |
|
12N815 | 7 1/2 hp | 3 | 20 ft. | 90 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,854.46 | |
 |
30SPM10 | 3 hp | 1 | 25 ft. | 92.4 ft. | Cast Iron | 2 1/2" | 2" | Open Dripproof | €4,538.21 |
