DAYTON 6GNU0 Compact Contactor Dp 20a 1p 208-240vac
Item: AE8YTPModel: 6GNU0
7 In Stock
Ships within 2 days via
10.00% off
€24.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Definite Purpose Contactor |
| Action Type | Non Reversing |
| Coil Voltage | 208/240V AC |
| Contact Material | Silver Cadmium Oxide |
| Contactor Frame Size | Compact |
| Contactor Type | Definite Purpose |
| Depth | 3.41" |
| Electrical Operating Durability | 200000 |
| Enclosure Nema Rating | No Enclosure |
| Enclosure Type | Open |
| Fluorescent Lighting Amps Rating | Not Applicable |
| Frame Size | Not Applicable |
| Frequency | 50/60 Hz |
| Full Load Current - Resistive | 25A |
| Full Load Inductive Amps | 20A |
| Height | 2 16/25" |
| Horsepower @ Single Phase | 2 hp |
| Horsepower @ Single Phase - 120v Ac | 1 hp |
| Horsepower @ Single Phase - 240v Ac | 2 hp |
| Horsepower @ Three Phase - 208v Ac | Not Rated |
| Horsepower @ Three Phase - 600v Ac | Not Rated |
| Hp @ 1 Phase - 120v | 3/4 hp |
| Hp @ 1 Phase - 230v | 7 1/2 hp |
| Hp @ 1 Phase - 240v | 7 1/2 hp |
| Hp @ 3 Phase - 240v | Not Rated |
| Hp @ 3 Phase - 480v | Not Rated |
| Includes | Not Applicable |
| Includes Shunt | Single Pole With Shunt |
| Inductive Full Load Amps | 20A |
| Input Control Type | Not Applicable |
| Ip Rating | Not Applicable |
| Led Lighting Current Rating | Not Applicable |
| Locked Rotor Load | 100A @ 480V AC, 120A @ 240/277V AC, 80A @ 600V AC |
| Main Pole Contact Form | 1NO |
| Maximum Operating Temperature | 158°F |
| Maximum Voltage Rating | 600V AC |
| Mechanical Operating Durability | 500000 |
| Minimum Operating Temperature | -40°F |
| Mounting Hole Dia. | Not Applicable |
| Mounting Hole Distance | 1.63" |
| Mounting Hole Distance - Height | 1.63" |
| Mounting Hole Distance - Width | 1.61" |
| Mounting Hole Width | 1.61" |
| Mounting Postion | Horizontal, Vertical |
| Mounting Style | Through Panel |
| Nema Enclosure Material | Not Applicable |
| No. Of Terminals | 6 |
| Nominal Coil Voltage @ 60hz | 208-240V AC |
| Number Of Normally Closed Main Contacts | 0 |
| Number Of Normally Open Main Contacts | 1 |
| Number Of Poles | 1 |
| Overall Depth | 3.19" |
| Overall Height | 2 8/25" |
| Overall Width | 2.05" |
| Phase | Single |
| Resistance Properties | Not Applicable |
| Resistive Full Load Amps | 25A |
| Response Time | 20 ms |
| Reversible | No |
| Reversing Capability | Non-reversing |
| Status Indicator | Mechanical Flag |
| Terminal Connection Type | Screw Terminals |
| Tungsten Lighting Current Rating | Not Applicable |
| Width | 2.03" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 6.86 |
| Ship width (cm) | 9.14 |
| HS code | 8536490065 |
| Country of Origin | CN |
Product Variants
| Product | Model | Number Of Poles | Hp @ 1 Phase - 240v | Inductive Full Load Amps | Resistive Full Load Amps | Coil Voltage | Enclosure Nema Rating | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 480v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
6GNP3 | 1 | 2 hp | 25A | 30A | 24V AC | No Enclosure | Not Rated | Not Rated | €36.94 | |
 |
6GNR1 | 2 | 2 hp | 20A | 30A | - | No Enclosure | Not Rated | Not Rated | €38.90 | |
 |
6GNY8 | 2 | 3 hp | 25A | 30A | 208/240V AC | No Enclosure | Not Rated | Not Rated | €30.60 | |
|
6GNZ3 | 1 | 7 1/2 hp | 20A | 25A | 24V AC | No Enclosure | Not Rated | Not Rated | €26.72 | |
 |

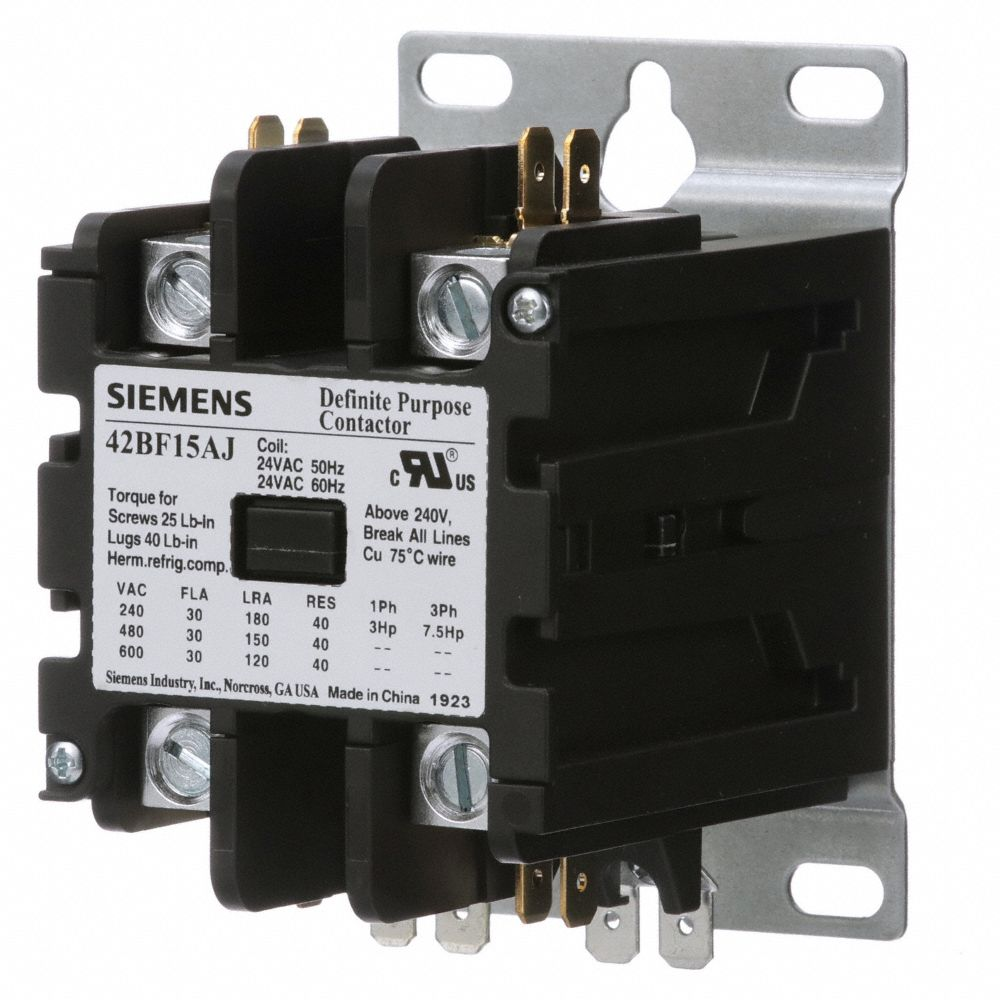

42BF15AJ | - | - | - | - | - | - | - | - | €170.28 | |
 |

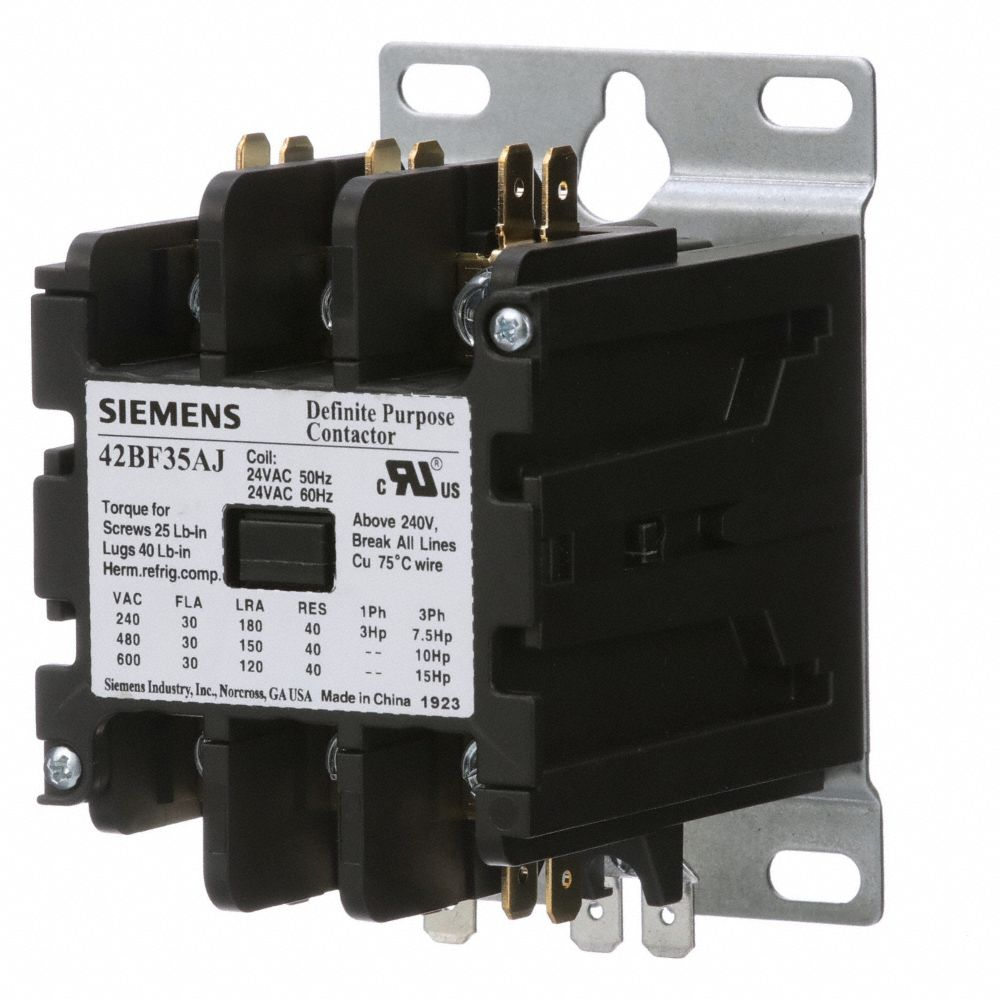

42BF35AF | - | - | - | - | - | - | - | - | €180.18 | |
|
42BF35AL | - | - | - | - | - | - | - | - | €180.18 |
