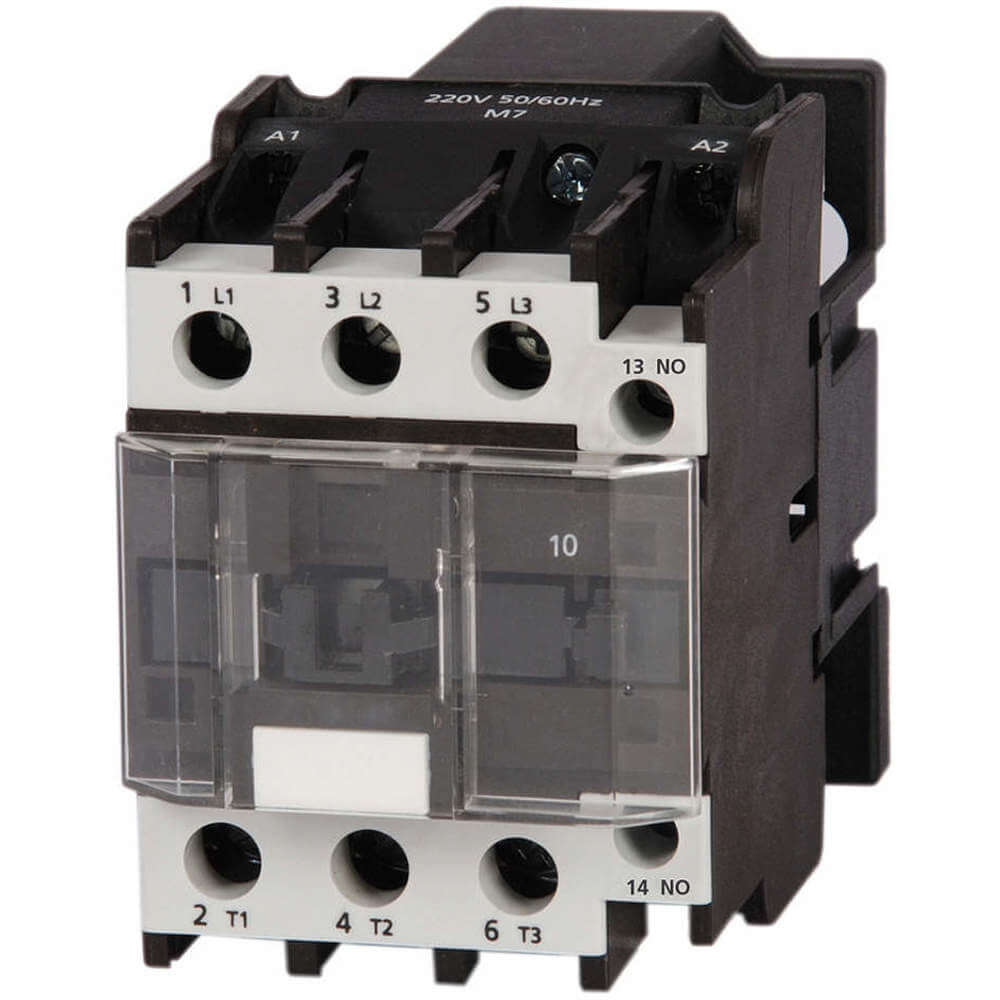

DAYTON 6EAW2 Contactor Iec 32a 3p 120vac 1no
Item: AE8MMQModel: 6EAW2
7 In Stock
Ships within 2 days via
5.00% off
€184.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Action Type | Non Reversing |
| Auxiliary Contacts Included | 1NO |
| Coil Voltage | 120V AC |
| Contactor Style | IEC |
| Contactor Type | IEC |
| Depth | 3 24/25" |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Enclosure Type | Open |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 32A |
| Full Load Amps-resistive | 50A |
| Height | 2 1/5" |
| Hp @ 1 Ph-240v | 5 hp |
| Hp @ 1 Phase-120v | 2 hp |
| Hp @ 1 Phase-240v | 5 hp |
| Hp @ 3 Ph-480v | 20 hp |
| Hp @ 3 Phase-208v | 10 hp |
| Hp @ 3 Phase-230v | 10 hp |
| Hp @ 3 Phase-240v | 10 hp |
| Hp @ 3 Phase-480v | 20 hp |
| Hp @ 3 Phase-575v | 25 hp |
| Hp @ 3 Phase-600v | 25 hp |
| Included Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Main Power Pole Contact Form | 3NO |
| Nema Enclosure Material | Not Applicable |
| No. Of Auxillary Contacts | 1 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Overall Depth | 3.96" |
| Overall Height | 2 1/5" |
| Overall Width | 2 1/5" |
| Reversible | No |
| Reversing Capability | Non Reversing |
| Terminal Connection Type | Screw Terminal |
| Width | 2 1/5" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 11.18 |
| Ship width (cm) | 9.14 |
| HS code | 8536490065 |
| Country of Origin | IN |
Product Variants
| Model | Coil Voltage | Height | Full Load Amps-resistive | Full Load Amps-inductive | Hp @ 3 Phase-208v | Hp @ 3 Phase-600v | Hp @ 3 Ph-480v | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6EAP7 | 24V AC | 2.95" | 60A | 32A | 10 hp | 30 hp | 30 hp | 4 3/5" | €280.58 | |
| 6EAP8 | 120V AC | 2.95" | 60A | 32A | 10 hp | 30 hp | 30 hp | 4 3/5" | €280.58 | |
| 6EAP9 | 240V AC | 2.95" | 60A | 32A | 10 hp | 30 hp | 30 hp | 4 3/5" | €280.58 | |
| 6EAR0 | 24V AC | 2.95" | 70A | 50A | 15 hp | 40 hp | 40 hp | 4 3/5" | €354.12 | |
| 6EAR1 | 120V AC | 2.95" | 70A | 50A | 15 hp | 40 hp | 40 hp | 4 3/5" | €354.12 | |
| 6EAR2 | 240V AC | 2.95" | 70A | 50A | 15 hp | 40 hp | 40 hp | 4 3/5" | €354.12 | |
| 6EAR3 | 24V AC | 2.95" | 80A | 65A | 20 hp | 50 hp | 50 hp | 4 3/5" | €397.19 |
