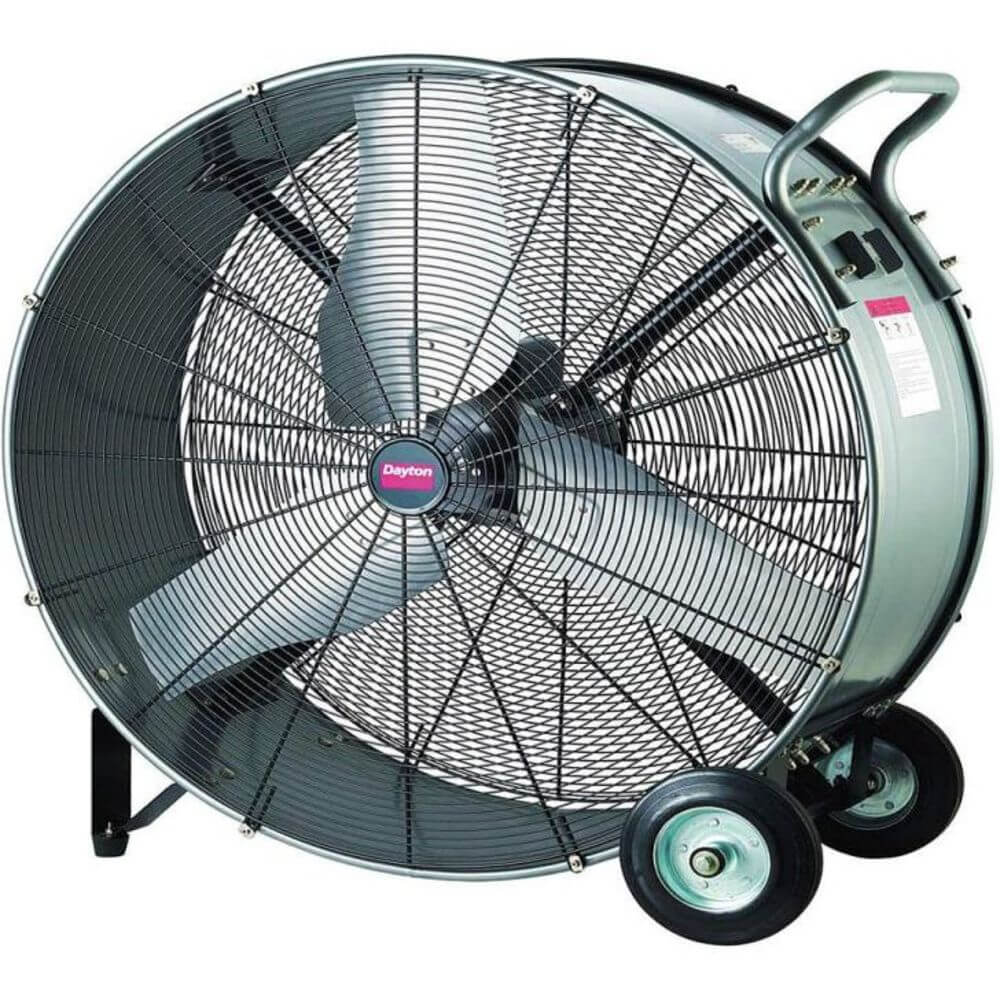

DAYTON 6ALE4 Air Circulator 48 Inch 21000 Cfm 115v
Get it by Tuesday, Dec 23
10.00% off
€2,540.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Circulator |
| Air Flow | 21000 CFM |
| Air Velocity (fpm) @ 10 Ft. | 755 |
| Air Velocity (fpm) @ 20 Ft. | 557 |
| Air Velocity (fpm) @ 40 Ft | 343 FPM |
| Air Velocity (fpm) @ 40 Ft | 343 |
| Air Velocity (fpm) @ 60 Ft. | 240 FPM |
| Air Velocity (fpm) @ 60 Ft. | 240 |
| Air Velocity (fpm) @ 80 Ft. | 202 FPM |
| Air Velocity (fpm) @ 80 Ft. | 202 |
| Air Velocity @ 10 Ft. | 755 FPM |
| Air Velocity @ 20 Ft. | 557 FPM |
| Amps | 8.7A |
| Assembled | No |
| Assembly Required | Yes |
| Bearing Type | Ball |
| Blade Dia. | 48" |
| Blade Material | Aluminum |
| Cfm/watt | 19 CFM |
| Cfm/watt | 19 |
| Color | Light Gray |
| Cord Length | 10 ft. |
| Depth | 21" |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Accessory Style | Standard |
| Fan Cord Length | 10 ft. |
| Fan Housing Material | Steel |
| Fan Mounting Location | Floor |
| Fan Style | Standard |
| Guard Material | Steel |
| Height | 52" |
| Height Adjustment | Fixed Height |
| High Cfm | 21000 CFM |
| Housing Material | Steel |
| Hz | 60 Hz |
| Includes | 10" Steel And Rubber Wheels, Cord Wrap |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 21" |
| Mobile/stationary | Mobile |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 850 RPM |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | Floor |
| Mounting Style | Mobile |
| Nema Plug Configuration | 5-15P |
| No. Of Conductors | 3 |
| Number Of Blades | 3 |
| Number Of Speeds | 1 |
| Operating Amps | 10A |
| Oscillating | No |
| Oscillating/non-oscillating | Non Oscillating |
| Oscillation | Non Oscillating |
| Outside Dia. | 51 1/2" |
| Phase | 1 |
| Product Type | Corrosion-Resistant Industrial Fan |
| Rpm | 850 RPM |
| Shaft Dia. | 19 mm |
| Sound Level | 88 dBA |
| Thermal Protection | Automatic Reset |
| Voltage | 120V AC |
| Wattage | 1100 W |
| Watts | 1000 W |
| Wheel Dia. | 10" |
| Wheel Material | Steel, Rubber |
| Wheeled Base | Mobile |
| Width | 51 1/2" |
| Wire Guard Finish | Polyester Powder Coated Black |
Shipping Info:
| Ship weight (kg) | 106.65 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 45.72 |
| Ship width (cm) | 132.08 |
| HS code | 8414596090 |
| Country of Origin | US |
Product Details:
- Mobile/Stationary (Mobile)
Product Variants
| Product | Model | Blade Dia. | Number Of Speeds | Voltage | Motor Hp | Mounting Location | Guard Material | Assembled | Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1YNW3 | 24" | 2 | 120V AC | 1/3 hp | - | Steel | Yes | Automatic Reset | €458.23 | |
 |
1YNW4 | 30" | 2 | 120V AC | 1/3 hp | - | Steel | Partially Assembled | Automatic Reset | €564.61 | |
 |
1YNW5 | 36" | 2 | 120V AC | 1/2 hp | - | Steel | Partially Assembled | Automatic Reset | €1,002.09 | |
 |
1YNW6 | 42" | 2 | 120V AC | 1/2 hp | - | Steel | Partially Assembled | Automatic Reset | €1,757.04 | |
 |
1YNW7 | 36" | 2 | 120V AC | 1 hp | - | Steel | Partially Assembled | Automatic Reset | €973.22 | |
|
1YNW8 | 42" | 2 | 120V AC | 1 hp | - | Steel | Partially Assembled | Automatic Reset | €1,556.79 | |
 |
2RDZ1 | 24" | 2 | 120V AC | 1/3 hp | - | Galvanized Steel | Partially Assembled | Automatic Reset | €699.95 |
