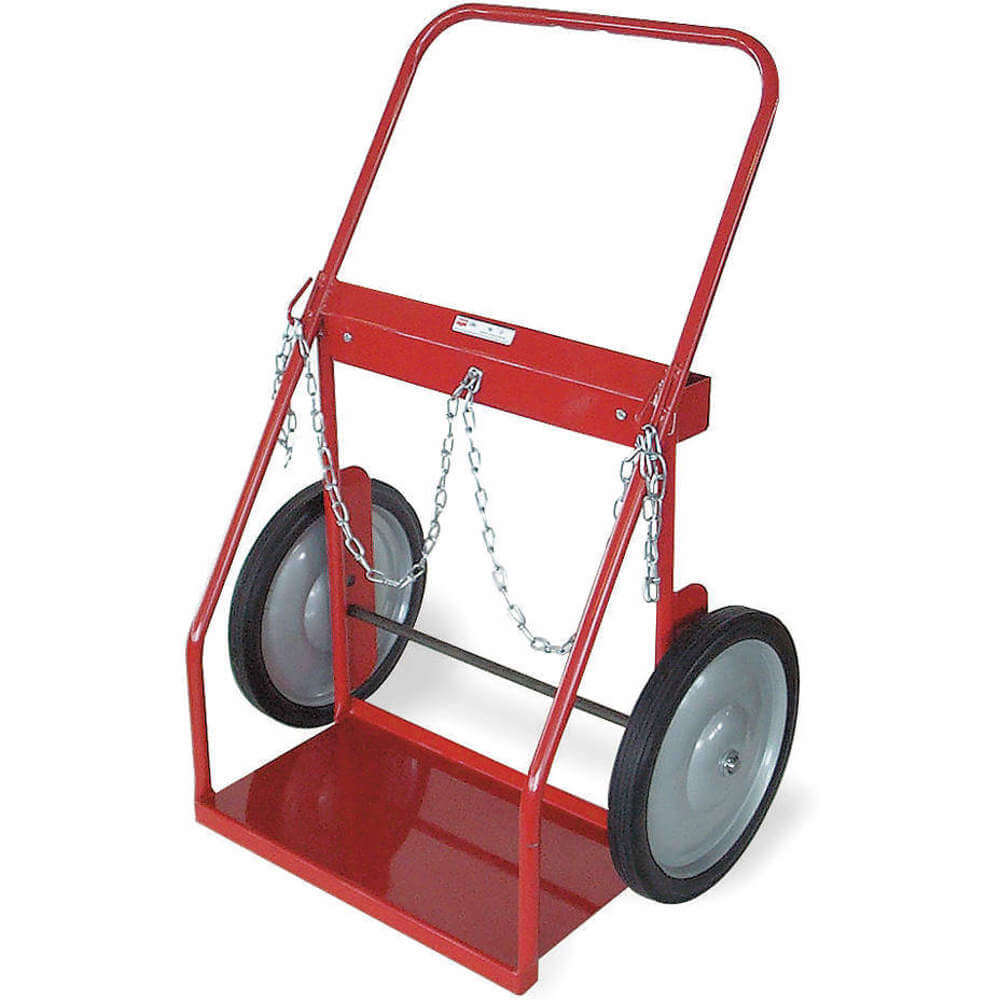

DAYTON 5Z082 Welding Cylinder Truck 2 Cylinder 500 Lb.
Get it by Thursday, Jul 2
5.00% off
€368.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Welding Cylinder Truck |
| Assembled | Yes |
| Axle Mounted Wheel Bearings | Ball Bearing |
| Axle Mounted Wheel Width | 1 3/4" |
| Axle-mounted Wheel Dia. | 16" |
| Axle-mounted Wheel Type | Semi-Pneumatic |
| Axle-mounted Wheel/tread Material | Rubber |
| Base Plate Dimensions | 13" x 24" |
| Base Plate Dimensions | 13 x 24" |
| Brake Type | No Caster Brake |
| Caster Wheel/configuration | (2) Axle-Mounted |
| Caster/wheel Mounting Location | 2-Wheel |
| Color | Red |
| Compatible With Product Type | Oxygen And Acetylene Cylinders |
| Cylinder Capacity | 2 |
| Cylinder Height | 44 7/8" |
| Cylinder Orientation | Side By Side |
| Deck Height | 1 3/8" |
| Finish | Powder Coating |
| For Max. Container Dia. | 13" |
| For Max. Cylinder Dia. | 13" |
| For Surface Type | Concrete |
| Frame Finish | Powder Coating |
| Frame Material | Steel |
| Frame Type | Flat Back |
| Handle Height | 44" |
| Handle Type | Continuous Frame Flow Back |
| Height | 43 1/2" |
| Hub Position | Center Mount |
| Included Firewall | No |
| Included Foot Assist | Without Foot Assist |
| Included Lever Pushoff | Without Lever Pushoff |
| Included Lift Ring | Without Lift Ring |
| Included Stair Climber | Without Stair Climber |
| Load Capacity | 500 lbs. |
| Material | Steel |
| Max. Tank Dia. Acetylene | 13 1/2" |
| Max. Tank Dia. Acetylene | 13-1/2" |
| Max. Tank Dia. Oxygen | 9-1/4" |
| Max. Tank Dia. Oxygen | 9 1/4" |
| Non-marking Axle-mounted Wheels | No |
| Nose Plate Depth | 12 1/2" |
| Nose Plate Material | Steel |
| Nose Plate Profile | Standard |
| Nose Plate Thickness | 1/16" |
| Nose Plate Type | Solid Straight |
| Nose Plate Width | 24" |
| Nose Plate Wxd | 12.5" x 24" |
| Overall Depth | 22" |
| Overall H X W X D | 43.5" x 32.5" x 22" |
| Overall Height | 43 1/2" |
| Overall Height-cylinder Lowered | 44 7/8" |
| Overall Width | 32 1/2" |
| Securing Mechanism | Chain |
| Securing Mechanism Height | 27" |
| Tool Tray Height | 28 1/2" |
| Tool Tray Width | 5" |
| Type | Standard |
| Wheel Bearings | Ball , Ball Bearing |
| Wheel Dia. | 16" |
| Wheel Material | Steel Hub |
| Wheel Type | Semi-Pneumatic |
| Wheel Width | 1 3/4" |
| Width | 32 3/4" |
Shipping Info:
| Ship weight (kg) | 28.8 |
| Ship height (cm) | 110.49 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 82.55 |
| HS code | 8716805010 |
| Country of Origin | US |
Product Variants
| Product | Model | Cylinder Capacity | Overall Height | Overall Width | Overall Depth | Load Capacity | Handle Type | Wheel Type | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2MPV1 | 1 | 48" | 19 1/2" | 18" | 500 lbs. | Continuous Frame Flow Back | Solid | Red | €201.39 | |
 |
34D673 | 1 | 42" | 19" | 24 1/2" | 250 lbs. | Continuous Frame Flow Back | Solid | Red | €577.36 | |
 |
34D674 | 2 | 42" | 28 3/4" | 24 1/2" | 500 lbs. | Continuous Frame Flow Back | Solid | Red | €449.64 | |
 |
34D682 | 2 | 66" | 40" | 9 1/2" | 500 lbs. | Dual | Pneumatic | Red | €1,211.77 | |
 |
34D685 | 1 | 52" | 17 1/2" | 23 3/4" | 500 lbs. | Continuous Frame Single Pin | Hard Rubber | Red | €209.55 | |
 |
4ZJ05 | 2 | 43" | 26" | 18" | 500 lbs. | Continuous Frame Flow Back | Solid | Red | €256.81 | |
 |
4ZJ12 | 1 | 45 7/8" | 20" | 16 1/2" | 500 lbs. | Continuous Frame Flow Back | Semi-Pneumatic | Red | €234.23 |
