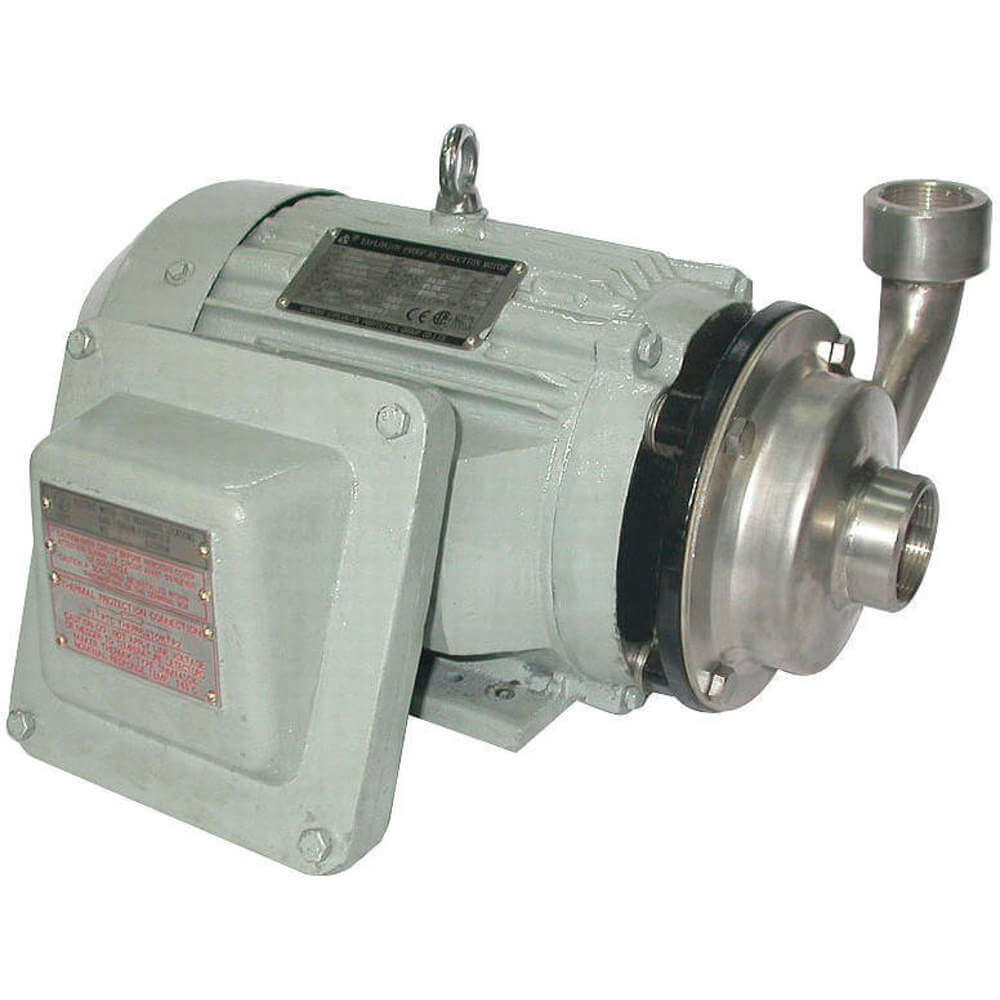

DAYTON 5WXU8 Hazardous Location Centrifugal Pump 1 1/2 Hp
Get it by Wednesday, Dec 24
10.00% off
€3,894.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Ambient Temp. Max (c/f) | 140F |
| Amps | 1.86/3.72-4.09A |
| Bearing Type | Ball |
| Best Efficiency Flow | 42 GPM |
| Best Efficiency Flow Range @ Head | 59 GPM @ 42-14 GPM @ 63 ft. |
| Best Efficiency Flow Rate @ Head | 42 GPM @ 50 ft. |
| Best Efficiency Head | 50 ft. |
| Compatible Motor Frame | 143TC |
| Current | 4.09-3.72/1.86A |
| Discharge Pipe Size | 1 1/4" |
| Discharge Pipe Type | NPT |
| Discharge Port Size | 1 1/4" |
| Discharge Port Type | NPT |
| Discharge Rotation | 90° Increments |
| Duty Cycle | Continuous |
| Flow Rate @ 20 Ft Of Head (maximum) | 88 GPM |
| Flow Rate @ 20 Ft. | 88 GPM |
| Flow Rate @ 25 Ft Of Head (maximum) | 82 GPM |
| Flow Rate @ 25 Ft. | 82 GPM |
| Flow Rate @ 30 Ft Of Head (maximum) | 78 GPM |
| Flow Rate @ 30 Ft. | 78 GPM |
| Flow Rate @ 40 Ft Of Head (maximum) | 61 GPM |
| Flow Rate @ 40 Ft. | 61 GPM |
| Flow Rate @ 50 Ft Of Head (maximum) | 42 GPM |
| Flow Rate @ 50 Ft. | 42 GPM |
| Flow Rate @ 60 Ft Of Head (maximum) | 21 GPM |
| Flow Rate @ 60 Ft. | 21 GPM |
| Flow Rate @ 70 Ft Of Head (maximum) | 3 GPM |
| Flow Rate @ 70 Ft. | 3 GPM |
| For Use With Potable Systems | No |
| Frame | 143TC |
| Frequency | 60 Hz |
| Grade | Grade 316 |
| Hazardous Location Class | Class I Division 1 Groups C, D, Class II Division 2 Groups E, F, G |
| Hazardous Location Group | Group C, Group D, Group E, Group F, Group G |
| Housing Material | Stainless Steel |
| Hp | 1 1/2 hp |
| Impeller Design | Closed |
| Impeller Material | Stainless Steel |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Pressure | 122 psi |
| Inlet Size | 1 1/2" |
| Intake Pipe Size | 1 1/2" |
| Intake Pipe Type | NPT |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 140°F |
| Max. Case Pressure | 150 psi |
| Max. Dia. Solids | 1/6" |
| Max. Flow Rate @ Head | 88 GPM @ 20 ft. |
| Max. Fluid Temp. | 250°F |
| Max. Head | 72 ft. |
| Max. Viscosity | 264 cPS |
| Maximum Hp | 1 1/2 hp |
| Media Temperature (minimum) | 40°F |
| Min. Ambient Temp. | 40°F |
| Min. Flow Rate @ Head | 3 GPM @ 70 ft. |
| Motor Ambient Temp. Rating | 140°F |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed (maximum) | 3450 RPM |
| Motor Type | Three Phase Induction |
| Nema/iec Frame | 143TC |
| Outlet Size | 1 1/4" |
| Outlet Type | NPT |
| Overall Height | 9.06" |
| Overall Length | 15.13" |
| Overall Width | 13" |
| Phase | 3 |
| Port Rotation | 90 Deg. Increments |
| Priming | Manual |
| Screw Material | Stainless Steel |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Material | Carbon, Ceramic, Viton |
| Seal Type | Mechanical |
| Self Priming | Manual |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shaft Outer Dia. | 7/16" |
| Solid Diameter (maximum) | 1/6" |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 xg |
| Standards | Cus |
| Suction Port | 1 1/2" NPT |
| Temp. Code | T3C |
| Thermal Protection | None |
| Type | Hazardous Location Pump |
| Voltage | 208-230/460V AC |
| Volute Material | Stainless Steel |
| Wetted Material | Carbon, Ceramic, Stainless Steel, Viton |
Shipping Info:
| Ship weight (kg) | 49.5 |
| Ship height (cm) | 29.21 |
| Ship length (cm) | 46.99 |
| Ship width (cm) | 39.37 |
| HS code | 8413702040 |
| Country of Origin | CN |
Product Variants
| Product | Model | Hp | Flow Rate @ 20 Ft. | Flow Rate @ 25 Ft. | Flow Rate @ 30 Ft. | Max. Head | Amps | Flow Rate @ 40 Ft. | Flow Rate @ 50 Ft. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5WXU9 | 2 hp | 106 GPM | 101 GPM | 94 GPM | 73 ft. | 2.3/4.6-5.06A | 77 GPM | 49 GPM | €4,687.53 |
