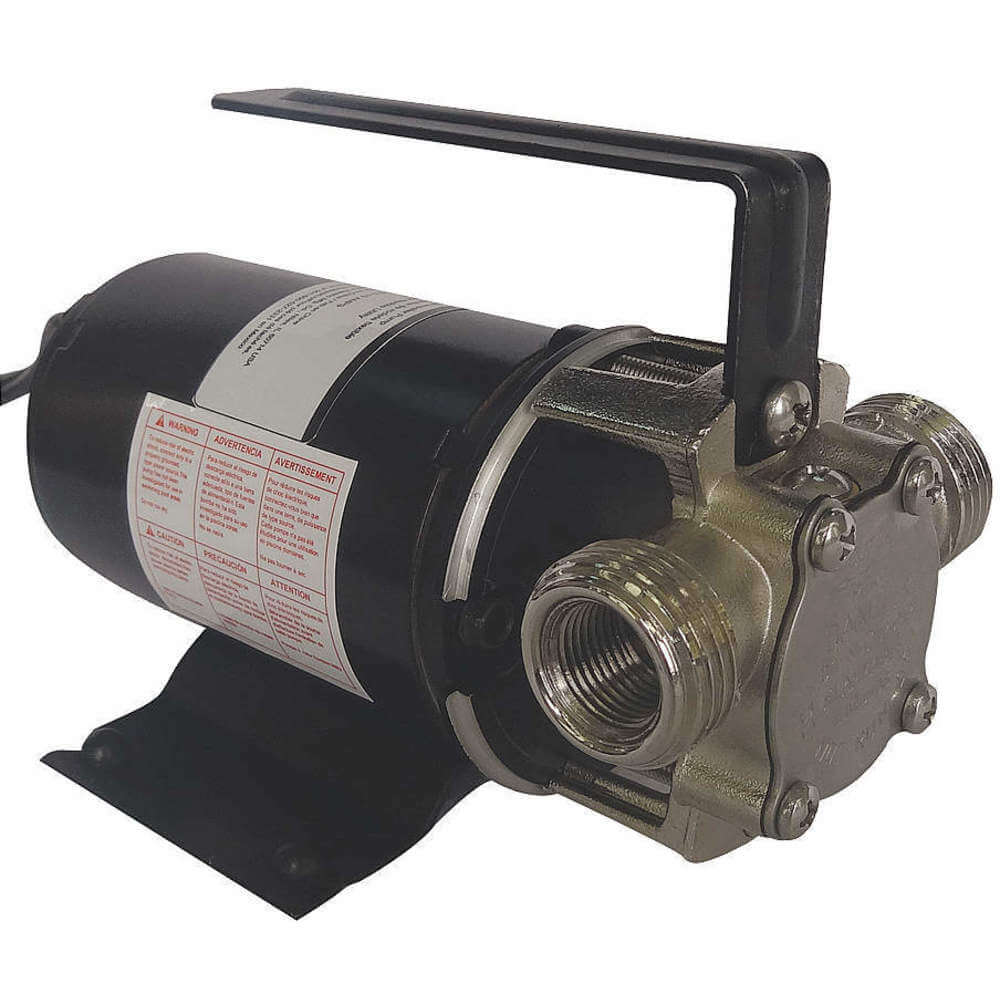

DAYTON 5UXN0 Utility Pump 12vdc
Item: AE6TKFModel: 5UXN0
7 In Stock
Ships within 2 days via
10.00% off
€277.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Utility Pump |
| Amps | 6.5-10A |
| Bearing Material | Stainless Steel |
| Bearing Type | Ball |
| Bearings | Ball |
| Body Material | Stainless Steel |
| Cord | 7 ft. |
| Cord Length | 7 ft. |
| Current | 10A |
| Discharge Connection | 3/4" |
| Discharge Connection Size | 3/4" |
| Discharge Connection Type | Hose |
| Discharge Type | Hose |
| Duty | Intermittent |
| Duty Cycle | Intermittent |
| Enclosure Type | Open |
| Flow Rate @ 1 Ft Of Head - Maximum | 3.9 GPM |
| Flow Rate @ 1 Ft. | 300 GPH |
| Flow Rate @ 10 Ft Of Head - Maximum | 3.3 GPM |
| Flow Rate @ 10 Ft. | 3.3 GPM |
| Flow Rate @ 20 Ft Of Head - Maximum | 2.3 GPM |
| Flow Rate @ 20 Ft. | 2.3 GPM |
| Flow Rate @ 30 Ft Of Head - Maximum | 1.2 GPM |
| Flow Rate @ 30 Ft. | 2.5 GPM |
| Flow Rate @ 40 Ft. | 96 GPH |
| Flow Rate @ 5 Ft. | 3.72 GPM |
| For Media Type | Water |
| Gph Of Water @ 1 Ft. Of Head | 300 |
| Gph Of Water @ 1 Ft. Of Head | 300 GPH |
| Gph Of Water @ 10 Ft. Of Head | 240 |
| Gph Of Water @ 10 Ft. Of Head | 240 GPH |
| Gph Of Water @ 20 Ft. Of Head | 202 |
| Gph Of Water @ 20 Ft. Of Head | 202 GPH |
| Gph Of Water @ 30 Total Ft. Of Head | 150 GPH |
| Gph Of Water @ 40 Total Ft. Of Head | 96 GPH |
| Gph Of Water @ 5 Total Ft. Of Head | 258 GPH |
| Gpm Of Water @ 30 Ft. Of Head | 2.5 GPM |
| Gpm Of Water @ 5 Ft. Of Head | 3.72 GPM |
| Height | 4 3/16" |
| Horsepower | 1/10 Hp |
| Housing Material | Stainless Steel |
| Hp | 1/10 hp |
| Impeller | Buna-N |
| Impeller | Buna N |
| Impeller Diameter | 1 3/8" |
| Impeller Material | Buna N |
| Includes | Gasket, Two Impellers |
| Inlet Dia. | 3/8" |
| Inlet Type | MGHT |
| Inlet/outlet | 3/8 ID; 3/4 OD Garden Hose |
| Intake Connection | 3/8" Mght |
| Intake Size | 3/8" |
| Intake Type | MGHT |
| Length | 6 1/8" |
| Lip Type | Radial Lip |
| Max. Feet Of Head | 36.7 ft. Of Head |
| Max. Head | 36.7 ft. |
| Max. Head (ft.) | 36.7 ft. |
| Max. Hp | 1/10 hp |
| Max. Media Temp. | 140°F |
| Max. Motor Speed | 4000 RPM |
| Max. Operating Pressure | 15.9 psi |
| Max. Pressure | 19.9 psi |
| Max. Shut Off Pressure | 15.9 psi |
| Max. Suction Lift | 7 ft. |
| Max. Suction Lift (ft.) | 7 |
| Max. Suction Lift (ft.) | 7 ft. |
| Media Intake Connection Size | 3/8" |
| Min. Fluid Temp. | 40°F |
| Min. Media Temperature | 40°F |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Horizontal |
| Motor Type | DC |
| Outlet Size | 3/4" |
| Outlet Type | Hose |
| Overall Height | 4 1/5" |
| Overall Length | 6.1" |
| Overall Width | 4" |
| Phase | Single |
| Port Connection Combined | 3/8" MGHT x 3/4" HOSE |
| Prime Type | Self-Priming |
| Priming | Self Priming |
| Pump Housing Material | Stainless Steel |
| Pumps Up To | 46 ft. |
| Pumps Up To (ft.) | 46 ft. |
| Rpm | 4000 RPM |
| Seal | Buna N Radial Lip |
| Seal Material | Buna N |
| Seal Type | Lip |
| Self Priming | Yes |
| Self-priming | Yes |
| Shaft Dia. | 1/3" |
| Shaft Material | Stainless Steel |
| Shaft Outer Diameter | 3/8" |
| Suction Lift - Maximum | 7 ft. |
| Type | Compact Flexible Impeller |
| Voltage | 12V DC |
| Wetted Material | Buna N, Stainless Steel |
| Width | 4" |
Shipping Info:
| Ship weight (kg) | 1.96 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 14.48 |
| HS code | 8413600090 |
| Country of Origin | CN |
Product Details:
- GPH of Water @ 30 Total Ft. of Head (150)
- GPH of Water @ 40 Total Ft. of Head (96)
- GPH of Water @ 5 Total Ft. of Head (258)
- Pumps Up To (Ft.) (46)
Product Variants
| Product | Model | Hp | Body Material | Voltage | Cord Length | Max. Head | Duty Cycle | Flow Rate @ 5 Ft. | Flow Rate @ 10 Ft. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2VAN7 | 1/4 hp | Plastic | 120V AC | 9 ft. | 20 ft. | Intermittent | 30 GPM | 22 GPM | €344.58 | |
 |
314-0002 | 1/2 hp | Cast Iron | 115V AC | 20 ft. | 115 ft. | Intermittent | 23 GPM | 22.5 GPM | €824.89 | |
|
5UXL8 | 1/10 hp | Brass | 12V DC | 7 ft. | 36.7 ft. | - | 3.72 GPM | 3.3 GPM | €313.93 | |
 |
4LA43 | 1 1/4 hp | Stainless Steel | 120V AC | 50 ft. | 50 ft. | Continuous | - | - | €3,415.05 | |
|
4LA45 | 7/10 hp | Stainless Steel | 120V AC | 50 ft. | 38 ft. | Intermittent | - | - | €2,447.19 | |
 |
505714 | 1/6 hp | Cast Aluminum | 230V AC | 12 ft. | 26 ft. | Continuous | 23.25 GPM | 19.85 GPM | €387.48 | |
|
505712 | 1/6 hp | Cast Aluminum | 115V AC | 25 ft. | 26 ft. | Continuous | 23.25 GPM | 19.85 GPM | €355.45 |
