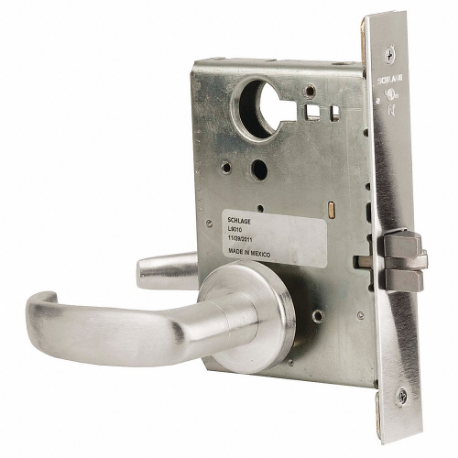

SCHLAGE L9010 17A 630 Mortise Lockset, Grade 1, L Sparta, Stainless Steel, Not Keyed
Item: CT9ZAJModel: L9010 17A 630Cross Ref: 46TN32
7 In Stock
Ships within 2 days via
13.00% off
€754.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mortise Lockset |
| Ada Compliant | No |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Passage |
| Backset | 2 3/4" |
| Bolt Type | Spring Latch |
| Electrical/mechanical | Mechanical |
| Failure Mode | Fail Secure |
| Features | Anti-Saw Pin In Bolt, Breakaway Spindle, Security Blocking Hub, Two Piece Anti-Friction Tongue In Latch Bolt |
| Finish | Satin Stainless Steel |
| Fire Rating | 3 hrs. |
| For Use With | Various Door Types |
| Function | Passage |
| General Lockset Function | Passage Lever Locksets |
| Hand Orientation | Non Handed |
| Handle Type | Lever |
| Included | Strike |
| Inside Locking Access | Not Lockable |
| Key Type | Not Keyed |
| Keyway Type | None |
| Knob/handle Material | Cast Stainless Steel, Forged Brass |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Type | Commercial |
| Lock Assembly Type | Mortise |
| Lockset Fire Rating | Not Rated |
| Lockset Function Ansi Code | F01 |
| Lockset Handle Type | Lever |
| Lockset Material | Stainless Steel |
| Lockset Style | L Sparta |
| Lockset Type | Mechanical |
| Max. Door Thickness | 1 3/4" |
| Min. Door Thickness | 1 3/8" |
| Mortise/cylindrical | Mortise |
| Mounting Style | Screw In |
| No. Of Keys | 0 |
| Outside Locking Access | Not Lockable |
| Performance Duty Rating | 1 |
| Properties | Corrosion Resistant |
| Required Door Thickness | 1 3/4" |
| Strike Dim. | 1 1/4" x 4 7/8" |
| Strike Plate Height | 4 7/8" |
| Strike Plate Lip Length | 1 3/16" |
| Strike Plate Width | 1 1/4" |
| Strike Type | Curved Lip |
| Style | L Sparta |
| Ul Fire Rating | UL10C |
| Visual Indicator Message | Locked, Unlocked |
Shipping Info:
| Ship weight (kg) | 2.61 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Door Thickness | Ansi Grade | Min. Door Thickness | Strike Plate Height | Required Door Thickness | Handle Material | Ada Compliant | Strike Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
09-138 SL1 630 P | 1 3/4" | Grade 1 | 1 3/8" | 2 1/4" | 1 3/8" to 1 3/4" | Steel | Yes | ANSI | €2,291.11 | |
 |
09-138 SL1 630 BD | 1 3/4" | Grade 1 | 1 3/8" | 2 1/4" | 1 3/8" to 1 3/4" | - | Yes | ANSI | €2,121.66 | |
|
L9465P SL1 630 | 1 3/4" | Grade 1 | 1 3/8" | 4 7/8" | 1 3/8" to 1 3/4" | Steel | Yes | Curved Lip | €2,489.05 | |
|
L9080J SL1 630 | 1 3/4" | Grade 1 | 1 3/8" | 4 7/8" | 1 3/8" to 1 3/4" | Steel | Yes | Curved Lip | €2,287.89 | |
 |
L9010 SL1 630 | 1 3/4" | Grade 1 | 1 3/8" | 4 7/8" | 1 3/8" to 1 3/4" | Steel | Yes | Curved Lip | €2,194.99 | |
|
L9070J SL1 630 | 1 3/4" | Grade 1 | 1 3/8" | 4 7/8" | 1 3/8" to 1 3/4" | Steel | Yes | Curved Lip | €2,387.22 | |
|
L9465BD SL1 630 | 1 3/4" | Grade 1 | 1 3/8" | 4 7/8" | 1 3/8" to 1 3/4" | Steel | Yes | Curved Lip | €2,473.36 |
