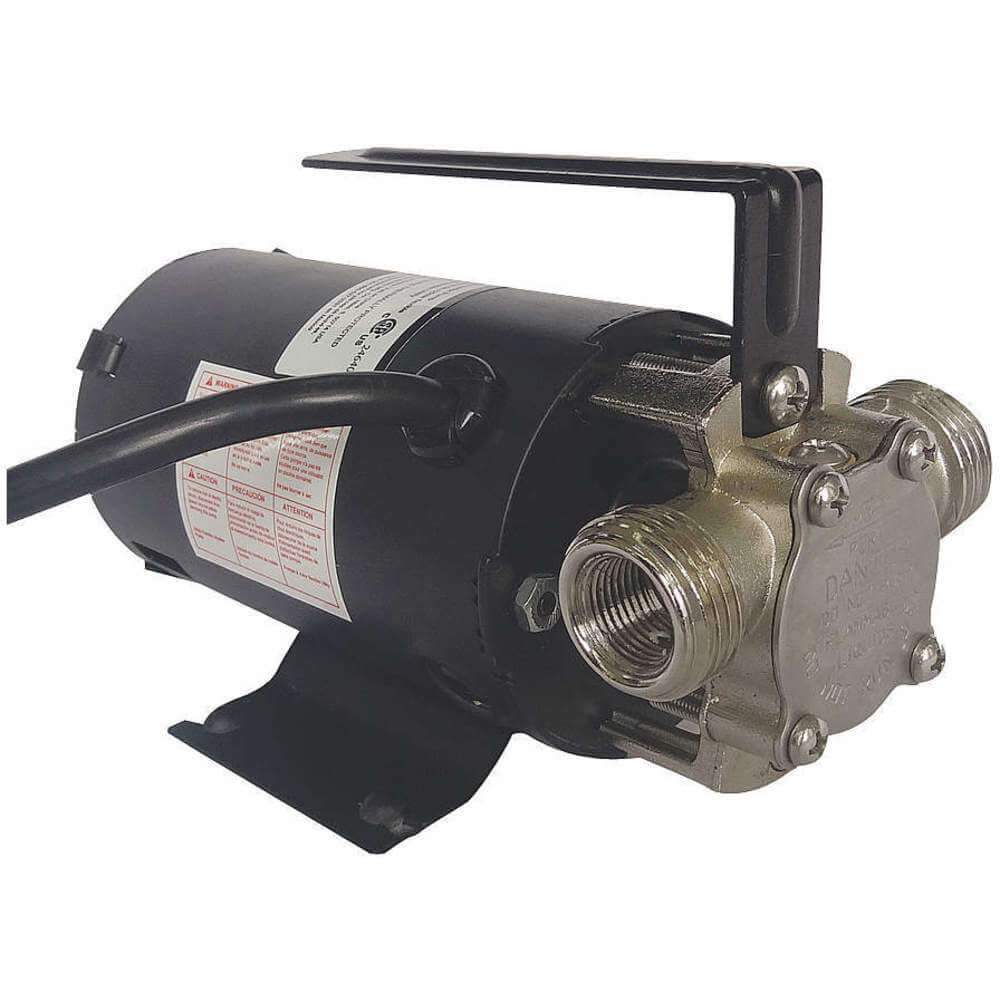

DAYTON 5UXL7 Utility Pump 115vac
Item: AE6TKCModel: 5UXL7
7 In Stock
Ships within 2 days via
10.00% off
€295.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Utility Pump |
| Amps | 1.6A |
| Bearing Material | Stainless Steel |
| Bearing Type | Ball |
| Bearings | Ball |
| Cord | 6 ft. |
| Cord Length | 6 ft. |
| Discharge Connection | 3/4" |
| Discharge Connection Size | 3/4" |
| Discharge Connection Type | Hose |
| Discharge Type | Hose |
| Duty | Intermittent |
| Duty Cycle | Intermittent |
| Finish | Nickel Plated |
| Flow Rate @ 1 Ft Of Head - Maximum | 5.7 GPM |
| Flow Rate @ 1 Ft. | 5.7 GPM |
| Flow Rate @ 10 Ft Of Head - Maximum | 4.4 GPM |
| Flow Rate @ 10 Ft. | 4.43 GPM |
| Flow Rate @ 20 Ft Of Head - Maximum | 3.1 GPM |
| Flow Rate @ 20 Ft. | 3.1 GPM |
| Flow Rate @ 30 Ft Of Head - Maximum | 1.4 GPM |
| Flow Rate @ 30 Ft. | 1.4 GPM |
| Flow Rate @ 40 Ft. | 90 GPH |
| Flow Rate @ 5 Ft. | 5.2 GPM |
| For Media Type | Water |
| Frequency | 60 Hz |
| Gph Of Water @ 1 Ft. Of Head | 360 GPH |
| Gph Of Water @ 1 Ft. Of Head | 360 |
| Gph Of Water @ 10 Ft. Of Head | 300 GPH |
| Gph Of Water @ 10 Ft. Of Head | 300 |
| Gph Of Water @ 20 Ft. Of Head | 270 |
| Gph Of Water @ 20 Ft. Of Head | 270 GPH |
| Gph Of Water @ 30 Total Ft. Of Head | 198 GPH |
| Gph Of Water @ 40 Total Ft. Of Head | 90 GPH |
| Gph Of Water @ 5 Total Ft. Of Head | 342 GPH |
| Gpm Of Water @ 30 Ft. Of Head | 2.3 GPM |
| Gpm Of Water @ 5 Ft. Of Head | 5.2 GPM |
| Height | 4 1/2" |
| Horsepower | 1/10 Hp |
| Housing Material | Brass |
| Hp | 1/10 hp |
| Impeller | Buna-N |
| Impeller Diameter | 1 3/8" |
| Impeller Material | Buna N |
| Includes | Gasket, Two Impellers |
| Inlet Size | 3/8" |
| Inlet Type | MGHT |
| Inlet/outlet | 3/8 ID; 3/4 OD Garden Hose |
| Intake Connection | 3/8" Mght |
| Intake Size | 3/8" |
| Intake Type | MGHT |
| Length | 6 3/4" |
| Lip Type | Radial Lip |
| Max. Feet Of Head | 37.3 ft. Of Head |
| Max. Head | 37.3 ft. |
| Max. Head (ft.) | 37.3 ft. |
| Max. Hp | 1/10 hp |
| Max. Media Temp. | 140°F |
| Max. Motor Speed | 4000 RPM |
| Max. Operating Pressure | 16.2 psi |
| Max. Pressure | 16.2 psi |
| Max. Shut Off Pressure | 16.2 psi |
| Max. Suction Lift | 7 ft. |
| Max. Suction Lift (ft.) | 7 ft. |
| Max. Suction Lift (ft.) | 7 |
| Media Intake Connection Size | 3/8" |
| Min. Fluid Temp. | 40°F |
| Min. Media Temp. | 40°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Horizontal |
| Motor Type | Universal AC/DC |
| Outlet Size | 3/4" |
| Outlet Type | Hose |
| Overall Height | 4 1/2" |
| Overall Length | 6 4/5" |
| Overall Width | 4" |
| Phase | Single |
| Port Connection Combined | 3/8" MGHT x 3/4" HOSE |
| Prime Type | Self-Priming |
| Priming | Self Priming |
| Pump Housing Material | Brass |
| Pumps Up To | 48.28 ft. |
| Pumps Up To (ft.) | 48.3 ft. |
| Rpm | 4000 RPM |
| Seal Material | Buna N |
| Seal Type | Lip |
| Self Priming | Yes |
| Self-priming | Yes |
| Shaft Dia. | 1/3" |
| Shaft Material | Stainless Steel |
| Shaft Outer Diameter | 3/8" |
| Suction Lift - Maximum | 7 ft. |
| Thermal Protection | Automatic |
| Type | Compact Flexible Impeller |
| Voltage | 115V AC |
| Wetted Material | Brass, Buna N |
| Width | 4" |
Shipping Info:
| Ship weight (kg) | 2.23 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 17.78 |
| HS code | 8413600090 |
| Country of Origin | CN |
Product Details:
- GPH of Water @ 30 Total Ft. of Head (198)
- GPH of Water @ 40 Total Ft. of Head (90)
- GPH of Water @ 5 Total Ft. of Head (342)
- Pumps Up To (Ft.) (48.3)
Product Variants
| Product | Model | Housing Material | Max. Pressure | Rpm | Wetted Material | Pump Housing Material | Max. Motor Speed | Outlet Size | Max. Head | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5UXL9 | Stainless Steel | 20.9 psi | 5000 RPM | Buna N, Stainless Steel | Stainless Steel | 5000 RPM | 3/4" | 37.3 ft. | €343.56 |
