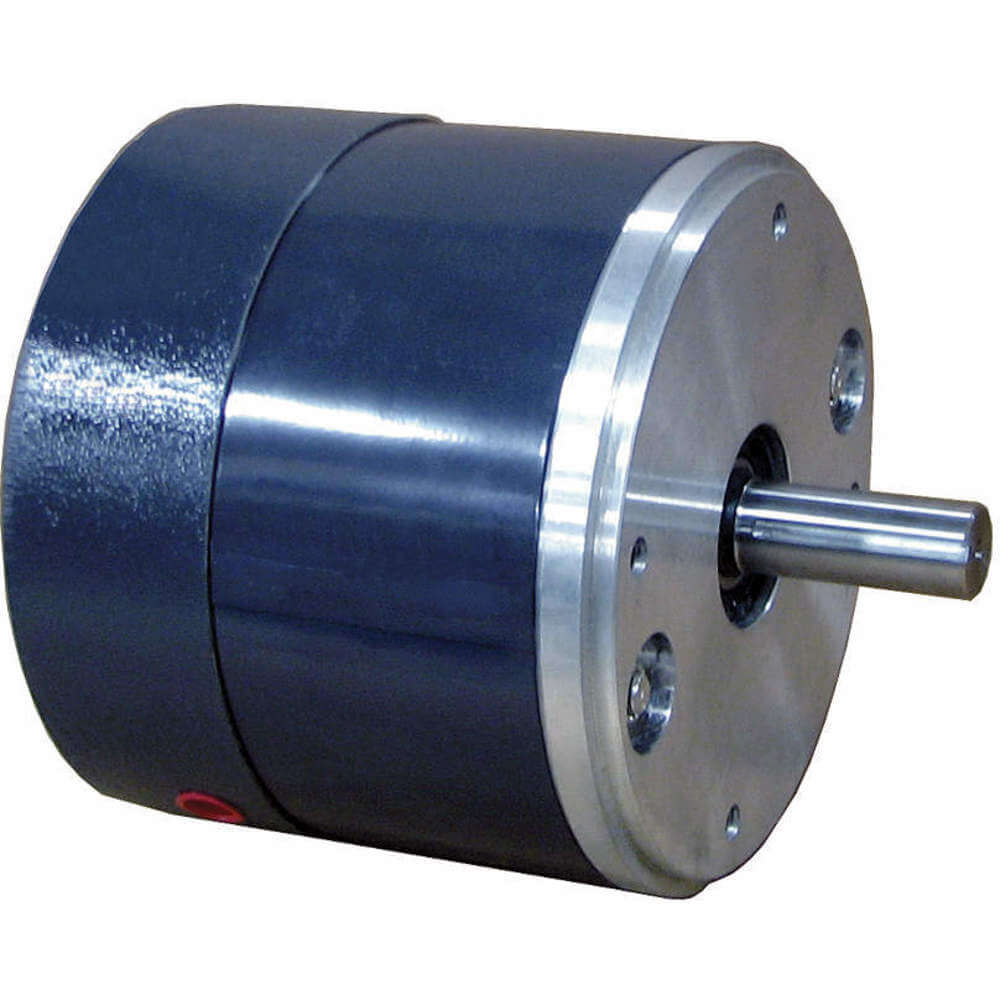

DAYTON 5URC2 Brake Magnetic Torque 15 Ft-lb
Get it by Friday, Aug 14
5.00% off
€4,591.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake |
| Ambient (c) | 40 Degrees |
| Amps Holding | 0.6/0.3 |
| Application | Brake Attaches To The Accessory End Of A Motor To Stop And Hold The Motor Shaft |
| Brake Mouting Position | Horizontal |
| Clutch/brake Type | End Mount Disc |
| Coil Voltage | 115/208-230V AC |
| Color | Red |
| Continuous Duty | Yes |
| Converts | Motor To A Brake Motor |
| Dia. | 8.54" |
| Duty Cycle | Continuous |
| Enclosure Type | Dripproof |
| Frequency | 50/60 Hz |
| Function | Stops And Holds A Motor Shaft From Rotating |
| Holding Amps | 0.3/0.2A |
| Housing Material Finish | Red Primer |
| Hp @ Speed | 1 hp @ 3450 RPM, 1/2 hp @ 1725 RPM |
| Included | Brake And Instruction Manual |
| Inrush Amps | 5.3/2.7 |
| Inrush Amps | 6.7/3.4A |
| Keyseat Size | 1/4" x 1/8" |
| Keyseat Size (in.) | 1/4 x 1/8 |
| Keyway Depth | 3/32" |
| Keyway Width | 3/16" |
| Length | 8 1/8" |
| Lever Release | Manual |
| Lever Type | Manual Release |
| Material | Aluminum |
| Max. Ambient Temp. | 40°C |
| Max. Bore | 1 1/8" |
| Max. Hp @ 1725 Rpm | 3 |
| Max. Hp @ 1725 Rpm | 3 hp |
| Max. Hp @ 3450 Rpm | 5 |
| Max. Hp @ 3450 Rpm | 5 hp |
| Max. Speed | 3600 RPM |
| Mounting Location | 56C Motor Flange |
| Mounting Orientation | Horizontal |
| Mounts On | 182/184TC Motor Flange |
| Nema/iec Frame | 182/184TC |
| Outside Dia. | 8 1/2" , 8.5" |
| Overall Length | 4" |
| Overall Width | Not Applicable |
| Phase | 1 |
| Power Lead Length | 18" |
| Power Lead Length (in.) | 18 |
| Series | 74 Series |
| Service Factor | 1.4 |
| Shaft Dia. | 5/8" |
| Static Torque | 15 Ft.-Lb. |
| Static Torque | 15 lbs.-ft. |
| Type | Double C-Face Magnetic Disc |
| Voltage @ 50 Hz | 174-190/380 |
| Voltage @ 60 Hz | 208-230/460V |
Shipping Info:
| Ship weight (kg) | 20.52 |
| Ship height (cm) | 31.5 |
| Ship length (cm) | 28.45 |
| Ship width (cm) | 29.21 |
| HS code | 8505200000 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage @ 60 Hz | Dia. | Series | Static Torque | Type | Coil Voltage | Frequency | Max. Hp @ 1725 Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5URA8 | 115/208-230V | 8 1/2" | 70 Series | 15 lbs.-ft. | Double C-Face Magnetic Disc | 115/208-230V AC | 50/60 Hz | 3 hp | €4,965.58 |
