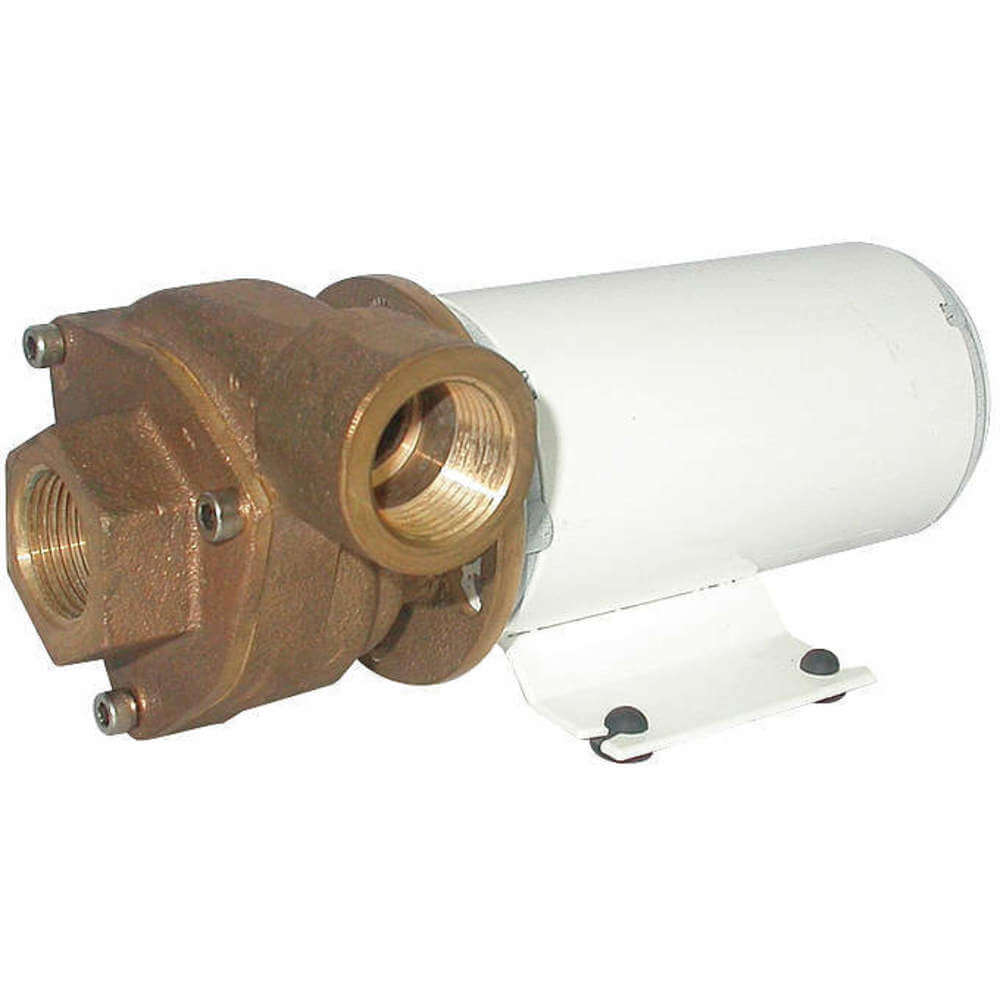

DAYTON 5PXX4 Centrifugal Pump 12 Vdc 8.5 Amp
Item: AE6CZMModel: 5PXX4
7 In Stock
Ships within 2 days via
10.00% off
€478.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 8.5A |
| Bearing Type | Ball |
| Best Efficiency Flow | 11 GPM |
| Best Efficiency Flow Range @ Head | 3 to 16 GPM @ 20 to 10 ft. |
| Best Efficiency Head | 15 ft. |
| Compatible Discharge Pipe Size | 3/4" |
| Compatible Intake Pipe Size | 3/4" |
| Compatible With Media Type | Non Abrasive Liquids, Non Flammable Liquids |
| Connection Type | NPT |
| Discharge Rotation | 180° Increments |
| Discharge Type | NPT |
| Duty | Intermittent |
| Duty Cycle | Intermittent |
| Flow Rate @ 1 Ft Of Head (maximum) | 12.6 GPM |
| Flow Rate @ 10 Ft Of Head (maximum) | 8 GPM |
| Flow Rate @ 100 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 120 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 140 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 15 Ft Of Head (maximum) | 4 GPM |
| Flow Rate @ 160 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 180 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 20 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 200 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 220 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 240 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 260 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 280 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 30 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 300 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 40 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 5 Ft Of Head (maximum) | 11 GPM |
| Flow Rate @ 50 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 60 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 70 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 80 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 90 Ft Of Head (maximum) | Not Applicable |
| For Media Type | Non-Abrasive Liquids, Non-Flammable Liquids |
| Gph Of Water @ 5 Ft. Of Head | 1080 GPH |
| Gpm @ 1 Ft. Of Head | 20.5 |
| Gpm Of Water @ 0 Ft. Of Head | 21 |
| Gpm Of Water @ 2 Ft. Of Head | 19.8 |
| Gpm Of Water @ 3 Ft. Of Head | 19 |
| Height | 3 2/7" |
| Housing Material | Brass |
| Hp | 1/8 hp |
| Hp - Pumps | 1/8 hp |
| Impeller Material | Brass |
| Impeller Type | Semi Open |
| Includes | Manual |
| Inlet Pressure | 6.5 psi |
| Length | 7.1" |
| Max. Case Pressure | 200 psi |
| Max. Feet Of Head | 17 ft. |
| Max. Flow Rate | 13 GPM |
| Max. Flow Rate @ 0 Ft. | 21 GPM |
| Max. Flow Rate @ 1 Ft. | 12.6 GPM |
| Max. Flow Rate @ 10 Ft. | 16 GPM |
| Max. Flow Rate @ 15 Ft. | 4 GPM |
| Max. Flow Rate @ 2 Ft. | 19.8 GPM |
| Max. Flow Rate @ 20 Ft. | 3 GPM |
| Max. Flow Rate @ 3 Ft. | 19 GPM |
| Max. Flow Rate @ 5 Ft. | 1080 GPH |
| Max. Head | 17 ft. |
| Max. Liquid Temp. | 180°F |
| Max. Operating Pressure | 9.5 psi |
| Max. Solid Dia. | 1/8" |
| Max. Specific Gravity | 1 |
| Media Temperature (maximum) | 180°F |
| Media Temperature (minimum) | 40°F |
| Media Type | Non Abrasive Liquids, Non Flammable Liquids |
| Min. Fluid Temp. | 40°F |
| Motor Ambient Temp. | 104°F |
| Motor Ambient Temperature (maximum) | 104°F |
| Motor Enclosure Design | Totally Enclosed |
| Motor Type | DC |
| Outlet Type | NPT |
| Overall Height | 3.3" |
| Overall Length | 7.1" |
| Overall Width | 4.3" |
| Port Rotation | 180 Deg. Increments |
| Pump Housing Material | Brass |
| Pumping Application | Condensate Return, Filtration, Fluid Transfer, Marine Applications And Irrigation |
| Rpm | 5000 RPM |
| Rpm (maximum) | 5000 RPM |
| Screw Material | Stainless Steel |
| Seal Material | Carbon, Ceramic, Viton |
| Seal Type | Mechanical |
| Service Factor | 1.16 |
| Shaft Material | Stainless Steel |
| Shut Off Pressure (maximum) | 10 psi |
| Solid Diameter (maximum) | 0.13" |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Submersible | No |
| Voltage | 12V DC |
| Wetted Material | Brass, Buna N, Carbon Ceramic, Stainless Steel, Viton |
| Wetted Materials | Brass, Buna N, Carbon, Ceramic, Stainless Steel, Viton |
| Width | 4 2/7" |
Shipping Info:
| Ship weight (kg) | 2.52 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 18.03 |
| Ship width (cm) | 10.92 |
| HS code | 8413702005 |
| Country of Origin | CN |
Product Details:
- GPM @ 7 Feet of Head (17.5)
Product Variants
| Product | Model | Voltage | Hp | Housing Material | Compatible Discharge Pipe Size | Motor Enclosure Design | Compatible Intake Pipe Size | Phase | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4BF1K1F0 | 230V AC | 7 1/2 hp | Cast Iron | 2 1/2" | Open Dripproof | 3" | 1 | NPT | €5,609.84 | |
|
4BF1J1H0 | 208-230V AC | 5 hp | Cast Iron | 2 1/2" | Open Dripproof | 3" | 1 | NPT | €4,765.24 | |
|
3BF1J1A0 | 230V AC | 5 hp | Cast Iron | 1 1/2" | Open Dripproof | 2" | 1 | NPT | €4,644.83 | |
|
3BF1H1AOH | 115/208-230V AC | 3 hp | Cast Iron | 1 1/2" | Open Dripproof | 2" | 1 | NPT | €3,819.30 | |
 |
2BF12034 | 208-230/460V AC | 2 hp | Cast Iron | 1 1/4" | - | 1 1/2" | 3 | NPT | €2,136.17 | |
|
2BF12012 | 115/230V AC | 2 hp | Cast Iron | 1 1/4" | Open Dripproof | 1 1/2" | 1 | NPT | €2,185.07 | |
 |
1BF22012 | 115/230V AC | 2 hp | Cast Iron | 1" | Totally Enclosed Fan Cooled | 1 1/4" | 1 | NPT | €2,458.66 |
