DAYTON 5K043 Farm Duty Motor Split Phase Tenv 1/3hp 1725rpm
Get it by Friday, Dec 26
10.00% off
€380.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Auger Drive Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Bearings | Ball |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 66.8% |
| Finish | Enamel |
| Frame | 56YZ |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.2/2.6A |
| Hp | 1/3 hp |
| Includes | Gasketed Conduit Box |
| Ins. Class | Class B |
| Length Less Shaft | 8 1/4" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Auger |
| Motor Thermal Protection | Manual |
| Motor Type | Split Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 66.8% |
| Number Of Speeds | 1 |
| Overall Length | 10" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 3/4" |
| Thermal Protection | Manual |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 24.38 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Mounting Type | Mounting Type | Voltage | Hp | Nameplate Rpm | Motor Design | Frame | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

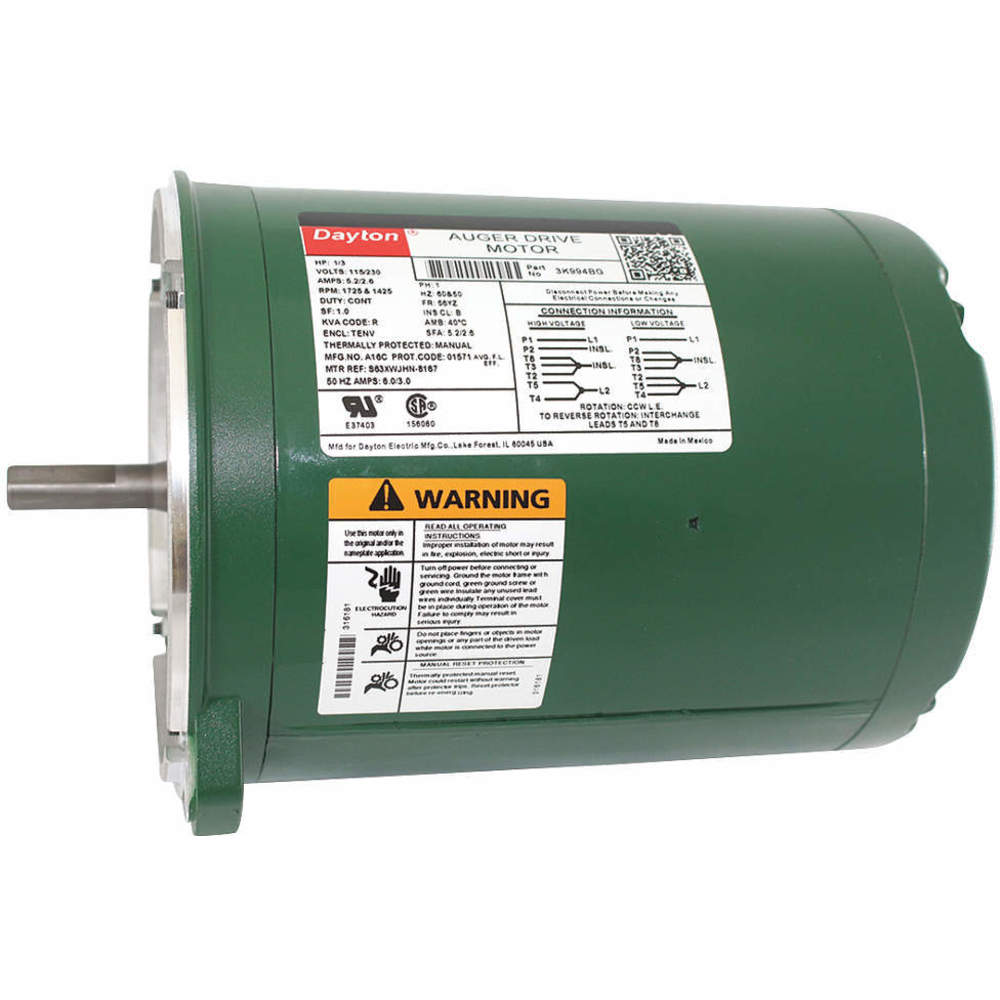

3K994 | Face | Flanged | 115/230V AC | 1/3 hp | 1725 RPM | Split-Phase | 56YZ | Manual | €409.56 |
