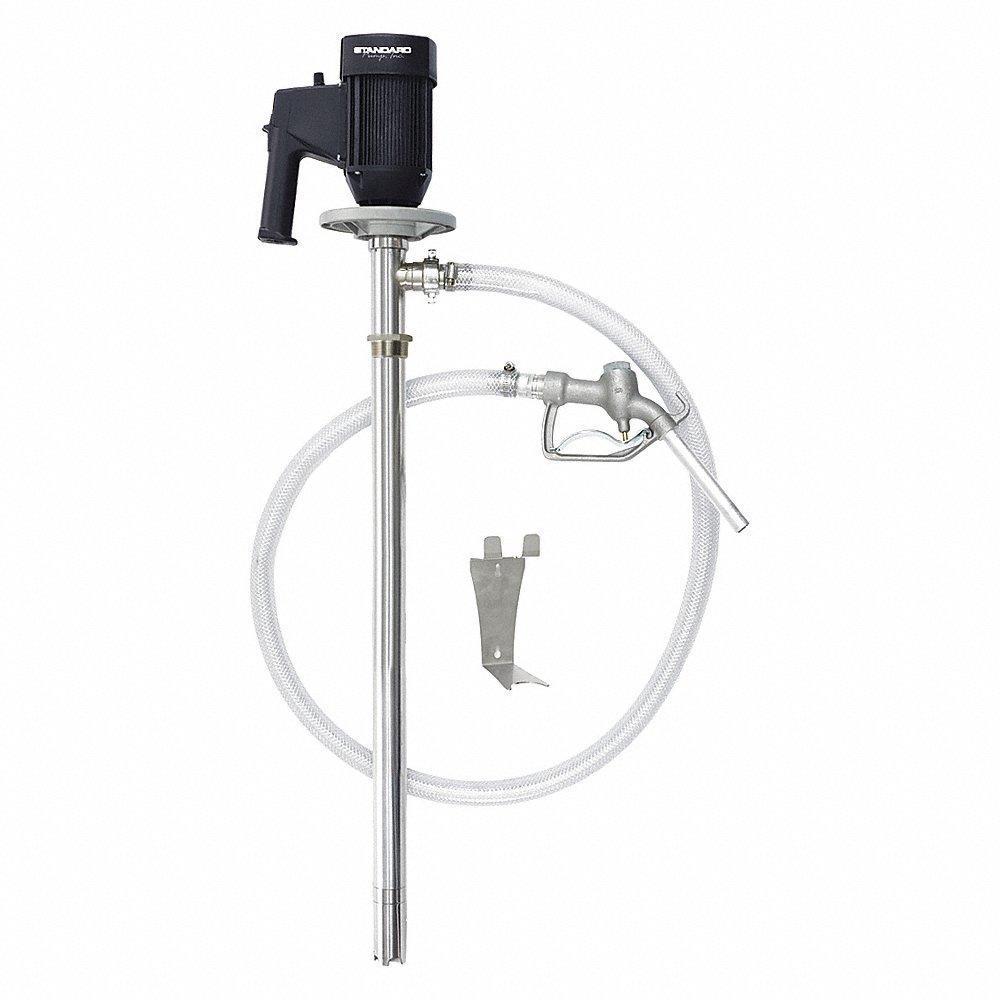

DAYTON 53RU55 Electric Operated Drum Pump, 1 1/10 HP, 55 Gal., 220V AC
Get it by Tuesday, Dec 23
10.00% off
€2,315.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Operated Drum Pump |
| Adapter Connection Type | MNPT |
| Adapter Material | Stainless Steel |
| Adapter Material Grade | Grade 304 |
| Bung Connection Dia. | 2" |
| Bung Connection Size | 2" |
| Clamp Style | Worm |
| Compatible Chemicals | Antifreeze (Coolant), Deionized Water, Ethylene Glycol, Fresh Water, Glycerin, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil, Salt Water, Sodium Bicarbonate (10%) |
| Cord Length | 16 ft. |
| Def Compatible | No |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Length | 6 ft. |
| Discharge Tube Outlet I.d. | 1" |
| Discharge Tube Outlet O.d. | 1 1/2" |
| Display Qty | 1 |
| Display Sell Uom | EA |
| Duty | Intermittent |
| Duty Cycle | Intermittent |
| Features | Stainless Steel Hose Clamps |
| Food Grade | No |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Media Type | Antifreeze, Ethylene Glycol, Glycerin, Hydraulic Oil, Motor Oil, Sodium Bicarbonate, Water |
| For Use With | 9761 |
| Frequency | 50/60 Hz |
| Full Load Amps | 5A |
| Hose Cover Material | PVC |
| Hose I.d. | 1" |
| Hose Inside Dia. | 1" |
| Hose Length | 72" |
| Hose Outside Dia. | 1 1/4" |
| Hose Tube Material | PVC |
| Housing Material | Aluminum |
| Housing Material - Pumps | Aluminum |
| Includes | Adapter, Hose, Motor, Nozzle With 3/4 In Spout |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | Yes |
| Includes Nozzle | Yes |
| Includes Spout | No |
| Includes Suction Tube | Yes |
| Length | 51" |
| Max. Flow Rate | 22 GPM |
| Max. Fluid Temp. | 175°F |
| Max. Head | 16 ft. |
| Max. Head - Pumps | 36 ft. |
| Max. Head Pressure | 16 psi |
| Max. Oil Flow | 7 GPM |
| Max. Outlet Pressure | 16 psi |
| Max. Viscosity | 1500 cPS |
| Media Type | Antifreeze, Ethylene Glycol, Glycerin, Hydraulic Oil, Motor Oil, Sodium Bicarbonate, Water |
| Metered | No |
| Motor Enclosure | Odp |
| Motor Hp | 1 1/10 hp |
| Motor Type | Electric AC Brush |
| Noise Level | 88 dB |
| Nominal Voltage | 220V AC |
| Nozzle Material | Aluminum |
| Nozzle Operation | Manual |
| Overall Length | 51" |
| Package Type | Unmetered Dispensing With Manual Shut Off |
| Phase | 1 |
| Plug Type | CEE 7/7 |
| Power Source | Electric |
| Pump Package Type | Unmetered Dispensing With Manual Shut-Off |
| Runs Dry | Yes |
| Seal Material | Sealless |
| Self Priming | Yes |
| Self-priming | Yes |
| Spout Connection Type | Hose Barb |
| Suction Tube I.d. | 1 3/8" |
| Suction Tube Inside Dia. | 1 3/8" |
| Suction Tube Length | 39" |
| Suction Tube Material | Aluminum |
| Suction Tube O.d. | 1 5/8" |
| Suction Tube Outside Dia. | 1 5/8" |
| Thermal Protection | Yes |
| Variable Speed | Yes |
| Voltage Rating | 230V AC |
| Wetted Material | Aluminum, Buna, Carbon Graphite, PTFE, PVC, Stainless Steel |
| Wetted Materials | Aluminum, Buna, Carbon Graphite, PTFE, PVC, SS316 |
Shipping Info:
| Ship weight (kg) | 10.64 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 129.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
